Chrosziel

Chrosziel FS7 / FS7MKII Light Weight Support

Item Code: ALF/401-FS7

Light Weight Support for Sony PXW-FS7 & Sony PXW-FS7 MKII

RRP: 0   Save:

For purchasing information

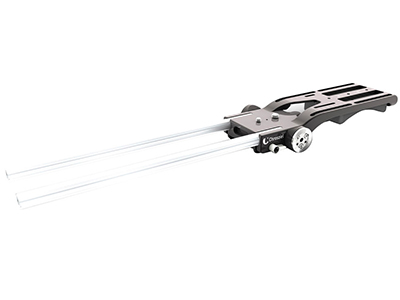

The 401-FS7 Lightweight Shoulder Support for Sony FS7 from Chrosziel is a slim baseplate, shoulder mount, and rod support system for the Sony PXW-FS7. It features an ergonomic shoulder pad, which is adjustable forwards and backwards for personalized comfort, and a V-lock mounting interface for attachment to optional tripod plates, such as the Sony VCT-14. ARRI-compatible rosettes on each side of the Lightweight Support are provided for attaching the FS7's right handle and an optional left-sided rosette handle or accessory. Additionally, there are LWS 15mm rod ports that accept a pair of included 8-inch long rods, which are useful for attaching accessories such as a follow focus or matte box. For rear 15mm rod support, a separately available rear rod clamp can be added.

Key Features

  • Can be combined with Chrosziel 19 mm DigiCine Bridge Plate 401-F235*
  • Slideable Shoulderpad, robust and sturdy
  • LWS safely screwed on the camera base at several points for stable fixing
  • Rod clamping for Ø15 mm rods, 205 mm long, with thread insert for extention rods
  • Retrofit rear rod clamping 401-FS7-01
  • Hirth rosettes for combination with Chrosziel Leather Handgrips 403-30
  • Optional use of Cheeseplate
  • Perfectly balances the camera on the shoulder
  • Light-weight and easy to use
*requires accessories kit 401-FS7-03 (Tripod adapter plate for LWS 401-FS7)

Specifications

Dimensions (L x W x H) 26.5 cm (43 cm with rods) x 11.5 cm x 4 cm
Weight approx. 589g (without rods)
approx. 776g (with rods and tripod adapter plate)
