AJA

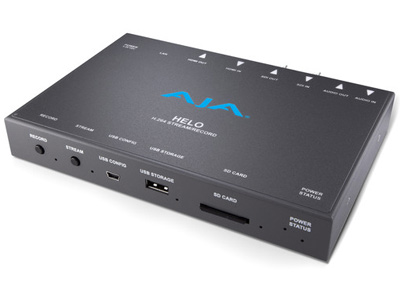

AJA Helo H264 Streamer-Recorder

Item Code: BLO/AJA-HELO

HELO brings both SDI and HDMI I/O into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record beautiful H.264 files to either SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based storage simultaneously.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,990.00
    inc. GST

Found this item cheaper elsewhere? Let us know

HELO is AJA’s new H.264 streaming and recording stand-alone appliance.
HELO brings both SDI and HDMI I/O into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record beautiful H.264 files to either SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based storage simultaneously.

Portable and Packed to Go

HELO’s small and robust form factor is essential for your busy schedule. Live events, webcasts, production and post locations vary and you need a device that can take the heat. HELO is designed to travel well, fit wherever needed and continuously deliver; all with full size connectivity.

HELO offers both 3G-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in beautiful and efficient H.264.

Stream out to your CDN and record to SD, SDHC or SDXC cards, USB storage or NFS or CIFS mounted network based shares simultaneously.

Encode

Your goal is efficiency with beautiful results.

HELO encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files. From tablets to smartphones, desktops to Smart TVs, no translation necessary.

2-Channel stereo audio can be encoded at up to 24-bit 48kHz at data rates ranging from 32kbps to 256kps in MPEG-4 AAC-LC, allowing you to make the most appropriate choice for your project's needs.

Stream

Streaming can be complex. HELO makes it simple.

A USB connection and robust web browser based UI allows you to setup and configure your CDN connection before you even arrive at your event. Once there, simply press the Stream button and deliver your project across HELO’s Ethernet connection, which allows support for RTP/RTSP, RTMP as well as Unicast.

Record

Live means Now. Live means Pressure.

HELO offers a dedicated Record button right on the front of HELO’s small and mobile interface for immediate recording. It also provides simultaneous recording while streaming and with v1.1 firmware, redundant recording of one file to two media destinations simultaneously. This enables you to hand a client a copy of the event right after recording ends, while maintaining a master in house.



Mass Media

Cost effective media choices.

HELO’s H.264 based encoding not only ensures beautiful, efficiently sized files, it means your recording medium choices are wide open. Utilize USB thumb sticks, drives and RAIDs, common SD, SDHC or SDXC media or network shares across a switch. Pick to suit your project.

Calendar Integration

HELO opens up a world of new streaming workflows for AV, live events, houses of worship, webcasting, corporate communications, production and post. HELO firmware v1.1 offers a scheduler that triggers pre-planned start and stop of recording and streaming media simplifying projects that require definitive schedules. The schedule may be programmed locally through HELO’s web UI, by importing ICS files or by linking to external calendar providers such as Google Calendar.



Conveniently Connected

Workflow

Web Server Built-In

You serve the web. HELO serves you.

AJA eMini-Setup and HELO’s easy to use web browser interface make HELO simple to setup, configure and update firmware at any time. You can connect to HELO either via its direct USB port to set static/dynamic IP addresses though AJA eMini-Setup software or over the network using HELO’s web server generated UI.

It's a Fast World. Capture It.

1080p 60 is the de facto standard today for delivery of sports, live events, crystal clear video conferencing, webinars and games capture. Simply connect any video device to HELO via 3G-SDI or HDMI and record H.264 files and stream as needed. HELO is the perfect compliment to any professional workflow, easily connecting to a range of HD capable devices.

Specifications

Video Formats2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080i 25, 29.97, 30 HD: 720p 50, 59.94, 60
SD: 525i, 625i
(2K inputs are center cut to 1080p and are only supported on SDI input)
Video Codec SupportH.264/MPEG-4 Encoder
Video Parameters100 KB/s to 20 MB/s (TBD) streamed output
100 KB/s to 20 MB/s (TBD) recorded output
Up to 1080p60
Supports Baseline, Main and High
2.0, 3.0, 3.1, 4.0 and 4.1 level support
Video Input Digital1 x 3G-SDI, SMPTE-259/292/296/424, 10-bit
Single Link 4:2:2, 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Video Output Digital1 x 3G-SDI, SMPTE-292/296/424, 10-bit
Single Link 4:2:2 or 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Audio Encoding32 KB/s to 256 KB/s
32, 44.1 and 48 kHz 2-channel stereo
MPEG-4 AAC-LC
Audio Input Digital2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Input Analog2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)
Audio Output Digital2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Output Analog2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)
ProtocolsRTMP, RTSP/RTP, Unicast and Multi Unicast (3 to 10 Clients)
Storage1 x USB 2.0 slot, (Can be NTFS 3.1 or FAT32)
1 x SD Card slot, SD and SDHC cards (NTFS 3.1)
Mounted Network Share
User InterfaceStream Button
Record Button
Web UI
Simple Web Configuration via AJA eMini-Setup (OS X and PC)
Power100 to 240 V, 50/60 Hz Universal Input, +5-20 VDC 13 W Maximum
EnvironmentOperating Temperature: 32 to 104°F (0 to 40°C)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: <10,000' (3,000 m)
Safe Storage Temperature (Power OFF): -40 to 140°F (-40 to 60°C)
Dimensions (W x D x H)7.0 x 4.7 x 1.0" (18 x 14 x 26 cm)
Weight0.8 lb (0.4 kg)
Packaging Info
Package Weight2.25 lb
Box Dimensions (LxWxH)10.2 x 6.4 x 5.1"
