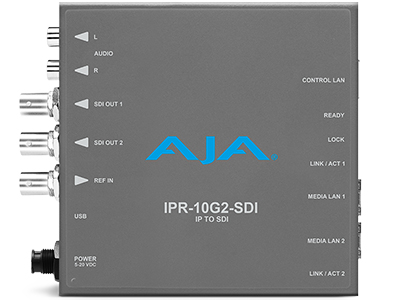

http://www.lemac.com.au/site/DefaultSite/filesystem/images/AJA/IPR-10G2-SDI.jpg IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI ouputs.

SEARCH SHOP

AJA

AJA 10GigE IP to HDMI to 3G-SDI Converter

Item Code: BLO/AJA-IPR-10G2-SDI

IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI ouputs.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,990.00
    inc. GST

Found this item cheaper elsewhere? Let us know

IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI ouputs.

It receives SMPTE 2110 over 10 GigE connectivity, formats the data for output over 3G-SDI, and the associated audio from the video stream is extracted, synchronized, and embedded into the 3G-SDI signal and also output on an analog RCA interface.

The IPR-10G2-SDI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.

The IPR-10G2-SDI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.

Monitor ST 2110 Video and Audio from anywhere on the Network.

The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and connect to 3G-SDI simultaneously.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.

The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for output over 3G-SDI.

The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.

User Control

IPR-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.

  • 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
  • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1x USB 2.0 Mini-B (IEC 62680-1) connector
  • AJA eMini-Setup of network parameters

Workflow

IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI units with AJA KONA IP (I/O card for use in desktop workstations) to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

Features

  • SMPTE ST 2110 audio, video receiver
  • Supports HD up to 60p, YCbCr 4:2:2
  • Rugged, fanless design
  • 2x 10 GigESFP+ cages for media LAN (providing support for "hitless switching) with status light
  • 1x 1 GigERJ45 socket for control LAN with status light
  • 2x 3G-SDI Outputs
  • Full 10-bit pixel processing pipeline
  • Embedded SDI audio output (up to eight channels)
  • 2x RCA analog audio output
  • 1x BNC Reference In
  • 1x mini-USB port for initial network configuration with AJA eMini-Setup software
  • Complete control interface on any web browser from a built-in webserver
  • Customizable control with AJA REST API
  • 5-year international warranty and support
