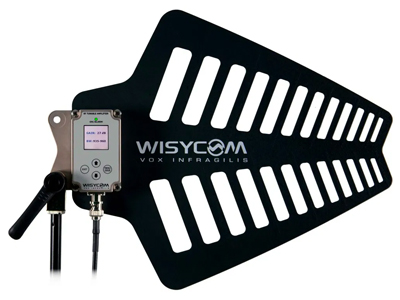

Wisycom LFA Wideband Active Antenna

Code: RAY/LFA

BNC Version

$2,200.00

The Wisycom LFA is a directional antenna with a unique design to achieve an ultra-wideband of 410-1300 MHz, a compact and rugged form factor and a reduce wind resistance.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The Wisycom LFA is a directional antenna with a unique design to achieve an ultra-wideband of 410-1300 MHz, a compact and rugged form factor and a reduce wind resistance. LFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable.

Using the latest Wisycom filter technology, LFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.

Features

  • Huge reception band: 410-1300 MHz
  • Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
  • RF gain from -12 to +27 dBu (1 dB step)
  • Easy configuration thru a TFT display
  • Tunable filter for interference control
  • Antenna off for RF zone disabling
  • Fixed band saw filter
  • Skeletal design for low wind loading
  • 3 High Pass & 3 Low Pass filters
  • Waterproof with gasket sealing
Frequency ranges 410 ÷ 1300 MHz
Filter range • Tunable: 410 ÷ 730 MHz (UHF), 40MHz of BW
• Fixed: 940 ÷ 960 MHz or 1240 ÷ 1260MHz
• Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option)
Polarization Vertical
Radiation Directional
Connector N or BNC
Impedance 50 Ω
Booster Gain: -12 ÷ 27 dB typical (1 dB step selection)
0.8 dB attenuation (bypassed)
Booster Gain flatness ± 1 dB, in the whole working window
Display TFT – transflective (176 x 176 pixels, RGB)
Power supply +12 V, 100mA
Operating voltage range 9.5 ÷ 16 Vdc
Material epoxy fiberglass with skeletal design
Finishing black matte textured weather resistance coating
Mounting 5/8” with worth or 3/8” with adapter
Dimensions 276 x 336 x 61 mm (HxWxD)
Weight 550 g
