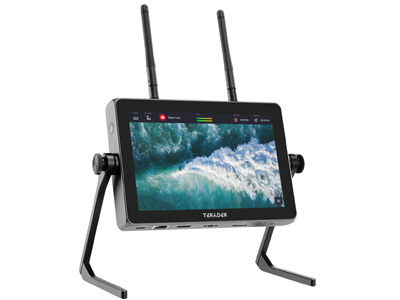

Teradek Wave 5-in-1 Smart Streaming Monitor

Code: KAY/53.10-0264

Reinvent your live streaming workflow with Teradek Wave: the only streaming monitor that handles encoding, smart event creation, network bonding, multistreaming, and recording – all on a 7” daylight-viewable touchscreen display.

For purchasing information

Enquire Now

What's In The Box?

  • 1 x 7" Touchscreen Monitor
  • 1 x 7” Screen Protector
  • 1 x Tabletop Stand
  • 1 x Thin Ethernet cable
  • 1 x Thin HDMI cable
  • 1 x 7" Neoprene monitor sleeve"
  • 1 x Sony L Series Battery Bracket plate
  • 1 x PSU 30W USB-C Power Adapter
  • 1 x WiFi antennas
  • 1 x Quickstart Guide

Stream in one fluid motion

Streaming with Wave is frictionless. Ditch the extra screen with a dual-purpose hardware encoder and live streaming monitor. Prep multiple events ahead of time using Wave’s easy-to-use project workflow. Avoid mid-stream drops by bonding several internet connections together.1 Send your live streams to multiple destinations at once.1 And do it on-the-go with the only device that can do it all reliably.

Stream-lined

7 inches for monitoring. 1080p60 resolution for encoding. Countless reasons to upgrade. Watch your live productions in real-time on the same device you’re using for encoding. Wave’s pixel-packed, daylight-viewable monitor handles H.264 encoding, RTMP(S) streaming, and recording – all on a 7” touchscreen IPS LCD display.That’s 1000nits of brightness for anytime viewing,and a rugged, lightweight chassis for anywhere streaming.

Prepping makes perfect

Planning your events ahead of time has never been easier with Wave’s innovative project workflow: FlowOS. Configure your setup ahead of time using Wave’s Smart Event Creator. Got a similar gig coming up? FlowOS saves your preferred presets for future events, so you and your team can go live in just a single tap. During the event, you can even monitor your video while keeping tabs on your stream quality and statuses. No more last-minute prepping or second-guessing. Total quality control is at your fingertips with FlowOS.

A web of connections for your streams

Go live anywhere with a virtually unbreakable signal.Network bonding1 protects your live stream by splitting yourvideo bitrate from multiple network connections, including Ethernet, USB modems, and cell phone hotspots.2 If one connection becomes unreliable, Wave load balances across your other connections – giving you reliable bandwidth in challenging environments. Say goodbye to choppy streams, fluctuating bitrates, and signal drops. Say hello to stress-free streaming.

Go live everywhere, all at once

With Sharelink enabled, simultaneously broadcast your live stream to Facebook, YouTube, Vimeo and more – all at the touch of a button. Reach more eyes. Share more stories. Book more gigs. Connect more communities.

Power through

Wave has all the essentials to keep you light on your feet for maximum mobility. Supply your stream with 2 sources of portable power to give you backup in the event of an outage. Use hot-swappable batteries for continuous power, and USB-C for wired power. Mount your Wave onto cameras with a ¼”-20 mount. Or set it flat on a table with adjustable leg stands. Take your live streams to new heights with the best device to get you there.

Your companion in the cloud

Sharelink is Teradek’s cloud platform that offers Wave users two major advantages: multi-destination streaming for broader distribution, and network bonding for a more robust internet connection. Send your live productions to an unlimited number of streaming platforms simultaneously. And get a reliable, high-throughput connection at any event – from crowded conferences, to remote events.

Monitor and maintain your stream

Need to step away from your Wave? Keep track of your live stream from your smart device with the Wave app. Easily review your stream's stats like bitrate, bonding status, and resolution to ensure a stable stream. And take it one step further by enabling hotspot bonding1 with multiple cellular devices for fast, reliable internet connectivity wherever you go.

Specifications

IP Encoding/Decoding

IP Video H.264:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94p, 60i, 60p Encoding
1280 x 720 at 50p, 59.94p, 60p Encoding
Transport Protocols TCP/IP, RTMP, RTMPS, TCP, UDP, DHCP, IGMP, HTTP
Compatible Services Facebook Live, Skype, Twitch, YouTube Live

Wireless

Wi-Fi 2.4/5 GHz Wi-Fi 6 (802.11ax)

Interfaces

Video Connectors 1 x HDMI Input
Audio Connectors 1 x 1/8" / 3.5 mm TRS Stereo Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone
Other I/O 1 x RJ45 10/100/1000 Ethernet Input/Output
2 x USB Type-A USB 2.0 Input
Embedded Audio HDMI/Wireless

Internal Recording

Recording Media 1 x SDHC (UHS-I [104 MB/s])

Power

Power Connector 1 x USB Type-C Input
Power Consumption Device: (12 W)
