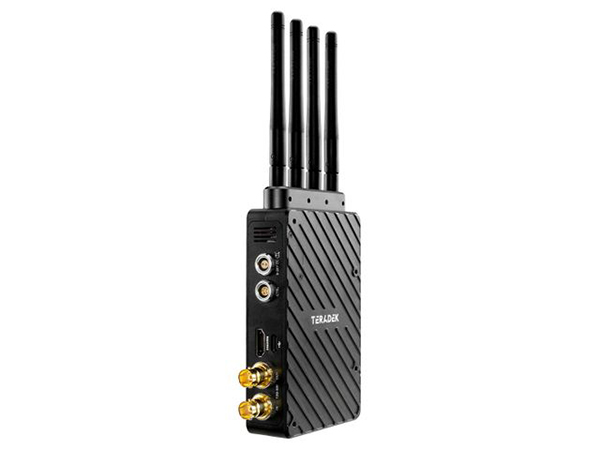

Transmit lossless HD video up to 1500'(457m) with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter Teradek.

Key Features

• Supports New 6 GHz Frequency Band
• Transmit Video up to 457m Line of Sight
• 12G-SDI and HDMI Input, 12G-SDI Output
• V Mount Battery Plate
• Smaller, Lighter, 50% Quieter
• 5-Pin USB Output for Camera Control
• Transmit to up to 6 RXs
• Compatible with All Bolt 4K 5G Devices
• AES-256 Encryption, 4 x Antennas
• Bluetooth Mobile App, Spectrum Analyzer

Transmit lossless HD video up to 1500'(457m) with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input video over HDMI or 12G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 1500' line of sight. It features a bright OLED display and 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.

The transmitter supports the transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports an iOS or Android app that easily connects via Bluetooth and provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
