Key Features
- 14.4V/28.8V Bi-voltage auto switch
- For ALEXA LF/65 high voltage cameras
- For all normal voltage cameras
- For high voltage cine lights
- Compatible with normal voltage chargers
- 196Wh capacity, 200W constant high load
- 6A fast charging support
- 8-LED remaining time indicators
- Standard V-mount connection
- 1.5m drop-off proof
- Multiple circuit protections
14.4V/28.8V Bi-Voltage
For ALEXA LF/65 and all normal cameras
The great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.
14.4V/28.8V Auto Switching
By Alexa dedicated plate KA-A20S

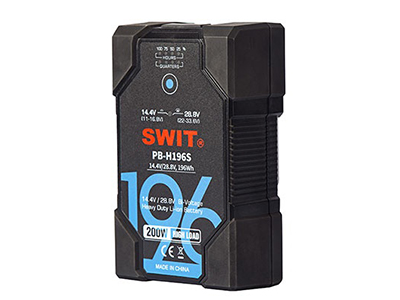

The Bi-voltage battery PB-H196S output normal 11-16.8V voltage as default, you can attach to any normal V-mount cameras or other devices, and any normal voltage chargers. Use the ARRI ALEXA dedicated V-mount plate KA-A20S, PB-H196S battery can recognize and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA. * KA-A20S Plate: CNC metal housing, High load power pins, D-tapx2 (16V), 2-pin LEMO (16V), USBx1 (5V/2A) Officially Recommended by ARRI
14.4V/28.8V Auto Switching
By “Magic Sticker” on normal V-plates
Beside ALEXA cameras, many Cine Lights are also designed high voltage input, to reduce current effectively, and protect power pins and ensure the reliability. You can easily put on a “Magic Sticker” on the particular position of all standard V-mount plates, then PB-H196S battery can recognize and auto switch on 22-33.6V output mode.
196Wh Capacity, 200W High Load
PB-H196S consists of 24pcs high class 18650 battery cells, and reaches 196Wh high capacity. PB-H290S supports Max 200W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously. The high load battery will have longer life time than normal battery if always under full load power.
6A Super Fast Charging
Using SWIT fast charger
PB-H196S supports 6A fast charging by SWIT S-3812S or PC-P461S fast charger, to save more than 60% charging time, can be charged from 0 to 80% after 2 hours 10 minutes, and fully charged within 3 hours.
Digital Power Indicator
8-LED remaining time read
When battery is discharging: Press “Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery. When battery is charging: Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%. When battery is free: Press “Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
Strong 1.5m Drop-off Proof
Dual housing + Rubber cover
PB-H196S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
