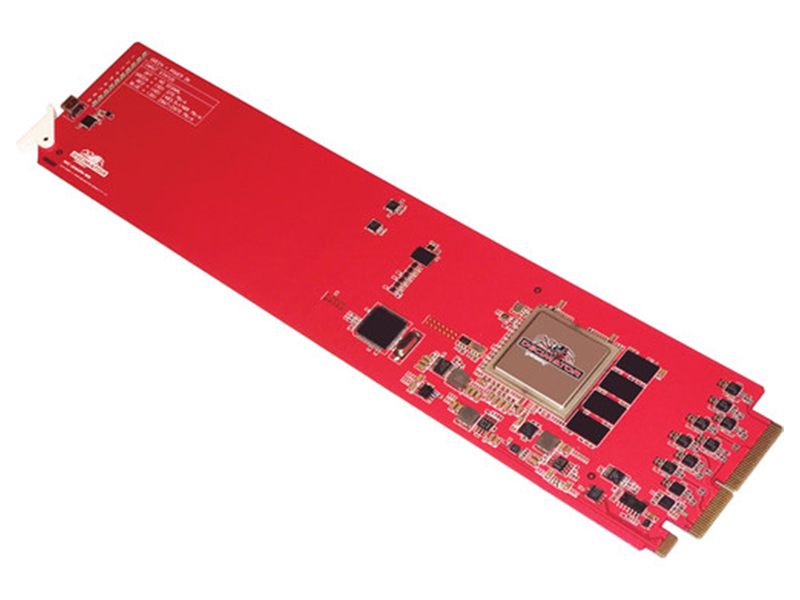

Decimator MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer

Code: DEC/MC-DMON-9S

$1,650.00

Decimator's MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Overview

Decimator's MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor. Useful in studio or A/V situations which employ openGear cards, the MC-DMON-9S can accept 9 SDI inputs of the SD, HD, or 3G variety. Each input auto-detects what kind of signal is being received in order to properly scale it to the monitor. Multiple viewing modes are built-in and recallable, and you can use Decimator's USB control panel to save and load custom presets.

Key Features

Supports both 3G-SDI level A and B on the input and output and allows conversion between levels A and B
Includes standard layouts and supports custom layouts
Customizable display overlays (can be enabled individually on each channel): 16 character UMD overlay, 16 channel audio metering overlay, format status overlay, safe action and title safe overlays, center cross, audio ID.
Save and load custom layouts via USB
Input switching with full-screen scaling
Selectable output format in both full-screen and multi-viewer mode
Low latency buffering for each input allowing non-synchronous inputs
Auto-detection on all inputs
Pass-Through mode allowing any of the 9 inputs to be selected and routed to the SDI output
USB port for control and firmware updates
openGear DashBoard for control
