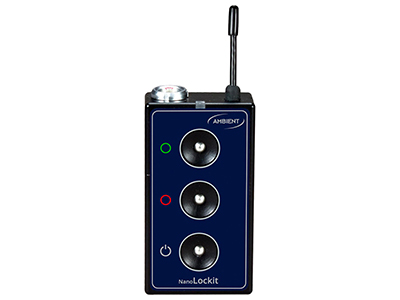

Ambient Nano Lockit

Code: AMR/ACN-NL
The matchbox-sized NanoLockit from Ambient Recording is a highly accurate and easy-to-use timecode generator which allows you to wirelessly sync timecode and framerate between devices such as DSLRs, film cameras or audio recorders.

This item is currently out of stock.

Enquire Now

What's In The Box?

  • Ambient Recording NanoLockit Miniature Timecode Synchronizer with Logging Feature (Single Unit)
  • Lanyard
  • USB-A to Micro-USB Type-B Cable
  • Antenna Cap (Red)
  • Antenna Cap (Blue)
  • Hook-and-Loop Adhesive Fastener Set

The NanoLockit is the newest member of the Lockit family. Due to its small form factor, its intuitive operation and the greatest possible accuracy, it is the timecode solution for everyone!

Little brother

In a format just the size of a matchbox, the NanoLockit is a high-precision time code generator based on the proven and award-winning Lockit circuits - for all device classes from single-lens reflex to the highest quality film camera.

Therefore it features a locking, Lemo-compatible push-pull socket. However, we have also thought of beginners and supply a suitable cable to mini-jack at the same time. So nothing stands in the way of an "out of the box" experience.

ACN Inside

The integrated wireless ACN system allows all Lockits on set to be synced with the push of a button and makes the NanoLockit compatible with all other ACN-enabled Lockit devices. Gone are the days of tediously jamming device after device.

Together with automatic switching on with an external power supply and a running time of 25 hours with the internal battery, the device is also predestined for use on rigs that are difficult to access, such as steadicams, gimbals or drones.

Easy to handle

All important functions can be controlled via the buttons. So no additional app is needed to make important settings on the set. The NanoLockit can either start directly with the built-in real-time clock or be fed with external time code via the Lemo-compatible push-pull socket.

With the NanoLockit, even the synchronization of a complex setup is literally done with a single push of a button.

Specifications
Timecode Supports all timecode framerates
Timecode Input & Output 5-pin LEMO connector
Operation Modes Generator mode
TRX mode
Wireless Transmission Proprietary ACN communication and synchronization network
Transmits timecode and metadata
Frequency: 2.4 GHz
Power External Power: Micro-USB
Internal Power: Rechargeable lithium-ion battery
Battery Battery Life: 35 hours (with full charge)
Charge Time: 2 hours (full charge), 15 minutes (for 4 hours of operation)
Dimensions 2.6 x 1.4 x 0.8" / 65.5 x 36.5 x 21.0 mm
1.2" / 31.0 mm (antenna)
Weight 2.5 oz / 72.0 g
