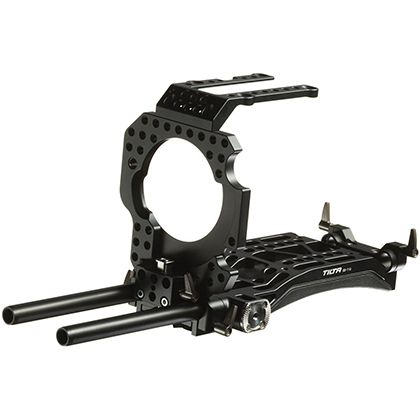

Tilta FS7 Camera Rig

Item Code: TIL/ES-T15

Arm your camera with this Tilta camera cage specifically designed for the Sony FS7.

RRP: 0   Save:

  • Qty:
  • Price:
    $865.00
    inc. GST

Found this item cheaper elsewhere? Let us know

What's In The Box?

  • 1x Top handle plate
  • 1x Sony VCT-U14 quick release baseplate
    • 1x Shoulder pad
    • (2) Arri Standard Rosette connections
  • 1x Lens adapter support
  • 1x Front bracket
  • 2x 15mm x 200mm rods

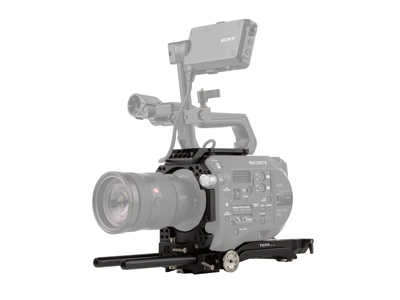

Arm your camera with this Tilta camera cage specifically designed for the Sony FS7.

The cage’s top plate fits snugly around the Sony FS7 top handle and provides several ¼”-20 screw holes to allow you to mount accessories. The front plate provides protective armor for the front of the camera and also includes several ¼”-20 screw holes.

The Tilta Battery Plate for Sony FS7 Cage (available only in V-mount) is attached directly to the top of the camera to give your camera a greater battery life while also providing several different DC outputs to allow you to power accessories.

On the bottom of the cage is a Sony VCT-U14 compatible baseplate that allows you to attach various accessories via 15mm LWS rods on either the front or back side of the plate. The plate also has an ergonomic shoulder pad on the bottom so that you can quickly and easily detach from the VCT-U14 plate and be shoulder mount-ready in no time. The plate also has Arri Standard Rosette connections on either side to allow you to attach handles for handheld operation as well as a built-in lens adapter support bracket.

Features

  • New Faceplate is Now Compatible with the FS7 MK II
  • 15mm VCT-14 Shoulder Pad Baseplate with 2 Arri-Standard Rosettes
  • Camera Front Plate with Built in Lens Adapter Support
  • Top Plate Designed to Fit Around Existing FS7 Top Handle
  • 15mm Rod Clamps Located on the Front and Back of Base Plate
  • Two 200mm Long, 15mm Rods Included
  • Constructed of Precision Machined Anodized Aluminum
Type V-Lock
Rod Compatibility Rod Size: 15 mm
Rod Spacing: 60 mm (LWS)
Rosettes 2
Tripod Mounting Threads 1/4"-20 & 3/8"-16
Camera Mounting 1/4"-20 & 3/8"-16
Material of Construction Aluminum

Cage

Accessory Mounting 1/4"-20: 24 x threaded mounting holes
Weight 2.2 lb / 1.0 kg

Rods

Threading Female threading, both ends
Diameter 15 mm
Length 7.8" / 200 mm
Weight 1.92 oz / 54.4 g
