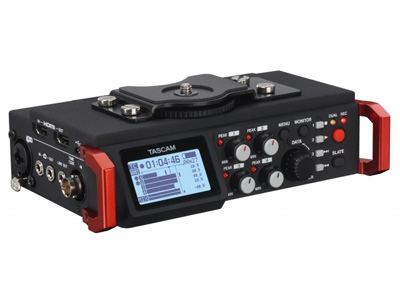

Tascam DR-701D Portable Audio Recorder

Code: CMI/DR701D
$950.00
The DR-701D is TASCAM's flagship recorder for single-shooter video production. A timecode generator is included for location reference, which can be jam synced from a SMPTE generator, camera, or smart slate.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Tascam DR-701D Portable Audio Recorder is back in stock.

The DR-701D is TASCAM's flagship recorder for single-shooter video production. A timecode generator is included for location reference, which can be jam synced from a SMPTE generator, camera, or smart slate. The HDMI in and out allows a DSLR camera to start recording on both devices, and video clock prevents drift between sound and picture.

Four mic inputs can be individually recorded and mixed to a stereo track, for a total of six-track recording. For additional tracks, multiple units can be cascaded together. The lightweight yet rigid chassis is forged from a magnesium alloy. Tripod mounts on the top and bottom of the unit allow the unit to mount under a camera, attach to a follow-focus cage, or used stand-alone.

Designed for the needs of professional filmmakers, television producers, advertisers, and documentarians, the DR-701D packs high quality multitrack recording into a package compact enough for use with any camera.

Main Features

6-track recording (4 tracks + L-R stereo mix)

Using the built-in mixer, 4 tracks and their stereo mix (6 tracks total) can be simultaneously recorded. In addition to pan and level adjustments, the mixer includes a delay function to compensate for distances between mics. A mid-side decoding function is also built-in for use with MS stereo mics.

Perfect camera sync using HDMI video clock synchronization

An HDMI input and output allows the DR-701D's internal clock and the camera to be digitally synchronized. Even when shooting long events, the video files recorded by the camera and audio files recorded by the DR-701D will not drift out of sync.

One button press on the camera starts sound recording on the DR-701D

Simply pressing the camera recording start button sends a trigger to the DR-701D to start audio recording. Unlike other systems that force you to press record on both devices, the HDMI start system prevents missed takes, syncs the two recording starts together, and makes single-operator shoots much easier.  * Feature is dependant on camera firmware, compatibility chart coming soon

Cascade feature for additional track recording

By connecting multiple units using HDMI, slave DR-701D units can be made to follow a master unit to start and stop recording simultaneously. Since audio can also be output through the HDMI connection, monitoring selections can be made using slave units without reconnecting headphones.

SMPTE timecode stores time data in recorded audio files

The built-in SMPTE generator allows the camera and DR-701D to store the same location reference. Several options are available to integrate SMPTE LTC into your camera system. The BNC timecode input can follow a source signal, or can be "jamsynced" a few times per day for independant freewheel operation. Cameras that send timecode through their HDMI output can be followed by the DR-701D's timecode input. And the internal generator can be started without an external reference for a simple time-of-day stamp on recorded BWAV files.

The magnesium-alloy chassis is lightweight yet rugged enough for daily on-set use

The DR-701D's chassis is forged using a magnesium alloy, chosen for its lightweight but solid structure. Desipte its compact size, a high number of inputs and outputs are included. Screw threads for mounting a tripod are included on the bottom of the unit, while a removable camera attachment screw and hot shoe are included on the top of the unit. The DR-701D includes a number of mounting options – either below the camera for best cable management, above the camera, or mounted to a follow-focus cage.

High-quality HDDA (High Definition Discrete Architecture) mic preamps

The microphone preamps have a significant impact on the quality of the recorded audio. The DR-701D features TASCAM HDDA mic preamps. The differential mic preamp circuits use discrete architecture, built with carefully selected components. For example, Texas Instruments OPA1652 op amps were selected for their high quality and low noise – with even better audio performance than the previous DR-70D model. As a result, the unit boasts an equivalent input noise of -124 dBu or better. The A/D converters, which convert analog signals to digital, are made by Asahi Kasei Corporation and are equivalent to those used in the top models in the TASCAM DR series of linear PCM recorders. High audio quality HDDA circuits faithfully convert the amplified audio to digital. Resolutions up to 96kHz/24-bit are supported when recording 6 tracks and 192kHz/24-bit when recording 2 tracks.

Multiple mic inputs support various recording options

The four XLR/TRS inputs can be adjusted and recorded independently, allowing various on-set recording options. Talent can be recorded using shotgun mics, lavaliers, or both simultaneously. Ambience can be recorded using a stereo mic (or the built-in microphones.) The 3.5mm stereo input can be selected for channels (1-2) and the built-in omni mics for channels (3-4) for an even wider range of mic setups.

Multiband limiter and 5-stage low-cut filter built-in

The limiter function automatically adjusts excessive input levels, and can operate independently on each of the four inputs. A more natural sound quality is achieved because a multiband limiter is employed, affecting only the frequency ranges that have excessive input. In addition, a low-cut filter can be adjusted to five different frequencies to cut wind noise, rumble and other undesirable low frequencies without damaging the source audio.

Record the built-in stereo mic together with external mics

Two omni condenser mics are built into the DR-701D for natural stereo sound images. Used in combination with small handheld or shotgun mics, speakers can be interviewed while capturing the surrounding environment in a compact setup.

A temperature-compensated crystal oscillator (TCXO) provides a solid internal clock

A high precision TCXO is employed for the internal clock generator. Like other TASCAM professional studio equipment, the TCXO reduces clock errors (jitter) to improve the quality of the digital recording. Additionally, a PLL (phase-locked loop) circuit with a discrete filter further reduces jitter for the best possible audio quality.

 OUT (CAMERA OUT) connector synchronizes recording between the DR-701D and a camera

A dedicated connector is included to output mixed audio to a DSLR or video camera. This way, the same audio can be recorded by both the DR-701D and the camera. The output level is adjustable to avoid overloading the mic-level input on many cameras. In cases where the video or DSLR camera does not include SMPTE sync, the audio on the camera can be synchronized with the DR-701D's audio files in a video editing program. Many editors such as Final Cut Pro X and Adobe Premiere support automatic sync between video and audio recordings using the "multi-camera" or "multi-clip" feature.

 IN (CAMERA IN) connector allows camera playback without re-wiring

In addition to the  OUT (CAMERA OUT), a  IN (CAMERA IN) connector is provided to monitor the audio from the camera during playback. By using this with the DR-701D monitor selection function, you can easily monitor not only the DR-701D but also audio from the camera.

Slate tone generator for adjusting perfect sync

A slate tone generator is built-in to guide alignment in post production. By zooming into the waveform of both the camera and DR-701D audio, the sine wave can be perfectly aligned for exact synchronization.

Stereo mini jack mic input (EXT IN 1/2) enables connection of mics for video cameras

A 3.5mm stereo input connector accepts many video camera mics. One can connect a video camera mic to the 1-2 input jack for recording ambience, then patch XLR shotgun mics into inputs 3-4. Plug-in power can be supplied to the 3.5mm input for mics that require power.

Usability features prevent misoperation and improve ergonomics

Many design features have been added to prevent damage, avoid blown takes, and improve usability. The HOLD switch makes it possible to disable unintended button presses during recording, and even includes the four gain adjustment knobs. The handles on the left and right sides protect the control surface and support attachment of a shoulder strap. In addition, the gain adjustment knobs are designed so they are not moved with a slight touch, making unintended moves less likely. Other details implemented for ease-of-use include an LCD screen and LEDs that promote high visibility even under direct sunlight.

Usable as a standalone field recorder

The DR-701D can be used as a 6-track field recorder with 4 input channels. Attach a strap to the red handles for comfortable use in the field. Whether hung around the neck or shoulder, the unit can be easily operated and adjusted.

Optional external power using a USB mobile battery

In addition to the four internally-housed AA batteries, even longer operation is possible when used with a mobile battery with a Micro-B USB port. The TASCAM BP-6AA battery pack is also compatible.

Dual-recording function allows two files to be recorded simultaneously at different levels.

Dual recording captures a safety track, at a level 6 to 12 dB lower than the main track. In case of sudden volume changes on-set or while shooting a documentary, the safety track makes sure that you have an un-distorted take.

Features at a glance

  • SD/SDHC/SDXC cards used for recording media.
  • 6 maximum simultaneous recording tracks
  • MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
  • Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording)
  • Built-in original TASCAM HDDA mic preamps provide high audio quality
  • Input levels can be adjusted separately for each track
  • XLR/TRS inputs support +4dBu line level and 24/48V phantom power
  • Clock and record start/stop can be synchronized with a camera using the HDMI port
  • DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output
  • Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations
  • SMPTE Timecode can be input through the TC IN connector to add recording start times to files
  • Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input
  • Plug-in power mics and high output mics (EXT IN 1/2) supported
  •  OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera
  •  IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D
  • High quality audio output through a line output jack separate from the headphones jack
  • Headphones jack with 50mW+50mW maximum output
  • Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included
  • Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap
  • Transport and SLATE buttons made of rubber suppress noise during operation
  • HOLD switch prevents misoperation
  • 128×64-dot graphic LCD with backlight
  • LED lights have high visibility even in direct sunlight
  • High-speed transfer of files to computers possible using USB 2.0
  • Micro-B type USB cable included
  • Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
  • BP-6AA external battery pack (sold separately) enables operation for even longer times
  • Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately)
  • Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
  • GANG function allows the levels of multiple channels to be controlled simultaneously
  • Individual channel trim settings shown
  • 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
  • Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
  • Delay function can compensate for distances between mics (+/-150 ms)
  • Mid-side decoder function enables use with mid-side stereo mics
  • Slate tone insertion functions (AUTO/MANUAL)
  • Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)

Specifications

Recording media SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)
Recording format
WAV 44.1k/48k/96k/192k Hz, 16/24-bit
BWF 44.1k/48k/96k/192k Hz, 16/24-bit
Number of input channels
44.1k/48k/96k Hz 4 maximum
192kHz 2 maximum
Number of recording tracks
44.1k/48k/96k Hz 6 maximum
192kHz 2 maximum
Analog audio inputs *The maximum input level the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting.
*The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.
IN 1, IN 2, IN 3, IN 4 XLR can provide phantom power
Connectors XLR-3-31 (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4")standard TRS jacks(tip:HOT, Ring:COLD, Sleeve:GND)
Input gain ”LOW”/”MID”/”HI”/”HI+”時
Input impedance 2k ohms
Phantom power 48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
Maximum input level +4dBu
Minimum input level -72dBu
MIC input gain TRIM MAX
LOW +20dB
MID +40dB
HI +52dB
HI+
+64dB
Input gain "LINE"時
Input impedance 10k ohms以上
Nominal input level +4dBu
Maximum input level +24dBu
EXT IN 1/2
Connector 3.5mm(1/8")stereo mini jack (can provide plug-in power)
Input impedance 10k ohms
Maximum input level +10dBV
Minimum input level -50dBV
MIC input gain TRIM MAX
LOW +3dB
MID +11dB
HI +26dB
HI+ +38dB
 IN
Connector 3.5mm(1/8")stereo mini jack
Input impedance 10k ohms
Nominal input level -10dBV
Maximum input level +6dBV
Analog audio outputs
LINE OUT
Connector 3.5mm(1/8")stereo mini jack
Output impedance 200 ohms
Nominal output level -14dBV
Maximum output level +6dBV
 OUT
Connector 3.5mm(1/8")stereo mini jack
Output impedance 200 ohms
Nominal output level -44dBV
Maximum output level +6dBV
PHONES
Connector 3.5mm(1/8")stereo mini jack
Maximum output 50mW + 50mW
Control inputs/outputs
HDMI IN/OUT
Connectors Type A receptacle
USB
Connector Micro-B
Format USB2.0 HIGH SPEED mass storage class
TIMECODE IN
Connector BNCConnector
Signal voltage amplitude 0.5Vp-p to 5Vp-p
Input impedance 10k ohms
Format SMPTE 12M-1999 compliant
REMOTE
Connector 2.5mm TRS jack
Power 4 AA batteries(Alkaline, NI-MH or lithium),
AC adapter(TASCAM PS-P515U, sold separately),
External battery pack(TASCAM BP-6AA, sold separately)
Power consumption 6.5W(maximum)
Current consumption (USB bus power) 1.3A(maximum)
Battery operation time (continuous operation) 2ch WAV, 48kHz, 16bit rec
*When using phantom power, the operation time might be reduced depending on the mic being used.
DR-701D
Lithium
(Energizer ULTIMATE LITHIUM)
About 7:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 3:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries
(eneloop)
About 4:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 2:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries
(EVOLTA)
About 3:45 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 1:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
DR-701D + BP-6AA *BP-6AA is using the alkaline batteries (EVOLTA).
Lithium batteries
(Energizer ULTIMATE LITHIUM)
About 12:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 7:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 5:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries
(eneloop)
About 9:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 7:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 4:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries
(EVOLTA)
About 9:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 3:45 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Dimensions 169(W)×57.3(H)×113.5(D)mm (with the top adapter attached)
Weight 654g (including batteries) / 567g (without batteries)
Operating temperature 0˚C to 40˚C
Standard accessories USB cable, Camera attachment bracket screw hole covers × 6 Owner's Manual (including warranty)



Audio performance
Frequency response 20-20kHz +0.5/-1dB(LINE IN to LINE OUT, Fs48kHz, JEITA)
20-40kHz +0.5/-1dB(LINE IN to LINE OUT, Fs96kHz, JEITA)
20-80kHz +0.5/-5dB(LINE IN to LINE OUT, Fs192kHz, JEITA)
Distortion 0.007% or less(MIC IN to LINE OUT Fs44.1k/48k/96k/192k Hz, JEITA)
S/N ratio 100dB or more
(MIC IN to LINE OUT, -10dBu入力, 1kHz, Fs44.1k/48k/96k/192k Hz, JEITA)
Equivalent input noise -124dBu or less
