Steadicam Steadimate-S Base Package
The Steadicam Steadimate-S offers operators increased freedom, endurance, and creative opportunity when working with single-handed motorized stabilizers like the DJI Ronin-S
CPR/SDM-S
False
Steadicam
341
False
1
0
False
0
1
0
https://www.lemac.com.au/site/DefaultSite/filesystem/images/Steadicam/steadimate_s.jpg
Grip & Support
Support and Stabilisation
Steadicam
Handheld
Grip & Support
Support and Stabilisation
Grip & Support
Support and Stabilisation
Steadicam
FAST SHIPPING
Products in stock are generally shipped the same day.
Steadicam Steadimate-S Base Package
Code: CPR/SDM-S
Please Note: This package is only for operators who already own a Steadicam system. It does not include Stabiliser Arm or Vest.
For purchasing information
Enquire Now
What's In The Box?
Gimbal Collar/Yoke
Weighted Base
Adapter Pad Set
½” Balance Spud
3mm Allen Key
Instructions
6 x 1/4lb balance weights
6 x 1/2 lb balance weights
Transform Your Single-Handed Stabiliser

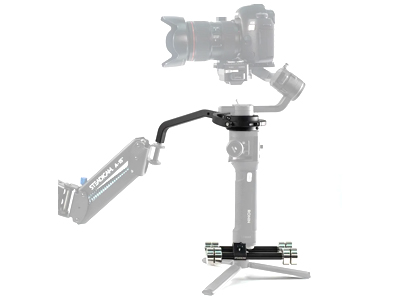

The Steadimate-S converts a handheld motorized gimbal into a full body-worn stabilizer system by attaching a mechanical gimbal collar/yoke and weighted base to the post of the gimbal. This allows a spring arm and vest to connect and assist the stabilizer, greatly improving the overall functionality and reducing operator fatigue.
The Steadicam arm eliminates vertical bounce by providing z-axis stabilization, while the Steadicam vest provides operator comfort for long shots and long days by comfortably transferring all the weight to your hips.
Add creativity to your work by smoothly pushing the camera all the way to the ground and back up with “Low Mode” capability. Increase panning finesse by performing smooth manual panning.

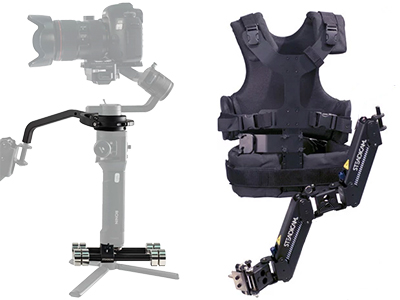

The Steadimate-S is available as a kit paired with either the Steadicam A-15 stabilizer arm (15lbs/6.8kg support) and Steadicam Aero vest, or the Steadicam A-30 stabilizer arm (30lbs./13.6kg support) and Zephyr vest for larger camera packages. The mechanical gimbal collar/yoke and weighted base are also available separately for use with existing 1/2” post stabilizer systems.
Features & Benefits
- Affordably converts handheld motorised gimbals into body worn stabilisers
- Stabiliser arm greatly reduces the bouncing image effect on the z-axis while walking
- Execute more natural-looking manual camera pan movements
- Wide vertical range of motion, including "low mode"
- Transferring system weights to the hips reduces oeprator fatigue and increases operating time
Specifications
SDMS-GIM Dimensions:
|
Gimbal Collar/Yoke: 10.5” L x 5.1” W x 1.2” @ 1lb
Weighted Base: 9.7” L x 3.9” W x 1.5” H @ 5.7lbs (all weights attached) |
Arm Capacity: |
Steadicam A15 Kit: 15lb / 6.8kg
Steadicam A30 Kit: 30lb / 13.6kg |
Handheld motorized gimbals compatibility: |
DJI Ronin-S
Zhiyun Crane 2 |
Compatible with ؽ” stabilizer arm posts |
|
Weighted base utilizes Ø15mm x 60mm rods |
|
¼-20 accessory mounting holes: |
Gimbal Collar/Yoke handle
Weighted base clamp knob
Weighted base rod ends
|
