SmallHD 503 Ultra Bright Monitor

Code:

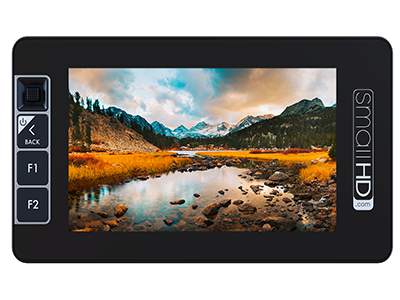

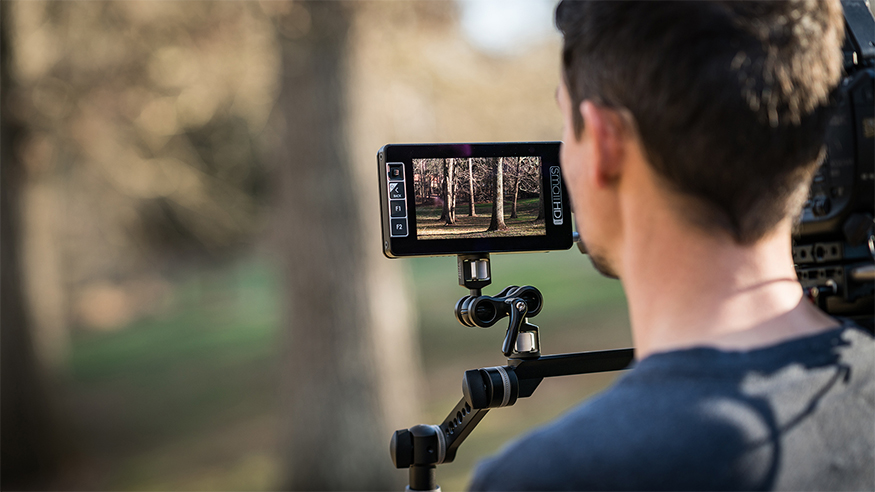

The all new SmallHD 503 Ultra Bright packs a huge 2200+ nit brightness, 10-bit, 1920x1080 resolution into a monitor with a completely redesigned milled aluminium unibody and optically bonded gorilla glass screen, making it extremely rugged and durable.

For purchasing information

Enquire Now

The all new SmallHD 503 Ultra Bright packs a huge 2200+ nit brightness, 10-bit, 1920x1080 resolution into a monitor with a completely redesigned milled aluminium unibody and optically bonded gorilla glass screen, making it extremely rugged and durable.

New features include HDR Preview, customisable function buttons along with the ability to use the SDI out which doubles as a second SDI input for dual view mode for A/B camera.

PageBuilder OS

PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.

HDR Preview and 3D LUT Support

UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

Software That Eliminates Hardware

Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .

HD Scopes with Pixel Accurate Data Analysis

Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.

Expose with Confidence

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Efficiently UltraBright

The 503 and 703 UltraBright are the Brightest 5" and 7" monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Custom Focus Assist & Peaking Tools

Focus assist creates a bright highlight on in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking increases the image sharpness allowing more detailed focusing. Change your color and intensity of your focus tools.

Dual View

Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

Versatile Image Framing

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

Specifications

Display

Panel Type IPS LCD
Size Diagonal 5
Resolution 1920 x 1080
Pixel Density (PPI) 443 ppi
Aspect Ratio 16:9
Active Area 4.9
Brightness 2200 nits
Contrast 1000:1
Color Gamut 100% Rec 709
Color Depth 10-Bit Color Intelligence Engine
Viewing Angle 170 degrees Typical
Backlight Type White LED
Adjustable Backlight Yes

Viewfinder (EVF)

Variable Field of View range

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI 1x 3g Input, 1x 3g Output
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x ⅛” Headphone Jack
Power In 1x Locking LEMO 2-pin Connector
USB 1x Micro USB

Controls

Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons

Data I/O

Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving

Power

Connector Type 1x Locking LEMO 2-pin Connectors: for Power Input
Voltage With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
Power Consumption 11 watts
Recommended Power Supply Included
Overload Protection Yes

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature 0 - 100 degrees F
Storage Temperature -4 - 120 degrees F
Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel
Height 3.36" (8.53cm)
Width 6.16" (15.65cm)
Depth/Length 1.13" (2.87cm)
Weight (Item Only without battery) 15.2oz (430.91g)
Weight (Packaged) 25oz (708.74g)
Mount Points 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor, 1x ¼”-20 Thread on back of Monitor @ Bottom Center

Software

Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick
Frame Guides Yes: Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Yes - Automatic or Manual Control
Image Flip (Manual/Automatic) Yes - Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) Yes - User Adjustable Color Style and Intensity
Peaking Yes - User Adjustable Intensity
False Color Yes - Rainbow & Arri Style
Zebra Yes - Dual - User Configurable
Waveform Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Yes - Fully User Customizable
Histogram Yes - Luma & RGB Style
Image Capture Yes - With Dedicated Button
Custom LUTS Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay Yes with Opacity Slider and Blink Setting
Firmware Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.
Audio Meters Yes - HDMI & SDI up to 8 channel
