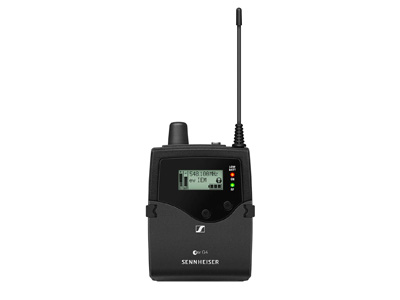

Sennheiser EK IEM G4 Wireless Bodypack Receiver (AS)

Code: SEN/508190
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage Note: AS Block covers 520 - 558 MHz. Be sure to check the Sennheiser Frequency Finder for the best range to cover your needs!

For purchasing information

Enquire Now

What's In The Box?

  • EK IEM G4 stereo receiver
  • 2 AA batteries
  • IE 4 earphones
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • Experience ultra-reliable reception and impressive features with the Sennheiser EK IEM G4. This in-ear bodypack receiver includes a bright backlit display and easy-to-navigate menu, a switchable Hi Boost function, a built-in limiter, and even the capability to use the headphone cable as a second antenna to eliminate blackouts. Automatic frequency scan, wireless sync with the transmitter, a quality HDX compander, and an auto-lock function are also onboard. Beyond that, you'll benefit from increased bandwidth and power, up to 8 hours of operation, and backwards compatibility with previous evolution systems. Complete with IE4 earbuds, the EK IEM G4 delivers great-sounding, dependable in-ear monitoring performance.

    Features

    • Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
    • Easy and flexible wireless synchronization between transmitter and receiver via infrared
    • Compatible with Sennheiser WSM control software for flexible frequency allocation
    • Up to 16 compatible channels
    • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
    • Transmission Range: up to 100 meters / 300 feet
    • High RF output power (up to 50 mW) depending on country regulations

    Specifications

    Frequency range AS: 520 - 558 MHz
    Dimensions Approx. 82 x 64 x 24 mm
    Compander Sennheiser HDX
    THD, total harmonic distortion ≤ 0.9 %
    Weight (incl. batteries) approx. 125 g
    Signal-to-noise ratio approx. 90 dBA
    Switching bandwidth up to 42 MHz
    Peak deviation ±48 kHz
    Nominal deviation ±24 kHz
    Operating time approx. 4 to 6 hours (depending on volume level)
    Modulation Wideband FM
    Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
    Adjacent channel rejection Typically ≥ 65 dB
    Audio-Output-Power 2 x 100 mW at 32 Ω
    Intermodulation attenuation Typically ≥ 70 dB
    Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
    Powering 3 V battery / 2.4 V rechargeable battery
    Receiving frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
    RF sensitivity < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
    Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
    Bass Boost +8 dB at 80 kHz
    Temperature Range -10 °C to +55 °C
    Receiver Principle Adaptive diversity
    Blocking ≥ 80 dB
