Rode NT1 + Ai-1 Complete Studio Kit

Code: ROD/NT1AIKIT

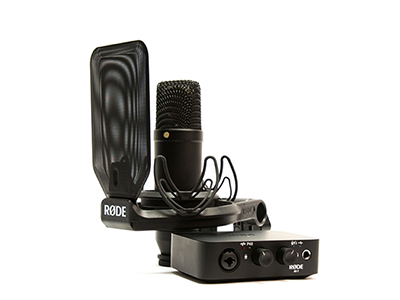

Complete Studio Kit including NT1, AI1, SMR, XLR Cable and USB cable.

For purchasing information

Enquire Now

Rode AI-1

The perfect first step into home recording

RØDE’s AI-1 Audio Interface is stacked with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The Complete Studio Kit comes with the AI-1, RØDE’s peerless NT1 large diaphragm condenser microphone, a shock mount and all cables.

Superior Headphone Amplifier onboard

Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

Rode NT1

The NT1 is a revolutionary new 1" diaphragm condenser microphone from RØDE.

Although the body of the new NT1 closely resembles the NT1-A, the microphone has been completely redesigned from the ground up, with the only shared component being the mesh grille.

RØDE’s design engineers approached the NT1 as a marriage of innovation and tradition, starting with the capsule which is a completely new design. Codenamed the HF6, it is the perfect example of RØDE’s fusion of artistic design approaches and cutting-edge manufacturing techniques, and features a sound signature reminiscent of the famous microphones of old while at the same time exhibiting extremely low noise.

It has been developed with a focus on detailed midrange response, coupled with silky smooth high frequencies, and warm, round, bass reproduction to make the NT1 an absolute standout in its class.

In another world-first for RØDE, the transducer itself is suspended inside the microphone using Rycote’s industry-leading Lyre system, minimizing external vibrations at the capsule level. The capsule is then married to high-grade electronics that have been designed to provide the lowest noise level of any studio microphone available. The NT1 is an incredibly quiet microphone, measuring only 4.5dBA of self-noise.

Its body is machined from 6061 aluminium and then nickel plated for resistance against corrosion. Finally it is coated in a durable, military-grade ceramic layer, using advanced electrostatic application techniques developed by RØDE to ensure an extremely hard wearing finish that is resistant to scratches or marks.

The NT1 is supplied with the revolutionary new RØDE SMR shock mount. Featuring a unique double-Lyre suspension system, the SMR enhances the existing superior vibration cancellation of Rycote’s Lyre system by using a smaller inner Lyre to act as a tensioning element. This maintains each Lyre in the neutral position where it is most efficient at cancelling vibration. The SMR’s removable all-metal pop filter is as effective as it is visually striking, providing an integrated solution for plosive protection that is easily washable and designed to last as long as the shock mount and microphone.

Features

  • Large 1" condenser capsule with gold-plated membrane
  • Cardioid polar pattern
  • Internal Rycote® Lyre® based capsule shock mounting system
  • Ultra-low noise, self noise of only 4.5dB (A)
  • State-of-the-art surface mount electronics
  • 10 year extended warranty when you register your microphone

The NT1 is designed and made in Australia, and is covered by RØDE's industry-leading 10 year warranty.

Rode AI-1 Specifications

Computer Connectivity USB
Form Factor Desktop
Simultaneous I/O 1 x 2
Number of Preamps 1
Phantom Power Yes
Bit Depth 24-bit
Sample Rates 44.1 kHz
48 kHz
88.2 kHz
96 kHz
Analog Inputs 1 x  Neutrik XLR-1/4” combo
Analog Outputs 2 x 1/4” (impedance balanced)
1 x 1/4” (headphones)
Direct Monitor Yes
USB 1 x USB Type C
Bus Powered Yes
OS Requirements Mac OS 10.10 or later
Windows 7 or later
Power USB bus-powered
Depth 100mm total (with knobs)
chassis: 88mm
Width 124mm
Height 38mm
Weight 1lb 3.7oz
560g

XLR/MIC INPUT

Dynamic Range 104dBA
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) –128dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 1.3k Ohms

INSTRUMENT INPUT

Dynamic Range 99dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 900k Ohms

MONITOR OUTPUTS

Maximum Output Level -6dBu
Frequency Response 20Hz – 20kHz better than ±1dB

HEADPHONE

Max output power at 1% THD 32Ohms – >210mW
300Ohms – >390mW

Rode NT1 Specifications

Operating Principle Pressure Gradient
Transducer Condenser
Diaphragm 1" (25.40 mm)
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
Equivalent Noise Level 4 dB A-Weighted
Maximum SPL 132 dB SPL 1%
Impedance 100 ohms
Sensitivity -29 dB, re: 1 V/Pa
Power Requirements 24 V, 48 V
Output Connectors 3-Pin XLR
General
Length 7.36" (187 mm)
Diameter 1.97" (50 mm)
Weight 0.97 lb (440 g)
