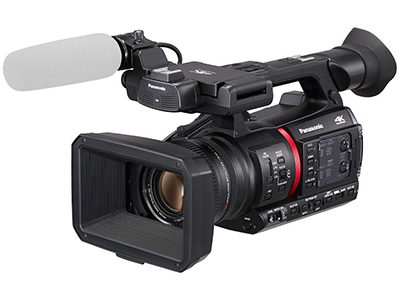

Panasonic AG-CX350 4K Handheld Camcorder

Code: GEC/AG-CX350EN
The 4K AG-CX350 camcorder goes beyond conventional news gathering and recording applications to meet a wide range of professional needs. The industry's lightest fixed-lens camcorder features 4K 10-bit 60p capture, HDR recording and is equipped with the RTMP/RTSP protocol for direct live streaming. The in-camera NDI|HX compatibility (requires license purchase) enables high-quality IP video connectivity with live production switchers, including the Panasonic AV-HLC100 Stream Studio.

For purchasing information

Enquire Now

What's In The Box?

  • Panasonic AG-CX350 4K Handheld Camcorder
  • Battery (AG-VBR59)
  • Battery charger (AG-BRD50)
  • AC adaptor
  • AC cable
  • Microphone holder kit
  • Shoulder strap
  • Eye cup
  • Lens hood*
  • Grip belt*
  • (*) come already attached to the camera

    The Panasonic AG-CX350 4K handheld camcorder is the first in the industry to provide NDI | HX connectivity. Spearheading a new camera series, this model ensures smooth video transmission and camera control over IP for live events and web distribution. The AG-CX350 has the capability to be built in to larger systems, working alongside Panasonic PTZ cameras equipped with NDI | HX and the Panasonic Live Production Centre (AV-HLC100).

    The camera features a wide-angle of 24.5mm, with a high powered optical 20x zoom lens and a new high-definition, high sensitivity 1.0-type 4K MOS sensor to enable 10-bit image quality and 4K (UHD) or FHD resolution recording at up to 50/60p, on to SDXC card. It also features a HLG2 gamma mode to support HDR image production.

    Featuring a high brightness, high definition LCD, the camera provides SDI/HDMI parallel outputs for enhanced operation and usability. Weighing just 1.9kg it has the added benefits of compact size and low power consumption.

    A new, high-efficiency HEVC codec (LongGOP, 10-bit, 4:2:0/MOV) enables smooth playback and editing with a notebook PC or MacBook.

    In addition, the camera supports a streaming function for Facebook and YouTube live with compatible RTSP and RTMP protocols. The camera will also support the MXF P2 file format futureproofing it for potential broadcasting applications, enabling AVC-Intra and AVC-LongG.

    Wide-Angle 24.5mm*1 Optical 20x Zoom, Plus i.Zoom

    Panasonic boasts the world’s largest market share in the aspherical lens segment. Its cutting-edge optical technology was maximized in the development of the integrated lens used in the AG-CX350. This lens has the industry’s widest angle of 24.5mm*1 on the wide end and allows recording of wide-angle images with minimal distortion, without the use of a conversion lens. The optical 20x zoom covers up to 490mm telephoto in all modes. Furthermore, the i.Zoom enables seamless zooming of up to 32x in HD or up to 24x in UHD from the telephoto end with no degradation in resolution. The AG-CX350 also comes with digital 2x/ 5x/ 10x zoom.*2

    *1: In 35mm equivalent. The AG-CX350’s wide 24.5mm angle is the widest in the industry for UHD/FHD (16:9). In the segment of camcorders with integrated lens, the Panasonic AG-UX180 achieved the industry’s widest angle of 24mm in UHD/24p (17:9). For UHD/FHD (16:9), 25.4mm is the widest angle in the industry. (Both as of January 2019, according to a Panasonic survey)
    *2: When using the digital zoom, picture quality degrades as the magnification rate increases.

    New High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor

    The 1.0-type MOS (approximately 15,030,000 pixels) offers an outstanding depth of field and excellent balance between image quality and sensitivity. It supports multi-formats, such as UHD (3840 x 2160), FHD, HD and SD, and provides images without cropping in all modes. This MOS sensor also boasts high sensitivity of F12 (60 Hz) /F13 (50 Hz) (in both UHD and FHD in High Sensitivity mode).

    Built-in 5-Axis Hybrid Image Stabilizer

    The AG-CX350 has a built-in hybrid image stabilizer that combines optical and electronic camera shake compensation functions. It corrects camera shake in five axial directions in all modes* including UHD to provide powerful camera shake compensation power in low-angle shooting, high-angle shooting and all other unstable conditions. There are three modes to choose from: NORMAL (standard), STABLE (effective for fixed-frame shooting) and PAN/TILT (effective in panning and tilting).

    *Excluding Super Slow and VFR modes.

    HDR-Compliant HLG (Hybrid Log-Gamma)

    The AG-CX350 features HLG (Hybrid Log-Gamma)* to support HDR (High Dynamic Range). This achieves a wide dynamic range on HDR-compatible TV monitors. The gamma mode can be selected from eight modes (HD, SD, FILMLIKE 1, FILMLIKE 2, FILMLIKE 3, FILM-REC, VIDEO-REC, HLG).

    * The HLG specification was developed jointly by Japanese broadcaster NHK and the BBC in the UK. It is defined in ARIB STD-B67 and ITU Rec. 2100.

    Intelligent AF and Focus Assist

    The AG-CX350’s auto focus system is Intelligent AF, which is equipped with a micro drive focus unit to achieve high focusing speed, excellent tracking performance and superb stability. The AG-CX350 is also equipped with Expand and Peaking (simultaneous display possible), Manual Focus Assist, LCD Touch Focus (switchable to Auto Iris or brightness display) and One-Push AF Focus Assist.

    Manual Three Rings

    The AG-CX350 comes with Manual Three Rings for zoom, focus and iris control. They deliver quick response and provide tactile feel that satisfies professionals. The zoom lever located at the upper section of the handle has a multi-step variable zoom function, allowing smooth zooming from ultra-low speed when shooting from low angle shooting and when a tripod is used.

    Cabled/Wireless Remote Control Capability

    The remote terminal (2.5-mm super mini jack) enables the control of the focus, zoom and iris using a remote controller (third-party product). It also supports wireless remote control using a tablet or smartphone (iOS, Android OS).

    General
    Power: DC 7.28 V (when the battery is used)
    DC 12 V (when the AC adaptor is used)
    Power Consumption: 17 W (when the LCD monitor is used)
    11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)
    Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
    Operating Humidity: 10 % to 80 % (no condensation)
    Weight: Body: approx. 1.9 kg (4.19 lb)
    (body only, excluding lens hood, battery, and accessories)
    Shooting: approx. 2.3 kg (5.07 lb)
    (including lens hood, battery, and microphone holder)
    Dimensions: 180 mm (W) x 173 mm (H) x 311 mm (D)
    (7-1/8 inches x 6-13/16 inches x 12-1/4 inches)
    (excluding protrusion and eye cup)
    Camera Unit
    Pickup Device: 1.0-type (effective size) MOS solid state image sensor
    Effective Pixels: 15,030,000 pixel
    Lens: Optical image stabilizer lens, optical 20x motorized zoom
    F value: F2.8 to F4.5
    Focal length: f=8.8 mm to 176 mm
    35 mm equivalent: 24.5 mm to 490 mm
    Filter Diameter: 67 mm
    ND Filter: Clear, 1/4, 1/16, 1/64
    IR Filter: Incorporates the ON/OFF control function
    Shortest Shooting Distance (M.O.D.):
    Approx. 10 cm (W), 1.0 m (T) from the front lens
    Gain Setting: L/M/H selector switch
    –3 dB to 18 dB (Adjustable in 1 dB steps)
    24dB, 30 dB, 36 dB switched
    (when assigning [S. GAIN] to the USER button)
    Color Temperature Setting: ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
    Shutter Speed: When [SYSTEM MODE] = 59.94 Hz
    • 59.94i/59.94p mode:
    1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 29.97p mode:
    1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 23.98p mode:
    1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode:
    1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 25p mode:
    1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    Shutter Speed:
    (Slow Shutter)
    When [SYSTEM MODE] = 59.94 Hz
    • 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
    • 29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
    • 23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
    • 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
    Shutter Speed:
    (Synchro Scan)
    When [SYSTEM MODE] = 59.94 Hz
    • 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
    • 29.97p mode: 1/30.0 sec. to 1/7200 sec.
    • 23.98p mode: 1/24.0 sec. to 1/7200 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/50.0 sec. to 1/7200 sec.
    • 25p mode: 1/25.0 sec. to 1/7200 sec.
    Shutter Open Angle: 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
    VFR Recording Frame Rate: When [SYSTEM MODE] = 59.94 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
    When [SYSTEM MODE] = 50.00 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)
    Super Slow Recording: When [SYSTEM MODE] = 59.94 Hz
    1920 x 1080 (FHD): shooting frame rate 120 fps
    When [SYSTEM MODE] = 50.00 Hz
    1920 x 1080 (FHD): shooting frame rate 100 fps
    Sensitivity: When [HIGH SENS.] mode
    F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
    F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
    Horizontal Resolution: 2000 TV or higher (UHD: center)
    1000 TV or higher (FHD: center)
    i.Zoom: ×32 (FHD), ×24 (UHD)
    Digital Zoom: ×2/×5/×10
    Lens Hood: Hood with lens cover
    Memory Card Recorder
    Recording Media: SDHC memory card (4 GB to 32 GB),
    SDXC memory card (32 GB to 128 GB)
    UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported
    microP2 card (A series, B series)
    Please see back cover for the “Available Memory Card” table.
    Recording Slot: microP2/SDXC UHS-II card slot x 2
    Recording Pixels: 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
    System Frequency: 59.94 Hz/50.00 Hz
    Recording File Format: MOV (AVC), MOV (HEVC), AVCHD
    Recording Format: Please see page 4 for the “Recording Format” table.
    Recording Time: Please see back cover for the “Recording Time” table.
    2 Slot Functions: Relay Rec, Simultaneous Rec, Background Rec
    Special Recording Functions: Pre Rec, Interval Rec, Time Stamp
    Digital Video
    Quantization: MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
    AVCHD: 4:2:0 8 bit
    Video Compression Format: H.264/MPEG-4 AVC High Profile
    H.265/MPEG-H HEVC Main10 Profile
    Digital Audio
    Recording Audio Signal: MOV: 48 kHz/24 bit, 2 ch, Linear PCM
    AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
    Headroom: 12 dB/18 dB/20 dB switchable (menu)
    Live Streaming
    Video Compression Format: H.264/MPEG-4 AVC Main Profile, High Profile
    Audio Compression Format: AAC-LC
    Network Protocol: RTSP/RTP/RTMP
    Video Output
    SDI OUT: BNC x 1, SDI REC REMOTE supported
    HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit):
    • 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
    • 1280 × 720: 59.94p, 50p
    • 720 × 480: 59.94i • 720 × 576: 50i
    HDMI OUT : HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
    Output format (4:2:2 10 bit):
    • 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
    • 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    • 1280 × 720: 59.94p, 50p
    • 720 × 480: 59.94p • 720 × 576: 50p
    VIDEO OUT: 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω
    Audio Input/Output
    Built-in Microphone: Stereo microphone
    Input 1/2: XLR (3-pin) x 2 (INPUT1, INPUT2)
    Input high impedance, LINE/MIC/MIC+48V (switchable SW)
    MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu)
    LINE: +4 dBu/0 dBu (switchable menu)
    SDI OUT: Linear PCM 2 ch
    HDMI OUT: Linear PCM 2 ch
    Headphone: 3.5 mm diameter stereo mini jack x 1
    AV OUT: 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
    Speaker: 20 mm diameter, round x 1
    Other Input/Output
    TC IN/OUT: BNC x 1,
    Used as the input and output terminals (switchable menu)
    Input: 1.0 V to 4.0 V [p-p] 10 KΩ
    Output: 2.0 V ± 0.5 V [p-p] low impedance
    REMOTE: 2.5 mm diameter super mini jack
    LAN: RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
    USB 2.0 HOST: Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
    USB 3.0 DEVICE: USB 3.1 GEN1 Type-C, USB Mass storage function
    No USB bus power function
    DC IN 12V: DC 12 V EIAJ Type 4
    Monitor/Viewfinder
    LCD Monitor: 3.5 type TFTLCD color monitor (3:2),
    approx. 1,620,000 dots, Touch panel
    video display (16: 9) area: Approx. 1,370,000 dots
    Viewfinder: 0.39 type OLED (organic EL display), approx. 2,360,000 dots,
    video display (16: 9) area: approx. 1,770,000 dots
