Blackmagic Atem Mini

Code: NMA/SWATEMMINI
$455.00
ATEM Mini features 4 HDMI inputs and has an intuitive, easy to use design that makes it possible for anyone to live stream multi camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply connect 4 high quality HDMI inputs that can be used for live switching cameras, computers or even game consoles. You get a built in DVE for exciting picture in picture effects, broadcast quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors.

ENQUIRE NOW

Got a question about this product?
Send us a message

In Stock

Limited Stock - Don't miss out!

Introducing low cost multi camera live production with advanced broadcast features The new ATEM Mini makes it easy to create professional multi camera productions for live streaming to YouTube or innovative business presentations using Skype. Simply connect ATEM Mini and you can switch live between 4 high quality video camera inputs in dramatically better quality images. You can even connect to a computer to present PowerPoint slides or add a gaming console. The built in DVE allows exciting picture in picture effects, perfect for live commentary! There's loads of video effects too! To live stream, ATEM Mini has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors! Microphone inputs allow high quality desktop and lapel mics for interviews and presentations. ATEM Mini even has secret broadcast features built in so it can do high end work!

Faster Video Production Plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, web sites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!

Self Contained Broadcast Quality Switcher

ATEM Mini features a compact control panel based design with all video, audio and control connections on the rear panel. The front panel includes easy to use buttons for selecting sources, adjusting audio inputs, as well as selecting video effects and transitions. The rear panel includes HDMI inputs for connecting cameras or computers, plus additional microphone inputs. The ATEM Mini program is output via an HDMI video out as well as a USB for webcam output. The front panel buttons are large and easy to use by feel, so it’s even possible to use the switcher while presenting! You also get audio mixer buttons for live audio mixing. The fade to black button "FTB" lets you fade down at the end of your program.

Easy to Use and Fast to Learn!

ATEM Mini is very easy to use, as you simply press any of the input buttons labelled 1 to 4 on the front panel to change or cut between video sources. You can choose between cut transitions or effects transitions by selecting the cut or auto buttons on the panel. Unlike cut, the auto button tells ATEM Mini to use a selected video effect when switching between inputs. You can select from exciting transitions such as a commonly used dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for picture in picture effects and you can instantly set up different picture positions from the buttons on the control panel. There is even a still store for titles and graphics accessible via external software control.

Stream Live Interviews

ATEM Mini is perfect for interviews as you can connect multiple cameras for close ups of the host, interviewee and wide shots, plus ATEM Mini is so small the host can even switch in small studios. You can record via the HDMI output or live stream using Open Broadcaster software!

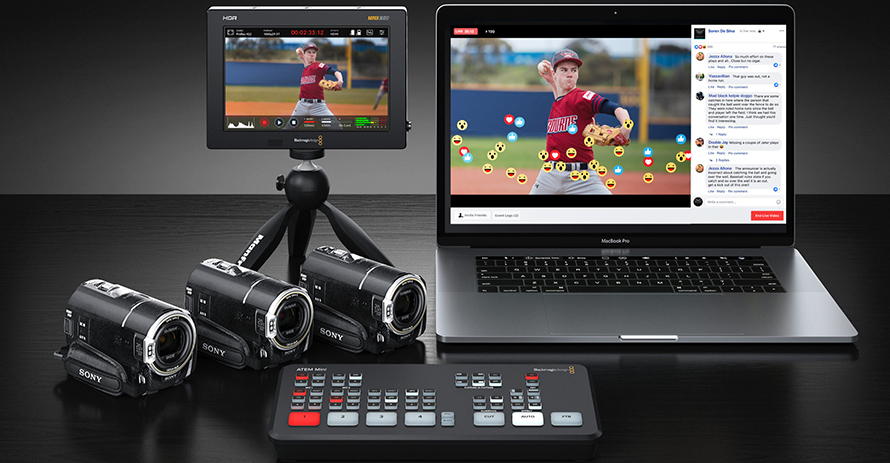

Connect up to 4 Independent Cameras

With 4 independent HDMI inputs, you can connect up to 4 high quality consumer video cameras. Video cameras with HDMI outputs are dramatically better quality than simple webcam cameras as they use higher quality lenses plus have much better low light sensitivity. All connected sources will re‑sync to the switcher if they operate at different video standards, which means all inputs just work and you can handle unknown equipment if you are visiting new venues or locations. Because cameras with HDMI often support interchangeable lenses, you can change to wide angles lenses for wide shots and zoom lenses for closeups. Imagine using the low light capability of professional cameras for theater production and music videos!

Outputs to HDMI Video and USB Webcam!

To ensure the maximum compatibility possible, ATEM Mini features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher! That guarantees full compatibility with all software in full resolution 1080HD quality. Choose any software you like, such as Open Broadcaster for live streaming, or Skype for point to point presentations. ATEM Mini works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Twitch TV, Periscope, Livestream, Wirecast and more!

Add Exciting Video Effects

One of the benefits of ATEM Mini is the professional production values that are possible using the range of built in video effects! The cut button ensures an instant cut when switching between sources. The auto button is a professional term that's used on large broadcast switchers to enable video effects transitions. There are also duration buttons for video effects allowing 0.5, 1, 1.5 and 2 second settings. You can also select the type of effect you want including fade which does a smooth transition between sources and dip which fades via a color during the transition. Or use fun DVE effects that move the image off screen when transitioning between sources!

Record to Video for YouTube Uploads

The HDMI program output is perfect for connecting ATEM Mini into an external recorder or monitor! supports recorders such as the HyperDeck Studio Mini and Blackmagic Video Assist. You get a high quality output with switcher program video, plus live audio from the internal audio mixer. The HDMI output can even be connected to video projectors in large venues. If you connect the ATEM Software Panel you can even change the HDMI output direct from any of the video inputs. There's also a low latency setting allowing output of connected gaming consoles on the HDMI output. If you enable broadcast style mix effects switching, the HDMI output can be used to preview sources before a transition.

Specifications

Connections

Total Video Inputs 4
Total Outputs 2
Total Aux Outputs 1
Total Audio Inputs 2 x 3.5mm stereo mini jack.
Total Audio Outputs None, embedded audio only.
Timecode Connection None
HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync On all 4 HDMI inputs.
Frame rate and format convertors On all 4 HDMI inputs.
HDMI Program Outputs 1
Computer Outputs 1 x USB Type-C 3.1 Gen 1.

Standards

HD Video Input Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards None
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space Rec 709
HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz
Colorspace Conversion Hardware based real time.
Audio Mixer 6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Product Specifics

Upstream Keyers 1
Downstream Keyers 1
Advanced Chroma Keyers 1
Linear/Luma Keyers 2
Transition Keyer DVE only.
Total Number of Layers 4
Pattern Generators 1
Color Generators 2
DVE with Borders and Drop Shadow 1
Interface Minimum monitor resolution of 1366 x 768.

Media Player

Media Players 1
Channels Fill and key for each Media Player.
Media Pool Still Image Capacity 20 with fill and key.
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel Built in control panel. Software control panel included. Supports optional hardware panel.
Control Panel Connection Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM Mini supports direct USB-C connection.
Control Panel Compatibilty Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 10.

Software

Software Updates Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Operating Systems Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows 10.

Power Requirements

Power Supply 1 x External 12V power supply.
Power Usage 18W

Physical Specifications

Dimensions 237.5 x 35 x 103.5mm
Weight 550g

Environmental Specifications

Operating Temperature 5° C to 40° C (41° - 104° F)
Storage Temperature -10° to 60° C (14° to 140° F)
Relative Humidity 0% to 90% non-condensing

Warranty

Warranty 12 Months Limited Manufacturer's Warranty.
