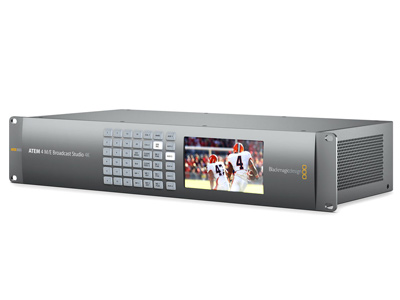

http://www.lemac.com.au/site/DefaultSite/filesystem/images/blackmagic/ATEM4MEStudio4K.jpg The world’s most advanced high frame rate Ultra HD 2160p60 switcher with 20 inputs, 4 M/Es and a massive 16 next generation ATEM Advanced Chroma Keyers.

SEARCH SHOP

Blackmagic

Blackmagic ATEM 4 M/E Broadcast Studio 4K

Item Code: NMA/SWATEMRRW4ME4K

The world’s most advanced high frame rate Ultra HD 2160p60 switcher with 20 inputs, 4 M/Es and a massive 16 next generation ATEM Advanced Chroma Keyers.

RRP: 0   Save:

  • Qty:
  • Price:
    $8,465.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a live switcher designed for HD and UHD 4K broadcast productions. Twenty 12G-SDI inputs support UHD 4K video up to 59.94 fps, and are backward compatible with 1080p, 1080i, or 720p sources as well (inputs do not feature scaling, so all sources must be of the same resolution). All inputs are frame synchronized, so non-genlocked sources can be used. Audio is supported via all SDI inputs plus 2 sets of dedicated analog stereo inputs via XLR and RCA. For in-the-box mixing, connect a computer running ATEM software control, and have immediate control of all audio channel inputs. Connections for timecode, reference, and control are also available. SDI outputs are available for program and preview, and they can operate at either HD or UHD resolutions, just like the inputs. Two preview outputs allow you to spread your multi-view over two displays.

Like its namesake, the ATEM 4 M/E Broadcast Studio 4K features four mix-effects buses for creating advanced effects to boost production value. Within each mix-effects bus, there are 4 built-in upstream keyers, for a total of 16 keyers, enabling your production to take advantage of many video and graphics layers simultaneously. Two downstream keyers for bugs, logos, and global lower-thirds are also available. The built-in DVE processing lets you adjust video streams with control over size and rotation, plus, 3D borders, drop shadows, and lighting effects are also available.

Other connectivity includes Ethernet for adding control surfaces, or for remote control over a network. USB connectivity allows for the ATEM switcher's firmware to be updated in the future, and for internal settings. The entire chassis of the ATEM 4 M/E Broadcast Studio 4K fits inside a standard 19" equipment rack, only requiring 2 RU of space. Internal redundant power supplies require separately available standard IEC cables for power.

Creative Transitions

ATEM live production switchers have a choice of transitions including Cut, Mix, Dip and Wipe patterns. Key frame based DVE moves, flying graphics and animated stingers are also integrated. Every transition is instantly available and you get full control of the transition type, pattern, length and more.

Upstream Keyers

ATEM live production switchers include powerful upstream keying for broadcast effects. Layer live video, titles, graphics and animation over live video or graphic backgrounds with incredible quality using chroma, luma, linear and pattern keying. The ATEM 4 M/E Broadcast Studio 4K features 16 total upstream keyers for advanced layering.

Downstream Keyers

ATEM switchers feature two downstream keyers so you can insert high quality graphics like logos, bugs and titles over the live 'on air' program output. Downstream keyers are the last layers of keying so they overlay all video switched to the main program. You can also easily bypass the downstream keyers by using the clean feed aux outputs. This means you can record the clean feed as your master and use the downstream keyers for overlays that you only want on air.

DVE

Digital video effects, or DVE, lets you control size, position, rotation of an incoming video stream and features 3D borders, drop shadows and lighting. You can save customized DVE positions and automatically trigger the picture to animate full screen or zoom.

Audio Mixer

Open the audio mixer control tab on your Mac or Windows device and you get complete multi track mixing control with level meters You can precisely direct camera and external audio with level and balance adjustments, enable and disable channels or activate audio follow video mode instantly. You can also connect to Mackie standard USB audio mixer panels, giving you hardware feedback and the feel of flying faders and meter displays.

SuperSource

In addition to the mix-effects buses, keyers, and video effects, SuperSource layering provides an additional 4 independent DVE channels so you can resize and position live cameras, video replays, broadcast graphics and more. SuperSource is like having an additional multi-layer VFX switcher built in. For example, you would be able to take four video feeds and incorporate them picture-in-picture for live interviews during your broadcast.

Multiview Flexibility

Multi view makes it easy to see your cameras, graphics, preview and program outputs on single screen. That means you don't need lots of monitors to see all your individual cameras. Use the two multiview outputs to spread up to 16 inputs across two screens.

Switchable TV Standards

With the ATEM 4 M/E Broadcast Studio 4K you have the flexibility to work in different standards at any time. If your other equipment only supports HD, the ATEM 4 M/E Broadcast Studio 4K has the processing capabilities for switching to 4K when you're ready.

Internal Media Players

You can store broadcast quality RGBA graphics in the media pool ready for instant playback via the ATEM media players. The two media players appear as input sources to your switcher. You can transition to graphics as full frame video or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG and TIFF are supported.

Photoshop CC Plugin

With the included Photoshop CC plug-in, you can create graphics live and then instantly download them into the ATEM media pool. Designers can create professional broadcast graphics such as logos, lower thirds, scorecards and other real-time graphics that can be downloaded directly to instantly change live graphics as they come in.

Specifications

Standards
Format Support 3840 x 2160: 59.94/50/29.97/25/24/23.98
1080p 59.94/50/29.97/25/24/23.98
1080i 59.94/50
720p 59.94/50
SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 2082
Connectivity
Inputs 12G/6G/3G/HD-SDI: 20 x BNC
Stereo Analog Audio: 1 x 2XLR, 1 x 2RCA
Talkback: 1 x XLR
Timecode: 1 x XLR
Reference: 1 x BNC
Outputs SDI Monitor: 2 x BNC
SDI Program: 3 x BNC
SDI Aux: 6 x BNC
SDI M/E 1 Preview: 1 x BNC
SDI M/E 2 Program: 1 x BNC
Analog Audio: 4 x XLR
Timecode: 1 x XLR
Talkback: 1 x XLR
Other I/O Network: 1 x RJ45
Computer: 1 x USB 2.0 Type-B
RS-422: 1 x DE-9
Processing
Processing Delay <7 lines
Video Sampling 4:2:2
Color Space REC 601
REC 709
REC 2020
Color Precision 10-bit
Audio Mixer 24-input mixer (2 channels per input)
Built-in Media Players
Quantity 4
Clip Capacity Quantity
2 with fill and key

Maximum Clip Length
UHD: 360 frames
1080p/i: 1440 frames
720p: 3200 frames
Still Image Capacity 64 with fill and key
Image File Formats Still
PNG, TGA, BMP, GIF, JPEG, and TIFF

Video
TGA sequence

Audio
WAV, MP3, AIFF
Multi-View Monitoring
Display Minimum monitor resolution: 1366 x 768
Number of Windows 2 x Multi-view displays with 10 x windows for Preview/Program
16 x assignable displays
Tally Red for program and green for preview indication

Note: Requires optional Blackmagic Design GPI and Tally interface product
Extras
Layers 29 Total
Keyers 16 x Upstream
2 x Downstream
19 x Linear/Luma
1 x Stinger
16 x Chroma
1 x DVE
Generators 7 x Pattern
2 x Color
Power
Power Supply 2 x built-in power supply
110/240 VAC, 50/60 Hz

Note: IEC power cord required, not included
Power Consumption 300 W
General
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Relative Humidity 0 to 90% non-condensing
Rack Size 2 RU
Dimensions (W x H x D) 19 x 3.5 x 9.25" / 48.3 x 9 x 23.5 cm
Weight 6 lb / 2.72 kg
