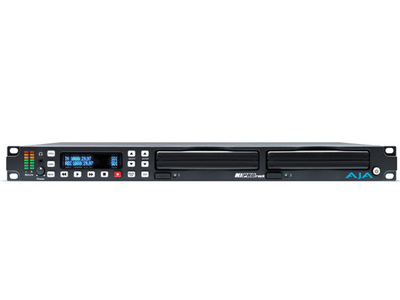

AJA Ki Pro Rack - File Based 1RU Recorder and Player

Item Code: BLO/AJA-KI-PRO-RACK

With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system.

RRP: 0   Save:

  • Qty:
  • Price:
    $3,065.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The power of Ki Pro in a 1RU format, the perfect fit for your file based workflow.

With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. Ki Pro Rack also features AJA’s industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.

Transition to File Based Workflows

For video facilities transitioning from tape to file based workflows for recording and playback, Ki Pro Rack offers high quality, 'ready-to-edit' file capture, designed to get material from source to editorial as quickly as possible.

With a wealth of professional connections, Ki Pro Rack will fit right into your existing cabling and routing system and record 10-bit Apple ProRes and Avid DNxHD files direct to removable hard disk or SSD Storage Modules, eliminating the need for time-consuming logging and capturing. The files can be used in most editing systems without the need for additional transcoding or importing processes.

Unify Formats -
Speed Workflows

AJA's high quality up, down, cross-conversion makes it easy to unify SD, 720p, and 1080i and create a single desired format for your project. The multitude of video and audio connections such as SDI, HDMI and analog make integrating Ki Pro Rack with other production equipment easy.

RS-422 Control

RS-422 control allows Ki Pro Rack to integrate easily with supported editing systems and external controllers allowing it to fulfill several of the functions of a traditional VTR. Supported NLEs can even perform assemble edits directly to the Ki Pro Rack.

Ki Pro Rack’s RS-422 control can also be used to link a traditional VTR with Ki Pro Rack for direct editing control. Use the editing controls on properly equipped VTRs to control Ki Pro Rack for machine to machine transfer of video and audio. This allows tape footage to be captured directly as files on Ki Pro Rack without the need for a separate edit controller.

10-bit, Full Raster Recording

Big on quality - but not on file size. Recording 10-bit, full raster files, Ki Pro Rack gives you high quality images that easily stand up to post processing requirements - and client scrutiny.

Compared to 8-bit recording devices, 10-bit 4:2:2 recording (when supported by the codec) provides better quantization, giving a superior representation of the original scene and allowing for more flexibility in postproduction when adjusting color and balance.

By utilizing efficient ProRes and DNxHD codecs, file sizes are kept in check so you won't need to blow your production budget on extra storage.

Ki Protect

Ki Pro Rack includes Ki Protect, a feature that helps to ensure data integrity if a media drive is accidentally removed or loses power during recording. The Ki Protect feature automatically pre-allocates recording space on the media drive for video, audio and timecode when the record button is pressed.

While recording, the file header is then continuously updated every time new data is written. That way, the only loss that should be incurred is the last few frames that were in transit to the media drive to be recorded when the operation was interrupted. Frames that are already recorded will be preserved and are recoverable, providing greater peace of mind on set and in the studio.

Reliable Storage Media

Ki Pro Rack captures directly to reliable AJA KiStor media. KiStor media are available as HDDs or SSDs in a variety of capacities to best suit the demands of your production environment. KiStor modules also feature built-in USB 3.0 connectivity for direct connection to your editing system using standard interfaces. KiStor media may also be used with the optional KiStor Dock which features a Thunderbolt™ connection for lightning fast data transfers.

Utilizing the rollover recording capability with the dual media drive bays, recording can start on one media module and seamlessly continue onto the second module once the first has reached capacity. This makes Ki Pro Rack ideal for long form recording needs while maintaining incredibly image high quality.

Familiar Controls
and Operation

Anyone familiar with the operation of a tape deck will feel immediately comfortable when working with Ki Pro Rack.

Just like a traditional tape deck, Ki Pro Rack features straightforward and dedicated transport buttons - record, play, stop, rewind, fast forward - making the device easy to operate with minimal training time. The current status of the system and key configuration information is clearly displayed on the built-in screen. Additional operational information can be found in the STATUS menu which can be accessed even when recording or playing back.

The Ki Pro Rack operating system offers users a flat menu structure that is easy to navigate with menu parameters presented in clear and understandable language.

Automation

Ki Pro Rack goes beyond traditional tape decks with sophisticated play out and automation capabilities. Because Ki Pro Rack is file based, any clip can be instantly queued up and played either from the front panel or via the built-in Ethernet connection - with no seek time. Complete developer tools are available, allowing advanced users to script and automate Ki Pro Rack and other Ethernet equipped AJA products for custom applications.

Closed Caption Support

If you need to record or playout video with Closed Captioning embedded, Ki Pro Rack is fully compatible with your needs.

Ki Pro Rack recognizes CEA-708 within incoming SDI Inputs and encodes the Closed Captioning to your Apple ProRes recorded file. Upon playback, you can utilize the Closed Captioning within a recorded file over Ki Pro Rack's SDI outputs.

Professional Connections

The video and audio connections on the rear panel of the Ki Pro Rack offer the same standard connectors found on traditional tape decks, allowing Ki Pro Rack to integrate easily with your current cabling and routing. The rear connections include SDI, HDMI, component analog, AES and analog XLR balanced audio, LTC, RS-422 and LAN.

Ethernet File Transfer

Utilizing the LAN network functionality, media can be copied to and from the Ki Pro Rack over the Ethernet connection. This allows for fast file transfers without the need to physically remove the media from the Ki Pro Rack, which can be especially useful in larger facilities and cuts down dramatically on the number of people that have to enter the machine room, minimizing the risk of unintentional interference with equipment.

Remote Configuration and Operation

In a truck or a machine room, Ki Pro Rack is equipped for advanced remote control and configuration. With a standard Ethernet LAN connection to a host computer and any web browser, all Ki Pro Rack parameter settings, clip selection and transport controls can be controlled; no additional or special software installation is required on the host computer. Multiple Ki Pro Rack units can even be controlled from a single web interface making Ki Pro Rack an ideal solution for multi-camera recordings.

AJA DataCalc

Calculate your storage needs before digitizing even begins and keep your team on track.
Gatekeeper certified for OS X.

Note: the AJA Data Rate Calculator is provided as part of the system installation for all KONA cards, Io Express, and the Io HD.

Specifications

Video InputDigital:
SD/HD-SDI x2:
(1 channel, selectable input / SMPTE-259/292/296)
HDMI x1

Analog:
SD/HD component x3 BNCs:
(SMPTE/EBU N10, Betacam 525 line, Betacam 525J, YPbPr 12-bit A/D, 2x oversampling)
Video OutputDigital:
SD/HD-SDI x1:
(SMPTE-259/292/296)
HDMI x1

Analog:
Composite x1 BNC:
(NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling)
SD/HD component x3 BNCs:
(SD: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit D/A, 8x oversampling)
(HD: YPbPr, RGB 12-bit D/A, 2x oversampling)

(all video outputs are simultaneously active)
Audio InputDigital:
24-bit, 8-channel AES x4 BNCs (48kHz)
24-bit, 8-channel SDI-embedded (48kHz)
2-channel HDMI-embedded

Analog:
24-bit 2-channel balanced A/D XLR x2 (48kHz)
Input level: line
Audio OutputDigital:
24-bit, 8-channel AES x4 BNCs (48kHz)
24-bit, 8-channel SDI-embedded (48kHz)
2-channel HDMI-embedded

Analog:
24-bit 2-channel balanced D/A x2 XLR (48kHz)
Network10/100/1000 Ethernet (RJ45)
Embedded web server for remote control
User Interface2 x 20 character display panel, with dedicated buttons
TimecodeLTC timecode input and output via SDI-embedded RP188 timecode
On-screen timecode display on SDI 2 output
Serial PortRS-422 (slave pinout) / 9-pin (available beginning with version 2.0 firmware)

Connector pinout:
1 GND
2 TX -
3 RX +
4 GND
5 No Connection
6 GND
7 TX +
8 RX -
9 GND
Shell GND
Conversion10-bit hardware up-conversion:
Anamorphic: full-screen
Pillar box 4:3 -- results in a 4:3 image in center of screen with black sidebars
Zoom 14:9 -- results in a 4:3 image zoomed slightly to fill a 14:9 image with black sidebars
Zoom letterbox: image zoomed to fill screen
Zoom wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio change

10-bit hardware down-conversion:
Anamorphic: full-screen
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: image is cropped to fit new screen size

10-bit hardware cross-conversion:
1080i to 720p
720p to 1080i
Storage Module Drive Bays2 (each with eject button and select LED)
PowerVoltage: 100-240 VAC
Typical operating power: 40W
TemperatureOperating temperature: 41 to 104°F (5 to 40°C)
Safe storage temperature (with power off): -4 to 140°F (-20 to 60°C)
Rack Height1RU
Dimensions1.75 x 19 x 12.5" (4.45 x 48.26 x 31.75 cm)

(12.5" depth spans from the front panel to the back of the deepest connector)
