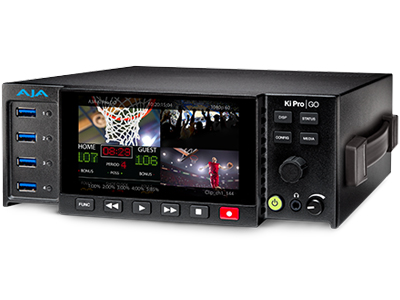

AJA Ki Pro GO - Multi-Channel Recorder/Player

Code: BLO/AJA-KI-PRO-GO
Ki Pro GO is a portable multi-channel H.264 recorder and player offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives with redundant recording capabilities.

For purchasing information

Enquire Now

Key Features

  • Multi-channel H.264 recording and playback
  • Redundant recording
  • Genlock free inputs
  • 5x USB recording media slots, compatible with off-the-shelf USB 3.0 media
  • 4x 3G-SDI inputs & 4x HDMI inputs
  • HDMI multi-channel matrix monitoring
  • Selectable VBR recording profiles
  • Balanced XLR analog audio inputs, mic/line/48v switchable. 2-channel embedded audio per video input
  • Easy-to-use web UI, compatible with standard web browsers
  • Front panel button controls with integrated HD resolution screen
  • Stand-alone operation

Ki Pro GO is a portable multi-channel H.264 recorder and player offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives with redundant recording capabilities.

4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provides connections to the latest video sources, including cameras. Incoming video sources can be mixed and matched, via Ki Pro GO's Genlock free recording capability. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI display.

Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO is well suited for use in any environment.

High Quality H.264 Recording and Playback

  • Multi-channel recording and single channel playback
  • Selectable VBR recording profiles
    • Low
    • Medium
    • High
  • 5-25 Mbs Assignable bit-rates,
    • 8 or 10-bit HD/SD Image quality
    • 4:2:2 and 4:2:0 selectable chroma subsampling
  • .MP4 or .Mov Codec Containers
  • Compatible with any H.264 playback platform from software players to OTT services

Powerful I/O and Flexible Recording to USB 3.0

  • 4x HDMI inputs
  • 4x 3G-SDI inputs
  • Genlock free inputs
  • Set and forget - assign any combination
  • 5x USB recording media slots, compatible with off the shelf USB 3.0 media of four inputs to any four recording channels
  • Redundant recording with primary and backup channel assignments to any of the five USB slots.

Intuitive Interface, Multi-Channel Monitoring

  • HDMI and SDI multi-channel matrix monitoring
  • Easy to use web UI, configure and control from standard web browsers anywhere
  • Front panel button controls with integrated HD resolution screen
  • Stand-alone operation
  • Three year warranty
Video Formats (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94
(HD) 1080i 50, 59.94*
(HD) 1080PsF 23.98, 24, 25, 29.97*,**
(HD) 720p 50, 59.94
(SD) 525i 59.94*
(SD) 625i 50*

*Recording will be converted to progressive
**PsF input support only

Video Codec Support Supports H.264/MPEG-4
1 Mbps to 25 Mbps recorded output (TBD)
Audio Codec Support 4x audio compression codecs
2-Channel audio support for each
up to 320 kbps (TBD)
MPEG-4 AAC-LC
Codec Container .MP4
.MOV
Removable Storage 5x USB 3.0 Slots
5V 1A max current per slot
All slots are compatible with the following standards:
  • USB 2.0
  • USB 3.0
  • USB 3.1 Gen 1
  • USB 3.1 Gen 2
File System Support FAT file systems:
  • FAT16
  • FAT32
  • exFAT
Video Input 4x 3G-SDI BNC, SMPTE-259/292/296/424/425, 4:2:2 10-bit
4x HDMI standard Type A connector
HDMI v1.4a
  • 4:4:4 RGB 8, 10-bit (deep color)
  • 4:2:2 YCbCr 8/10/12-bit
  • 4:2:0 YCbCr 8-bit
Video Output 5x 3G-SDI BNC, SMPTE-259/292/296/424/425, 4:2:2 10-bit
1x HDMI standard Type A connector
HDMI v1.4a
  • 4:4:4 RGB 8, 10-bit (deep color)
  • 4:2:2 YCbCr 8/10/12-bit
  • 4:2:0 YCbCr 8-bit
Audio Input 4x SDI Audio
  • 2-Channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
  • Sample rate converted to 48 kHz internally
4x HDMI Audio
  • 2-Channel, 24-bit HDMI embedded audio
  • 32 kHz, 44.1 kHz, 48 kHz sample rates, synchronous
  • Sample rate converted to 48 kHz internally
2x XLR input
  • Line/Mic/+48V Phantom Power Mic Levels supported (selectable by rear switch)
  • +24 dB full scale digital
  • +/- 0.3 dBFS 20 Hz to 20 kHz response
  • THD+N <= -90 dB
Audio Output 5x SDI embedded
  • 2-Channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
1x HDMI embedded
  • 2-Channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
2-Channel unbalanced 2x RCA connectors
Video Conversion Deinterlacing for recording
Interlacing for playback (optional)
PsF to progressive
Reference Input External, 2x BNC
Looping, nonterminating
Input reference formats: (HD) Tri-level sync
  • 720p 59.94
  • 720p 50
  • 1080i 59.94
  • 1080i 50
  • 1080p 23.98
  • 1080PsF 23.98
  • 1080p 24
  • 1080PsF 24
(SD) Analog composite
  • 525i 59.94
  • 625i 50
Timecode SDI RP188/SMPTE 12M via SDI BNC
Network Interface 1x LAN connector (RJ-45 connector, 10/100/1000)
Embedded web server for remote control
Remote control via REST
User Interface Rotary Selector knob
Dedicated backlit transport controls and menu buttons
Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays
Size (w x d x h) 8.64" x 10.59" x 3.31" (219.46 x 268.60 x 84.08 mm)
Weight 5.1 lbs (2.3 kg)
Power Dual, redundant, 7.5A max, 40W-55W typical-90W Max
  • 100-240 VAC 50/60 Hz (adapter)
  • 12-18Vdc 4-pin XLR (chassis)
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
