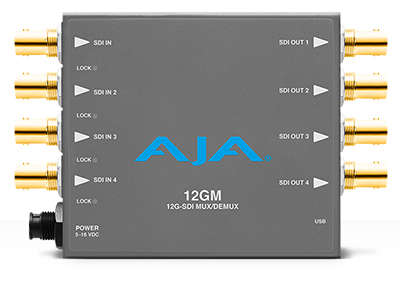

AJA 12G-SDI Muxer/DeMuxer

Item Code: BLO/AJA-12GM

12GM is a compact SDI transport converter that enables 12G-SDI to Quad-link 3G-SDI and Quad-link 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,375.00
    inc. GST

Found this item cheaper elsewhere? Let us know

12GM is a compact SDI transport converter that enables 12G-SDI to Quad-link 3G-SDI and Quad-link 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

Features

  • Compact 12G-SDI to/from quad-link 3G-SDI conversion and 6G-SDI to/from quad-link 1.5G-SDI
  • SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • Input signal diagnostics
  • Input timing analyzer for quad-link signals
  • Configurable as a 1x4 Distribution Amplifier for 12G, 6G, 3G and 1.5G bit rates
  • Automatic equalizing and reclocking with jitter attenuation
  • DWP-U-R1 power supply included
  • Five Year warranty
