Key Features

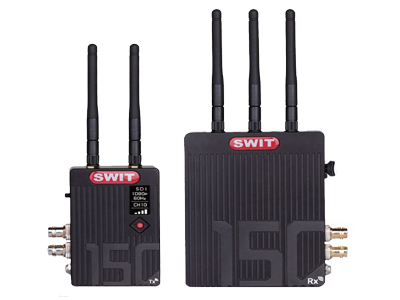

- 3GSDI & HDMI 150m Wireless System
- 150 meters (Line-of-Sight) distance
- Less than 1 millisecond latency
- OLED Display & Channel Switch
- Chip Level Encryption
- Instant Playback Mode
- Accurate Color Reproduction
OLED Display & Channel Switch
Both Tx and Rx are equipped with OLED to display
signal format, wireless channel and signal strength.
Support visualized wireless conditions of all 11
channels, and manually select a best one to work.*
*For DFS comply, use CH-0/1/2/3/9/10 only or switch to AUTO mode.
Instant Playback Mode
Some of the cine cameras like Alexa Mini, Red Raven,
when operate playback on the camera, the output
SDI clock was interrupted and will break the wireless
video transmission.
SW-M series provide the“ Instant Playback” mode, to
support the constant wireless video receiving.
Chip Level Encryption
The Transmitter and Receiver need to pair and work
encrypted. Supports Max 1 to 4 multicast. Any
unpaired receivers can’t been connected with the
Transmitter, in order to protect the camera footages.
Accurate Color Reproduction
Due to the wireless chip limitation, the normal
wireless systems cannot truely reproduce colors.
SW-M series made particular algorithm modifications,
to ensure a broadcast level accurate color reproduction
