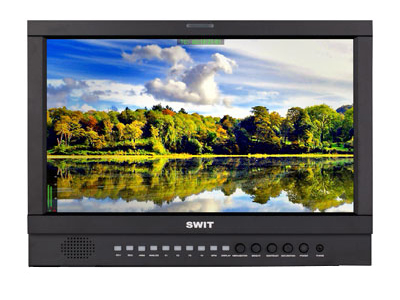

17" Swit S-1173 HD LCD Calibrated Monitor

Item Code:

The Swit S-1173H 17" Monitor uses a 17.3 -inch IPS (In-Plane Switching) LCD panel and features Full HD 1920×1080 resolution, LED backlight, and 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160° / Vertical: 160°.

RRP: 0   Save:

For purchasing information

The Swit S-1173H 17" Monitor uses a 17.3 -inch IPS (In-Plane Switching) LCD panel and features Full HD 1920×1080 resolution, LED backlight, and 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160° / Vertical: 160°.

Key Features

  • 17.3" LCD Panel, 1920×1080 resolution
  • 2K/3G/HD/SD-SDI, HDMI, Y/Pb/Pr, VGA, and CVBS monitoring options
  • 2-ch Embedded audio meters with alert
  • Focus assists
  • TSL UMD and text TALLY display

Specifications

LCD Performance

Size 17.3 inches
Display area 381.89×214.8mm
Resolution 1920×1080
Aspect ratio 16:9 ∕4:3
Brightness 300cd/m2
Contrast 700:1
Color 1677 million colors
Viewing Angle 160°(H)∕160°(V)

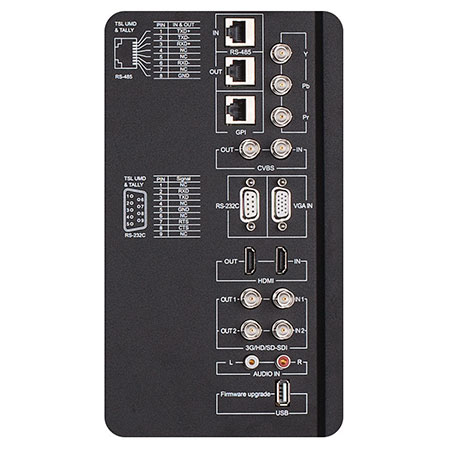

Input

BNC ×2 2K/3G/HD/SD-SDI input ×2
BNC ×3 Y/Pb/Pr input
BNC ×1 CVBS input
HDMI ×1 HDMI input
RS485 ×1 UMD input
RS485 ×1 GPI input
RS232 ×1 UMD
VGA ×1 VGA input
3.5mm RCA ×2 L/R audio input
USB ×1 USB input (firmware upgrade)

Output

BNC ×2 2K/3G/HD/SD-SDI Loop output
BNC ×1 CVBS Loop output
HDMI ×1 HDMI Loop output
RS485 ×1 UMD×1
3.5mm ×1 SDI/HDMI embedded audio output, analog audio output

Video Format

CVBS NTSC∕PAL
SDI SMPTE ST 2048-1: 2011 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Y/Pb/Pr 480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
VGA 640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768
1280×960 / 1280×1024 / 1600×1200

General

Working voltage AC: 100V-240V DC: 11V-17V
Power consumption ≤32W
Working temperature 0°C~+40°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 430×310×73mm
Net weight (w/o stand) 4.65kg
