Alphatron EVF Including FREE BAG

Alphatron

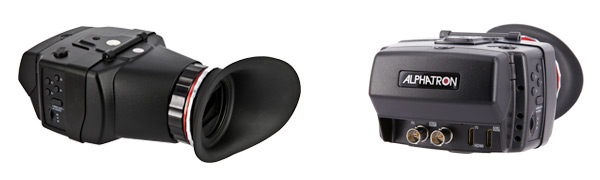

A collaboration between Alphatron and TV Logic, this Electronic ViewFinder features a 3.5" screen with ultra high 960x640 16x9 resolution, making accurate focusing easier than ever before.

Comes with a free, purpose built CamRade EVF Bag

Only available while stocks last
1695.45

  • Qty:
  • Price:
    $1,490.00
    inc. GST

T&Cs apply. Offer available until December 24th 2014 or while stocks last.

A collaboration between Alphatron and TV Logic, this Electronic ViewFinder features a 3.5" screen with ultra high 960x640 (the same as the iPhone 4S) 16x9 resolution, making accurate focusing easier than ever before.

In addition to it's high resolution display, this unit has HD-SDI loop-through capabilities, as well as HDMI in/out.

FEATURES:

  • 3.5" display (960x640, 16x9)
  • LCD (LED backlight)
  • HD-SDI loop-through
  • HDMI in/out
  • Focus assist
  • Phone jack for calibration
  • USB port for software upgrade
  • Adjustable diopter
  • Manual Lens Shutter for protection of the EVF LCD Monitor
  • Powered by NP-F battery (not included), or External DC 6-15V


Video

Andy Shipsides from Abel Cine talks about the Alphatron EVF at NAB 2012 - Video Source: Abel Cine



Alphatron EVF testimonial with Alister Chapman - Video Source: Alphatron Broadcast on Youtube

Specifications

Display * LCD ( LED Backlight )
* 3,54" (960x640, 16:9)
* 500cd/㎡
* 1000 : 1
* 24bit RGB
* 160˚(H) / 160˚(V)
Interface Input * 1 HDMI
* 1 BNC (3G/HD/SD-SDI)
Output * 1 HDMI
* 1 BNC (HD/SD-SDI)
Miscellaneous * Phone Jack for Calibration
* USB for S/W Upgrade
Features Basic * Brightness
* Contrast
* Color Temperature
* Sharpness
Advanced * Various Scan Mode
* Markers, User Aspect
* Zoom, Blue Only
Professional * HD Video 3G Level A/B
* Audio Level Meter
* Time Code Display
* Range Error, Zebra Pattern,
* Luma(y') Zone Check, Focus Assist
* Internal Colourbar + Pluge Pattern
* HDMI-to-HDSDI Conversion Out
* HDMI~HDMI A. Loop Through
* SDI~SDI  A. Loop Through
General * Magnesium Housing-Light Weight (480 gr./1,06 Lbs.)
* Adjustable Diopter
* Manual Lens Shutter for protection of the EVF LCD Monitor
* Power: NP-F Battery (not included), External DC 6-15V
