Zoom

Zoom F8 MultiTrack Field Recorder

Item Code: DYN/FXR108

The F8 is made for serious filmmakers and sound designers. With 8-input/10-track recording, super low-noise preamps, and support for 24-bit/192kHz audio, the F8 captures the highest-quality audio.

RRP: 0   Save:

For purchasing information

Features at a glance

  • 8-channel/10-track field audio recorder/mixer
  • 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
  • Compact and lightweight aluminum chassis, weighing just 2 pounds (without batteries)
  • High quality mic preamps with up to 75 dB gain, less than -127 dBu EIN, and +4 dB line inputs
  • Support for up to 24-bit/192 kHz recording as well as 96 kHz, 88.2 kHz, 48 kHz, and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility; 16-/24-bit resolution
  • Accurate Time Code (0.2 ppm) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
  • Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
  • Automatic switching of power source from DC to batteries at user-defined voltage levels
  • Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
  • Phantom power (+48V/+24V) on every input
  • Advanced onboard limiters for input and output
  • High pass filter, phase invert, and Mid-Side decoder
  • Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
  • Compatible with Zoom microphone capsules; optional extender cable enables remote positioning
  • Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
  • Dedicated headphone output (100mW) with front panel volume control
  • 2.4" full-color backlit LCD with monochrome mode
  • Dedicated PFL display with viewable trim settings
  • Dual SD/SDHC/SDXC card slots, up to 512 GB each
  • Records in BWF-compliant WAV or MP3 file formats
  • Support for extensive metadata (BWF and iXML); input time, date, project, scene number, etc.
  • Built-in slate mic/slate tone with front panel switch
  • Built-in tripod mount; camera mount adapter also included
  • Use as an 8-in/4-out USB audio interface (@ 96 kHz)
  • Free Zoom F8 Control App for iOS allows wireless remote control, file renaming, and metadata entry

Additional Information

Dual SD card recording

Record on two SD/SDHC/SDXC cards, up to 512 GB each simultaneously, allowing you to instantly backup or split recordings (for example, save eight tracks onto one card and a stereo mix onto another).

Three power sources

A 4-pin Hirose connector allows the use of external 9-16 volt DC battery packs. Internal power is provided by 8 AA batteries. The F8 can switch power sources from a DC battery pack to the AA batteries at a user-defined voltage level for uninterrupted recording. You can also use the supplied 12 volt AC adapter when not on the go.

File protection

Files are saved periodically during recording. This provides an extra level of protection in the event of unexpected file interruption, for example, power loss or the removal of an SD card.

Dual-channel recording

The F8’s dual-channel recording mode allows you to create safety tracks on inputs 1-4, each with independent level, limiting, delay, phase inversion, and high-pass filtering.

Pre-record

The pre-record function allows you to capture up to 6 seconds of audio before you hit the RECORD button.

Comprehensive headphone monitoring

Out in the field, it's important to be able to quickly check levels as you're recording. With the F8, it's simple. A single display lets you monitor single or multiple tracks, as well as any of the Main or Sub outputs, via a dedicated ¼" headphone jack with a front panel volume control. Signals can be freely routed to the left and/or right headphone channels, pre- or post-fader, and the headphone output can be switched to mono. You can set headphone alert tones for low battery, recording start/stop, or recording errors. The F8 comes equipped with a built-in 100 mW headphone amplifier, allowing you to monitor in the noisiest of environments.

A first in the field

The F8 is the first field recorder to come with wireless Bluetooth control. The Zoom F8 Control App for iOS provides extensive wireless remote control of the F8 from your iPhone, iPad, or iPod Touch (5th Gen) using Bluetooth LE protocol. Functions include Record, Play, Stop, Fast-Forward, and Rewind, plus mixer pan and fader level. You can also monitor input levels, current time code, and battery status. With Zoom F8 Control, you can rename files, enter metadata, and set date/time information directly from your iOS device.

Included as standard

  • Camera mount adapter
  • Zoom AD-19 12V AC adapter
  • Operation manual
  • TA3 to XLR cable x2
  • Cubase LE and WaveLab LE download codes

Inputs

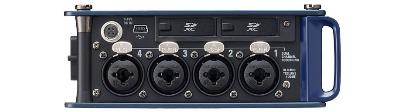

The F8 provides 8 discrete inputs with locking Neutrik XLR/TRS combo connectors. Each input has a dedicated gain control knob, a 6-segment LED level meter, and Record Ready and PFL switch. A 10-pin connector on the rear panel enables the use of Zoom mic capsules, with an optional extension cable that allows for remote positioning. There's also a built-in slate mic and a variable frequency slate tone generator to confirm levels.

Outputs

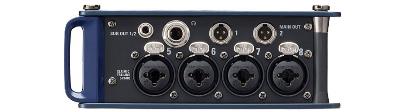

In addition to its ¼" headphone jack with dedicated volume control, the F8 provides four outputs: two Main Outs (on balanced TA3 mini-XLR jacks) for connection to external mixers and processing devices; and two Sub Outs (on a single unbalanced ⅛" stereo mini-jack) for connection to a camera.

Time code and USB

Time code I/O is provided on BNC connectors. A USB port enables firmware updates, file transfer, and allows the F8 to be used as an 8-in/4-out USB audio interface operating at sample rates up to 96 kHz.

The software

The F8's menu is easy to navigate and has a simple file structure. Cataloging is straightforward, with extensive metadata (both BWF and iXML), which can be entered directly on the F8 or with the Zoom F8 Control App.

Onboard mixer

The F8's onboard mixer enables flexible signal routing from all inputs to all outputs, either pre- or post-fader, with user-adjustable level, pan, and input/output delay. In addition to advanced onboard limiters (which can be applied to all channels and tracks simultaneously), the F8 also provides high-pass filtering to reduce the sound of wind and other noise, plus phase inversion and Mid-Side decoding.

Optional F8 Accessories

  • PCF-8 Protective case for F8
  • ECM-3 Extension cable for mic capsule (3m)
  • XYH-5 X/Y mic capsule
  • XYH-6 X/Y mic capsule
  • MSH-6 Mid-Side mic capsule
  • SGH-6 Shotgun mic capsule
  • SSH-6 Stereo Shotgun mic capsule

Video

Specifications

Inputs
Connectors 8x XLR/TRS combo jacks
XLR Inputs
Input Gain +10 to +75 dB
Input Impedance 3.3 kOhms
Maximum Input Level +14 dBu (at 0 dBFS, limiter ON)
Phantom Power +24/+48 V 10 mA maximum for each channel
Line Inputs
Input Gain -10 to 55 dB
Input Impedance 22 kOhms
Maximum Input Level +34 dBu (at 0 dBFS, limiter on)
Equivalent Input Noise -127 dBu or less (A-weighted, +75 dB input gain, 150 ohms)
Frequency Response 10 Hz to 80 kHz
Dynamic Range 120 dB typ (-60 dBFS input, A-weighted)
Crosstalk -69 dB or less (between adjacent channels, 1 kHz)
Mic Capsule: Zoom mic capsule input (use disables inputs 1/2)
Slate Mic: Built-in mic for voice memos can be assigned to tracks freely
Main Outputs
Connectors Main Out 1/2: TA-3 Connectors, balanced output (2: hot)
Sub Out 1/2: 3.5 mm stereo mini unbalanced output jack
Headphone: 1/4" unbalanced stereo output jack
Output Impedance Main Out 1/2: 150 ohms or less
Sub Out 1/2: 150 ohms or less
Headphones: 15 ohms or less
Reference Output Main Out 1/2: -10 dBV (normal output types), -40 dBV (mic output type, 1 kHz, 600 ohms load
Sub Out 1/2: -10 dBV (normal output types), -40 dBV (mic output type, 1 kHz, 10 kOhms load
Maximum Output Level Main Out 1/2: +10 dBV (normal output type), -20 dBV (mic output type), 1 kHz, 600 ohms load
Sub Out 1/2: +10 dBV (normal output type), -20 dBV (mic output type), 1 kHz, 600 ohms load
Headphone: 100 mW + 100 mW (1% or lower THD+N, 32 ohm load)
Dynamic Range D/A: 106 dB typ (-60 dBFS input, A-weighted)
Recording Formats
Supported Formats WAV: 44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit, mono/stereo//2-10 ch poly, BWF and iXML
MP3: 128/192/320 kbps, 44.1/48 kHz, ID3v1 tags
# Of Simultaneous Record Tracks WAV: 10 (8 inputs + stereo mix)
MP3: 2
Recording
Time Using a 32 GB card: 30:51:00 (48 kHz/24-bit stereo WAV), 7:42:00 (192 kHz/24-bit stereo WAV)
Time Code
Connector BNC
Modes Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to Timecode)
Frame Rates 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Precision ±0.2 ppm
Input Level 0.2 - 5.0 Vpp
Input Impedance 4.6 kOhms
Output Level 3.3 Vpp
Output Impedance 50 ohms or less
Power
Batteries 8x AA
AC Adapter AD-19 DC12V 2A (center plus)
External DC Source HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +), 9-16 V
Battery / Runtime When recording 2 channels at 48 kHz/16-bit
Alkaline Batteries: 7 hours or more
NiMH (2450 mAh): 9.5 hours or more

When recording 8 channels at 48 kHz/24-bit
Alkaline batteries: 2.5 hours or more
NiMH: 7 hours or more

When recording 8 channels at 192 kHz/24-bit with headphones, phantom power and display backlighting
NiMH (2450 mAH): 1.5 hours or more
Display 2.4" full-color LCD (320 x 240)
USB Class: USB 2.0 high speed
Interface As multi-track audio interface operation
Class: USB 2.0 high speed
Specifications: 44.1/48/96 kHz sampling rate, 16/24-bit bit rate, 8 in/4 out

Stereo Mix audio interface operation (no driver required)
Class: USB 2.0 full speed
Specification: 44.1/48 kHz sampling rate, 16-bit rate, 2 in/2 out
Dimensions (W x D x H) 7.02 x 5.50 x 2.16" (178.2 x 139.8 x 54.8 mm)
Weight 2.1 lb (0.95 kg)
Packaging Info
Package Weight 5.1 lb
Box Dimensions (LxWxH) 11.575 x 10.394 x 4.882"
