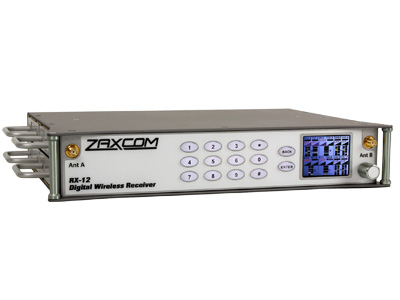

Zaxcom RX-12 12ch Wide Band Receiver

Zaxcom

RX-12 is a one stop receiver solution for your bag or cart. It contains a 35 MHz tracking front end filter to eliminate interference from unwanted stray RF, an RF amplifier and antenna and power distribution for up to six QRX212 dual receiver modules for the reception of twelve separate TRX transmitters.
To organise a demonstration

Zaxcom’s new RX-12 is a one-stop digital wireless receiver solution for your bag or cart. The RX-12 contains a 35 MHz tracking front-end filter to eliminate interference from unwanted stray RF, an RF amplifier and antenna and power distribution for up to six QRX212 dual receiver modules, for the reception of twelve separate TRX transmitters.

The built-in frequency scanner and Auto-Pick software can coordinate and choose the best frequencies. Pair the RX-12 with Nomad 10 or Nomad 12 and ZaxNet will re-frequency your transmitters to match with the touch of a button. In addition, the RX-12 and Nomad combo allows for quick and easy TRX gain adjustments.

RX-12 also has an additional antenna distribution through an amplified RF loop through.

Features at a glance

  • DECLUTTER — Portable all in one power and antenna distribution in any frequency you choose.
  • REMOVE THE GUESSWORK — After a spectrum scan, Auto-Pick automatically coordinates and chooses the best frequencies with the touch of a button.
  • INTERACT COLORFULLY — Full color LCD display with intuitive user interface and simple menu navigation.

Specifications

  • OUTPUT
    • Analog Audio Output: Balanced 0dB @ -20 dBFS (2-channel receiver)
    • DIgital Audio Output: AESEBU (2 pair per receiver)

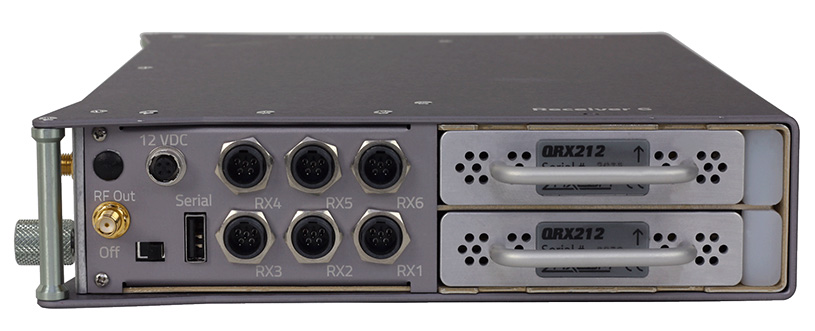

    • Audio Connectors: 6 x TA5M
  • RECEIVER
    • RF Connectors: 4 SMA, including loop through
    • RF Impedance: 50 ohm
    • RF Gain Input / Output: 4 dB
    • RF Amp Noise Figure: .5 dB
    • RF Amp IP3: +30 dB input
    • RF Filter Band Pass: 35 MHz
    • RF Tuning Range: 512 - 698 MHz
  • QRX212 MODULE
    • Receivers Per Module: 2
    • Receiver Modulation: Zaxcom Proprietary Digital
    • Tuning Range: 512 - 698 MHz
    • Power Consumption: 300 ma @ 12 VDC
    • Size: 5" x 3" x .8" (L x W x H)
  • MISC
    • Power: 8 VDC to 18 VDC (12 VDC nominal @ 100 ma)
    • Power Connector: Hirose HR10A-7P-4P
    • LCD Screen: TFT daylight readable color
    • LCD Size: 2.2" diagonal
    • Size: 10.5" x 8" x 2" (L x W X H)
    • Weight: 6.2 lbs (loaded w/ 6 x QRX212 receiver modules)
