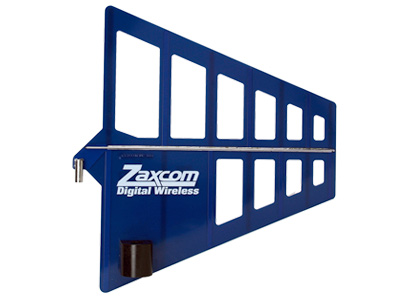

Zaxcom Bluefin Antenna

Zaxcom

Zaxcom’s BlueFin is an aerodynamic 8dB high gain directional antenna for use between the frequencies of 500 and 750 MHz. It provides a low VSWR for use as a receiving or transmitting antenna.
For purchasing information

Zaxcom’s BlueFin is an aerodynamic 8dB high gain directional antenna for use between the frequencies of 500 and 750 MHz. It provides a low VSWR for use as a receiving or transmitting antenna.

The BlueFin supplies 8dB of forward gain and attenuates interfering signals that are coming from directions greater than 45 degrees off the front of the antenna.

Features

  • Wide Band Reception - Receives any frequency between 500MHz and 750MHz
  • Aerodynamic - Cut-outs for wind make the BlueFin perfect for exterior locations
  • Reach Further - 8db of gain, the perfect companion for your QRX

SPECIFICATIONS

  • IMPEDANCE: 50 ohms
  • CONNECTOR: BNC Female
  • SIZE: 1′ x 1′
  • WEIGHT: >0.6 Pounds
  • MOUNTING: 5/8 Threaded Microphone Stand Mount
  • MAXIMUM TRANSMITTER POWER: 10 Watts
  • FORWARD GAIN: 8 dB
  • FREQUENCY RANGE: 500MHz to 750MHz
  • USABLE BEAM WIDTH: 90 Degrees
