Zacuto

Zacuto Gratical X EVF

Item Code: ZAC/Z-GRX

Customize your EVF to fit your individual needs with the Gratical X EVF. Start with our unmatched Micro-OLED screen, powerful FPGA dual core processor and crystal clear optics, then pick and choose from our wide selection of software features to build the package that’s right for you. Get exactly what you want and nothing more.

RRP: 0   Save:

For purchasing information

The Gratical X Micro OLED electronic viewfinder uses the same extremely powerful FPGA dual core processor and Micro-OLED display as the Gratical HD. The Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61” diagonal screen no bigger than the size of your thumbnail. The Gratical X allows you to customize your Gratical with the features you need.

You’ll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter ranges and Zacuto’s latest anti-fog coating formula. An auto-closing eyecup door prevents sunburn display automatically without any action by the operators.

Mount the Gratical X to your Next Generation Recoil via the 1/4 20 rosette on the side with an Axis Mini. You can also mount the Gratical X with the ¼ 20 screw hole in the bottom. Included is the LP-E6 style battery with charger and universal plug adapters.

Customize your EVF to fit your individual needs with the Gratical X EVF. Start with our unmatched Micro-OLED screen, powerful FPGA dual core processor and crystal clear optics, then pick and choose from our wide selection of software features to build the package that’s right for you. Get exactly what you want and nothing more. Perfect for those looking for a high end HDMI EVF but who want the option of using SDI in the future. The Gratical X can grow as your production needs grow.

Gratical X units not purchased directly from Zacuto will need to be activated on the Zacuto website. After activation, you are free to pick and choose your software features. All software is offered a la carte or you can save by buying a bundle.

Gratical X EVF Specs

Micro-OLED Display Connections & Compatibility
The Gratical X includes our 5.4 million pixel Micro-OLED screen. The screen has only a 0.61” diagonal display but with individually lit pixels you get a hugely expanded contrast range and a true black. This makes for a wider contrast range and more vibrant colors for a vivid, enhanced picture.

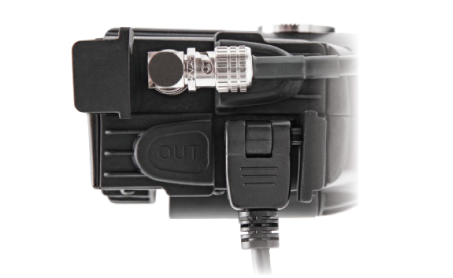

The Gratical X is an excellent choice if you’re looking for an HDMI electronic viewfinder but are looking to expand into SDI cameras in the future. It comes pre-loaded with HDMI and HD-SDI inputs functional. Outputs can be added independently for $125 each and cross conversion added for $95. Ports are protected with weather resistant covers to prevent moisture or debris from getting in the open ports.



HDMI – 1.4b compliant, resolutions up to 1080p/60, loop out
HD-SDI – Resolutions up to 1080p/60, loop out
Cross Conversion – HDMI to HD-SDI, independent LUT on output stream

Technical Specifications:

MICRO OLED DISPLAY

Screen Dimension 0.61” diagonal
Resolution
  • Full Display 1280x1024
  • 16x9 1280x720 HD
Contrast Ratio 10,000:1
Refresh Rate 60Hz
Color Depth 24 bit RGB
Luminance 120-250 cd/m^2
Pixel Info
  • 2687.21 PPI
  • 5.4 million pixels
  • 16.7 million colors

INCLUDED VIDEO PROCESSING FEATURES

Color Processor RGB, saturation, brightness, contrast
Test Pattern Color Bars & Macbeth
Eight programmable buttons
Frame Rates 23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97PsF, 50i, 50p, 59.94i, 60i, 60p

CONNECTIONS IN

HDMI 1.4b compliant, resolutions up to 1080p/60
HD-SDI Resolutions up to 1080p/60, loop out

POWER

  • Compatible with LP-E6 battery (7.8V 1800mAH LiON)
  • Battery run time ~ 3-4 hours depending on features used

ADDITIONAL FEATURES AVAILABLE FOR PURCHASE

  • Custom Scaling/User Presets
  • Zebra Stripes - Customize width, color, thresholds
  • Vectorscope
  • Waveform (3D)
  • Histogram (RGB, Luma)
  • Audio Meters
  • LUT import and editing
  • Red Line Peaking (multi-color)
  • False Color
  • Frame Store Feature
  • HDMI output
  • SDI output
  • Cross Conversion - HDMI to HD-SDI, independent LUT on output stream
