Zacuto

Zacuto Gratical HD EVF

Item Code: ZAC/Z-GHD

Introducing the Gratical series by Zacuto – a whole new concept EVF.

RRP: 0   Save:

  • Qty:
  • Price:
    $5,265.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Over two years in the making, Zacuto brought five different engineering companies together to bring this newest EVF concept to life. The Gratical HD Micro-OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and Zacuto designed Micro-OLED displays to provide a hugely expanded contrast range.

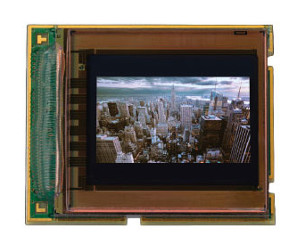

Micro-OLED Display

Our Micro-OLED display supports high pixel density with unparalleled resolution, true blacks, gamma and contrast range. The Gratical HD has 5.4 million pixels on a 0.61” diagonal screen no bigger than the size of your thumbnail.

Connections

The Gratical HD includes two HDMI and two SDI ports with cross conversion from HDMI to SDI. Weather resistant covers prevent moisture or debris from getting in open ports.

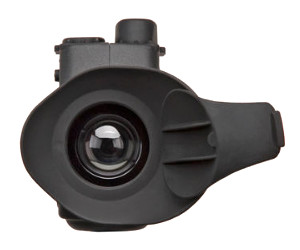

High Quality Precision Optics

You’ll be amazed with how sharp the image is. The internal field of view is just the right size so that the image is large, but not so that your eye has to roam to see the entire image at once. It features a built in -1 to +4 diopter range and Zacuto’s latest anti-fog coating formula. An auto-closing eyecup door prevents sunburn display automatically without any action by the operator.


Next Generation Recoil Rigs & the Gratical HD: the perfect match

Zacuto’s universal Next Generation Recoil Rigs are all about BALANCE! You cannot shoot with a rig that is not balanced, you’ll be fighting fatigue on long shoots. Whether you’re shooting TV, film, documentary, wedding or news, a balanced shoulder mounted rig will keep your shots steady and allow you to shoot the whole day.

Recoil rigs place the balance point directly over your shoulder, pushing focus and monitoring further forward, creating a lighter and shorter rig. The Gratical HD Micro-OLED EVF is the perfect addition to any Zacuto Recoil rig.

Specifications

Display 0.61" / 15.1 mm
Frame Rate 23.98p
23.98PsF
24p
24PsF
25p
25PsF
29.97PsF
50i
50p
59.94i
60i
60p
Resolution Full Display: 1280 x 1024
HD: 1280 x 720
Contrast Ratio 10,000:1
Refresh Rate 50/60 Hz
Color Depth RGB: 24-bit
Luminance 120 to 250 nit
Pixel Density 2687.21 PPI
Color 16.7 million colors
Connections Input
HDMI: 1 x HDMI
SDI: 1 x BNC

Output
HDMI: 1 x HDMI
SDI: 1 x BNC

Upgrades
1 x USB
Mounting Options ARRI compatible rosette
1/4"-20
