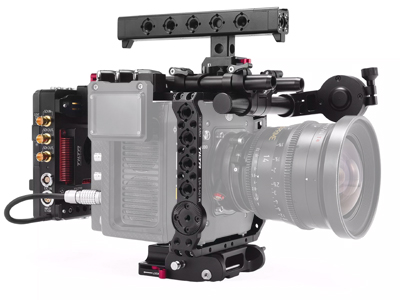

http://www.lemac.com.au/site/DefaultSite/filesystem/images/Tilta/mini_cage.jpg Arm your camera with this Tilta camera cage specifically designed for the Arri Alexa Mini. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

SEARCH SHOP

Tilta

Tilta Camera Cage for Arri Alexa Mini

Item Code: TIL/ESR-T06-A

Arm your camera with this Tilta camera cage specifically designed for the Arri Alexa Mini. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

RRP: 0   Save:

  • Qty:
  • Price:
    $3,165.00
    inc. GST

Found this item cheaper elsewhere? Let us know

What's In The Box?

  • 1x Top handle
  • 2x 15mm top rod adapters
  • 1x 15mm LWS to 19mm rod adapter for LCD bracket
  • 1x 19mm rod adapter for LCD bracket
  • 1x EVF holder
  • 1x Long top plate with power pass through
  • 1x Short top plate
  • 1x Short bottom plate
  • 1x 15mm LWS baseplate
  • 2x 15mm x 80mm rods
  • 1x EXT to EXT cable
  • 1x Top plate to battery bridge with power pass through
  • 1x Right side arm (with Arri standard rosette connection)
  • 1x Left side arm (with Arri standard rosette connection)
  • 1x Battery plate 15mm LWS rod adapter
  • 1x Arri Alexa Mini battery plate

Arm your camera with this Tilta camera cage specifically designed for the Arri Alexa Mini. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Standard Battery Plate for Arri Alexa Mini Cage (available in either gold mount or V-mount) integrates with the camera body to provide several power and video in and outputs. Pins on the top NATO rail of the plate directly communicate with the top plate and top handle when attached which transfers power output functionality to them. The optional Top Plate Power Connection Module offers power distribution off the top plate while the the also optional Top Handle Power Connection Module offers power distribution off the top handle. These allows you to power your accessories from virtually anywhere on the cage.

The battery plate is attached to a sliding bridge mount so you can move it away from the back of the camera body to access the various buttons and ports and then slide it back right up to the camera body for a compact setup while operating.

An EVF holder can be mounted off the top plate which allows for 360 degree rotation so that you can customize how you want to view your Alexa Mini EVF while operating.

Left and right side arms help to fully stabilize the cage and provide protection as well as a variety of mounting points to all sides of the cage. These side arms also include Arri Standard Rosette connections to allow you to easily connect handles for a compact handheld operating setup.

On the bottom of the cage is a 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

Baseplate Rod Support: 15 mm LWS (60 mm spacing) Dovetail Plate Compatibility: ARRI standard
Tripod Mounting Threads 2 x 1/4"-20
3 x 3/8"-16
Threaded Holes LWS Plate:
14 x 1/4"-20
4 x 3/8"-16

Long Top Plate:
15 x 1/4"-20
12 x 3/8"-16

Each Side Arm:
8 x 1/4"-20
4 x 3/8"-16

Top Handle:
8 x 1/4"-20
13 x 3/8"-16
Shoe & Accessory Mounts 2 x ARRI rosettes (one on each side arm)
2 x Shoe mount (on top handle)
Power Distribution Battery Plate Type: V-Mount

Inputs:
1 x SDI in
1 x 12 to 14.8 VDC (4-pin LEMO)
1 x EXT in

Outputs:
2 x SDI out
1 x Integrated ARRI Alexa Mini power output cable (8-pin LEMO)
1 x 14.8 VDC (4-pin LEMO)
2 x 12 VDC / RS (3-pin LEMO)
1 x D-Tap (on battery plate)
1 x EXT out
15mm Rods 2 x 6" (150 mm)
2 x 8" (200 mm)
2 x 12" (300 mm)
Material All components are made of aluminum
