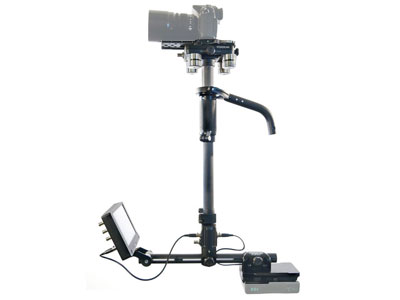

http://www.lemac.com.au/site/DefaultSite/filesystem/images/Steadicam/SteadicamAero.jpg The Steadicam AERO is designed to be precise, user-friendly, and versatile enough to fly a wide range of cameras for a variety of productions. The AERO is tools-free so you can quickly make adjustments to your Sled in order to suit the shot or your operating preferences.

SEARCH SHOP

Steadicam

Steadicam Aero

Item Code: CPR/A-HDV XX

The Steadicam AERO is designed to be precise, user-friendly, and versatile enough to fly a wide range of cameras for a variety of productions. The AERO is tools-free so you can quickly make adjustments to your Sled in order to suit the shot or your operating preferences.

RRP: 0   Save:

For purchasing information

The Steadicam AERO is designed to be precise, user-friendly, and versatile enough to fly a wide range of cameras for a variety of productions. The AERO is tools-free so you can quickly make adjustments to your Sled in order to suit the shot or your operating preferences.

The AERO™ is a true Steadicam top to bottom. It’s arguably stronger and more capable than any rig in its class, and is certainly a user-friendly choice for beginners. The AERO is also a superb ‘run & gun’ rig for veterans and flat-out stunts. It’s rigid and precise and has all the bells and whistles you're used to.

A lightweight Steadicam, harshly operated for violent moves, yields much more realistic action sequences than handheld!And an excessively-light camera can easily be brought up to inertial snuff with supplied weights added to the proprietary corner-mounts on the stage. That makes AERO a terrific rehearsal rig before you have to lug your heavy metal through those 10minute shots!

In short, the AERO is brilliant – precise, tool-free, super-adjustable and super strong. It has the same center post that is used on the Steadicam Zephyr model sled, and an even more rigid stage, so with the A-30 Arm and Vest your AERO can support camera payloads up to 20 pounds!

Options

Available as a system with the lightweight A-15 Arm & Vest or with the heavier duty A-30 Arm & Vest

Available as a sled only if you have a compatible arm and vest.

Six battery mount types available - V-Lock, Anton-Bauer, Sony BP-U, Canon LP-E6, Panasonic D28, & Sony NP-F970

Features

  • Rigid, lightweight sled
  • 3G HD compatible
  • Available with 7” 1000 nit monitor
  • Tool-free adjustments
  • Detachable sled base for easy storage and transport
  • Multiple battery mount options
  • Two-section carbon fiber post extendable from 22.5–35.5 in / 57.2–90.2 cm

Video

STEADICAM - BALANCING from The Tiffen Company on Vimeo.

For more videos and instructional material, please visit the Tiffen Aero website

Specifications

Max. Weight Capacity 9.1 kg / 20lb (dependent on arm choice)
12v Power Standard
HD Compatible Standard - (1x) HD/SDI Line
Connections (2x) HD/SDI BNC, (1x) Mini-XLR Monitor Power, (1x) 12V P-Tap
Additional P-Tap on battery mount for V-Lock and Anton-Bauer Options
Sled Weight 4.42 kg / 9.75lbs with monitor & battery mount but without battery
Balance Weights Included 8 (0.11 kg / 0.25lbs each)
Battery Mounts V-Lock
Anton Bauer
Sony BPU
Canon LP-E6
Panasonic D28
Sony NP-F970
G-70x Arm Compatibility Yes Requires 1/2" arm post adapter
G-50x Arm Compatibility Yes Requires 1/2" arm post adapter
A-30 Arm Compatibility Yes - no adaptor required
A-15 Arm Compatibility Yes - no adaptor required
Exovest Compatibility Yes Socketblock arm dependent
U2 Vest Compatibility Yes Socketblock arm dependent
A-30 Vest Compatibility Yes Socketblock arm dependent
A-15 Vest Compatibility Yes Socketblock arm dependent
