Sony

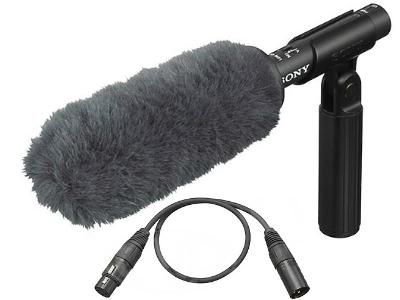

Sony ECM-VG1 Electret Condenser Microphone

Item Code: SOC/ECMVG1

Sony's new super-cardioid condenser shotgun microphone- ECM-VG1 exudes excellent sound reproduction with a highly sensitivity, low noise and a wide and flat frequency response.

RRP: 0   Save:

  • Qty:
  • Price:
    $300.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Outstanding Sound Quality

The ECM-VG1 is specifically designed for professional field and studio production applications at an affordable price. It offers a flat-and-wide frequency response (40 Hz to 20 kHz), excellent sensitivity of -33 dB (0 dB=1 V/Pa), and a low inherent noise level of less than 18 dB SPL. It delivers exceptionally smooth and natural sound reproduction.

Compact and Extremely Lightweight Design with Metal Body

Designed as an extremely lightweight shotgun microphone, the ECM-VG1 maintains good balance even when mounted on compact camcorders.

  • Weight: 66 g (2.3 oz), 92 g (3.2 oz) with windscreen
  • Length: 210 mm (8 3/8 inches), 230 mm (9 1/8 inches) with windscreen
  • Built-in Low-cut Filter

    The built-in two-position (M, V) low-cut switch provides a simple method of reducing the effects of unwanted ambient noise.

    External DC (40 to 52 V) Operation

    The ECM-VG1 provides an electronically balanced output operation on 48 V standard external power.

    Newly Developed Windscreen

    The ECM-VG1 comes with a newly developed windscreen. An internal frame fixes the windscreen rigidly, making a space between the microphone and the outside part of the windscreen. It suppresses strong wind noise and protects the ECM-VG1 from the contact noise that is typical in harsh operational environments such as outdoor applications.

There is no media for this item.

Specifications

General

Weight 66 g (2.3 oz)
Power Requirements DC 40 to 52 V
Dimensions ø20 x 210 mm (ø13/16 x 8 3/8 inches)
S/N Ratio 76 dB or more (IEC179 A-weighted, 1 kHz, 1Pa.)
Sensitivity -36 dB ±3 dB
Directivity Uni-directional (super-cardioid
Frequency Response 40 Hz to 20 kHz
Capsule Type Mono Electret Condenser
Dynamic Range 107 dB or more
Induction Noise from External Magnetic Field 0 dB SPL or less (0 dB SPL=20u PA)
Wind Noise 45 dB SPL or less (with windscreen),(0 dB SPL=20u PA)
Inherent Noise (0dB=20µPa) 18 dB SPL or less
Max SPL (dB SPL)(0dB=20µP) 125 dB SPL or more
Output Impedance at 1kHz (Balanced) (1/2 ± 20%) 100 Ω ±20%
Connector XLR 3-pin Female

Supplied Accessories

Included Windscreen (x1), Microphone holder (x1) Microphone Spacer (x1), Stand Adaptor (2)
Documentation Operating instructions (x1), Warranty Booklet (x1)
