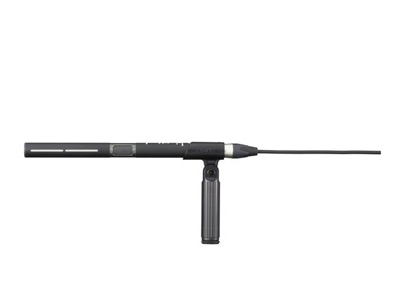

Sony ECM-680S Mono/Stereo Shotgun Mic

Item Code: SOC/ECM680S

Uni-directional Mono/Stereo (Switchable) Electret Condenser Shotgun Microphone, Phantom Powered

RRP: 0   Save:

  • Qty:
  • Price:
    $1,160.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The ECM-680S is an MS stereo shotgun, electret condenser microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise, and a flat-and-wide frequency response. The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode. Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The MS microphone signal of the ECM-680S is internally decoded and it provides L and R (stereo) outputs. The ECM-680S is supplied with a XLR-5-pin to XLR-5 pin cable for use with 5-pin XLR input equipped camcorders. The optional EC05X5F3M (formally known as K-1504) cable should be used when connecting the ECM-680S stereo shotgun with camcorders having two 3-pin XLR inputs.

SOC/ECM680SExcellent Sound Quality

The ECM-680S uses the Mid-Side (MS) technique that offers natural stereo sound and excellent localization. Equipped with newly developed large diaphragm microphone capsules with bi-directional characteristics, the ECM-680S delivers superb sensitivity and extremely low inherent noise.

Stereo and Monaural Switchable

The ECM-680S can operate in either stereo or monaural (uni-directional) mode, allowing it to be used in both EFP and ENG applications. Stereo mode is ideal for capturing environmental sound with natural sound quality, while monaural mode is ideal for clearly capturing voice and sound from a distance. These modes can be selected from the switch on the microphone or from compatible Sony professional camcorders. The LED on the microphone lights up when the ECM-680S is set to stereo mode, to easily notify the user that operating mode is currently selected.

Flat-and-Wide Frequency Response

The ECM-680S microphone has a flat-andwide frequency response (50 Hz to 20 kHz (stereo)/40 Hz to 20 kHz (monaural)) in both stereo and monaural modes, and will provide sound reproduction that is extremely smooth and natural.

Built-in Low Cut Filter

The built-in two-position (M,V) low cut switch provides a simple method of reducing the effects of undesired ambient noise.

Compact and Lightweight Design

The ECM-680S has been designed to be a compact yet high-performance stereo shotgun microphone, ideal for camera mounted use. It measures only 9 7/8 inches in length and weighs less than 4.9 oz, maintaining good balance and mobility.

There is currently no media available for this item.

Capsule Type Stereo MS Electret Condenser
Frequency Response Stereo: 50 Hz to 20 kHz
Monaural: 40 Hz to 20 kHz
Directivity Uni-directional
Sensitivity Stereo: -28 dB ±3 dB
Monaural: -32 dB ±3 dB
Dynamic Range Stereo:104 dB or more
Monaural: 106 dB or more
S/N Ratio Stereo: 74 dB or more
Monaural: 76 dB or more
(IEC179 A-weighted, 1 kHz, 1Pa)
Inherent Noise (0dB=20µPa) Stereo: 21 dB SPL or less, Monaural 20 dB SPL or less
Induction Noise from External Magnetic Field 0 dB SPL or less
Wind Noise 60 dB SPL or less (with windscreen), 55 dB SPL (without windscreen),(0 dB SPL=20u PA)
Max SPL (dB SPL)(0dB=20µP) 124 dB SPL
Connector XLR-3
Cable Length XLR-5 pin to XLR-5pin
15 inches (Connects with Sony camcorder equipped with front 5-pin mic input)
Power Requirements DC 40 to 52 V
Dimensions Ø13/16 x 9 7/8 inches
Weight 4.9 oz
