Sony

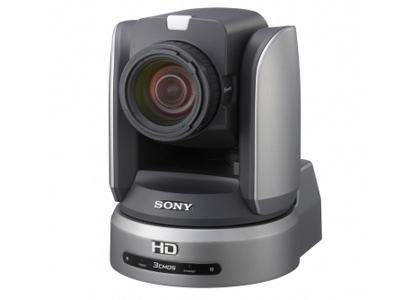

Sony BRC-H900 1/2 Inch CMOS Full HD Robotic Camera

Item Code: SOC/BRCH900

The BRC-H900 delivers exceptionally high quality images and flexibility, making it ideal as a low-cost complement to broadcast studio cameras for capturing images in hard-to-reach or unobtrusive positions.

RRP: 0   Save:

For purchasing information

Discreet image capture

The BRC-H900 delivers exceptionally high quality images and flexibility, making it ideal as a low-cost complement to broadcast studio cameras for capturing images in hard-to-reach or unobtrusive positions. The camera features three high quality 1/2-inch type Exmor CMOS sensors and a 14x optical zoom lens. Ceiling mountability, tally lamps and HD/SD-SDI connectivity increase the camera’s flexibility.

High quality image capture

The BRC-H900 delivers exceptional picture quality thanks to three 1/2-inch type Exmor CMOS sensors. In addition, the feature rich colour adjustment functions allow fine-tuning to meet demanding needs.

High quality 14x optical zoom

The camera features a high quality 14x optical zoom lens, allowing the camera to integrate easily with broadcast quality studio cameras.

Low light image capture

High sensitivity (F10) and excellent minimum illumination (4lx) performance enables the BRC-H900 to capture high quality pictures in low light conditions.

High performance Pan/Tilt/Zoom mechanism

The BRC-H900 covers a wide shooting range with its highly accurate Pan/Tilt mechanism. It has a very wide pan range of 340 degrees and a tilt range of 120 degrees. Both pan and tilt speeds are variable within the range of 0.25 to 60 degrees per second. This enables the BRC-H900 to capture not only fast-moving objects, but also slow-moving objects without rocking vibration.

Flexible installation – ceiling mount or flat surface

Because the BRC-H900 has an Image Flip function, the unit can either be mounted on a ceiling using the supplied ceiling mount kit or placed on a flat surface to suit almost any installation requirement.

Remote control operation with VISCA protocol

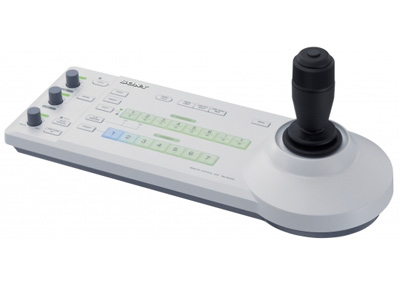

The BRC-H900 can be controlled by external devices such as the optional RM-BR300 remote control unit thanks to Sony’s well established VISCA protocol. All local controls such as pan/tilt/zoom, camera settings, and sixteen presets can be easily accessed, and up to seven cameras can be daisy-chained and controlled by a single RM-BR300 remote control unit.

Optional IP control

The BRC-H900 can be configured as part of a low cost communication system over Ethernet. Up to 100 cameras can be controlled in one system.

Versatile video outputs

The BRC-H900 has a range of video outputs including HD/SD-SDI interface for direct connection with various video equipment.

Tally lamps

Tally lamps on the front and rear of the BRC-H900 offer flexible installation and operation in various shooting environments.

Same optional accessories as the BRC-Z330

The BRC-H900 uses the same optional accessories as the BRC-Z330, expanding the number of applications for the camera at a low cost

Specifications

Camera
Sensor 1/2" Exmor 3CMOS Image Sensor
Resolution Approx. 2.07 Megapixels
Signal System 60 Hz
1080/59.94i
720/59.94p
NTSC

50 Hz
1080/50i
720/50p
PAL
Horizontal Resolution > 1000 TV Line (HD-SDI Output) (Center)
Minimum Illumination 4 lux (50 IRE, f/1.9, +24dB)
Shutter Speed Range 1/8000 to 1/60

1/8000 to 1/50
Gain Auto, Manual
-3 to 24 dB
White Balance Settings
Auto / Outdoor / Indoor

Method
One-push / Manual
Gamma Curve STD 1
STD 2
STD 3
STD 4
CINE 1
CINE 2
CINE 3
CINE 4
Image Stabilization SteadyShot
On / Off
Image Flip Selectable On / Off
Video Signal-to-Noise Ratio 50 dB
Sync Input External
1 x BNC 75 Ω
Synchronization System Internal / External
Output Format/Interface
HD SDI
1 x BNC
HD / SD Switchable

RGB/Component
1 x D-Sub 15 Pin
Component (Y/Pb/Pr)
RGB
HD
Bi-Level VD
Tri-Level SYNC
SD 1 x BNC Composite
1 x S-Video Y/C
Camera Control Mini DIN 8 Pin
1 x RS-232C (VISCA IN )

Mini Din 8 Pin
1 x RS-232C (VISCA OUT)

Connector Plug 9 Pin
1 x RS-422 (VISCA IN / OUT)
Optical System
Lens Focal Length
f=5.8-81.2mm (f/1.9-f/2.8)

Zoom Ratio
14x Optical Zoom

Minimum Object Distance
31.5" (80 cm)

Horizontal Viewing Angle
59.6° at the Wide End of the Lens

Focusing System
Auto / Manual
Mechanical Specification
Pan/Tilt Pan Angle
-170 to +170°

Tilt Angle
-30 to +90°

Pan/Tilt Speed
0.22 to 60°/sec

Preset Positions
16
Presets Number of Programmable Position Presets
16

Included
Presets 1-6 available using the included Remote Commander

Optional
Presets 7-16 require the use of the optional RM-BR300
Tally Light Quantity
2

Location
1 x Front
1 x Rear
Expansion Slot 1 x Available Slot

Card Options
HD/SD-SDI Output Card - BRBK-HSD2
Analog SD Output Card - BRBK-SA1
HD Optical Multiplex Card - BRBK-SF1
IP Control Interface Card - BRBKIP10
Mounting Options
Mounting Less than ±15° to the horizontal surface
Ceiling Mount Bracket 2 x Brackets Included

Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg)
Desktop Mounting Install on a solid level flat surface, ensure camera does not fall
Tripod Mount 2 x 1/4"-20 Threaded Female Receiver
General
Temperature Operating Temperature
32 to 104°F (0 to 40°C)

Storage Temperature
-4 to 140°F (-20 to 60°C)
Power Requirements 10.8 to 13.2 VDC
Power Consumption Without Optional Cards
28.8 W

With Optional Cards
34.2 W
Dimensions (WxHxD) 7.83 x 10.25 x 9.38" (20 x 26 x 24 cm)
Weight 11 lb (5.0 kg)
