Rycote Modular Windshield Kit WS7

Code: SYN/RY086007
$1,155.00
The original, time-tested, professional windshield system for isolation from wind and handling noise.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Rycote Modular Windshield Kit WS7 is back in stock.

Rycote windshield / suspension systems are the original, iconic systems used by audio professionals around the world since 1969. Rycote has applied numerous industry-leading engineering developments evolving this system to maintain its status as the gold standard over the past decades.

The professional standard

The Modular Windshield System offers various levels of wind protection and maximum shock isolation. Available in complete, comprehensive kits, modular components can also be purchased for retrofitting to accommodate different length or diameter microphones.

Modular Windshield Kits

Modular Windshields are available in complete kit configurations to accommodate specific microphone lengths and diameters. The available configurations enable almost any microphone to be shock-mounted while offering varying degrees of wind protection.

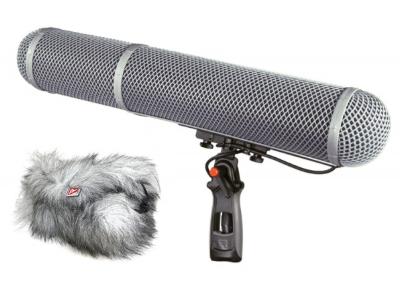

Modular Windshield Kits include the following components

  • Modular Windshield
  • Modular Suspension + Lyre Technology
  • Modular Windjammer
  • Connbox
  • Boom Pole Adaptor
  • XLR Holder
  • Pistol Grip
  • Brush for fur maintenance
  • Hex Head Key

Modular Windshields and Extensions

The Modular Windshield is a lightweight, durable basket made from flexible grey plastic netting with a screening material attached. Designed for use with the Modular Suspension, this system provides excellent wind-noise reduction of up to 30dB with minimal High-Frequency loss. The modular nature allows the fitting of extension pieces to lengthen the windshield so that several microphones can be used by one kit. Various lengths of windshields and extensions are available.

A Modular Windshield is comprised of a Windshield body, two end caps, and in some cases extension pieces. The twist and turn locking end caps provide easy, secure and rattle-free on both ends of the windshield. Both end caps can be removed facilitating easy placement of the microphone inside the basket.

Modular Shock Mount with Lyre® Technology

Our suspensions provide superb isolation against handling and cable-borne noises by supporting the microphone using Lyre suspension webs. The patented Lyre combine enhanced performance, weight, and durability to attain the most advanced shock mount and suspension technology used in field applications today.

Modular Windjammer

Originally developed by Rycote, the Windjammer is a high-quality, synthetic fur-cover that provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield, up to 50 dB of wind-noise attenuation can be achieved, producing excellent standard audio recordings. Made from materials specially designed for wind-noise isolation, the Windjammer has virtually no adverse effect on high-frequency.

Connbox

The Connbox is a unique Rycote development specifically designed to isolate and greatly reduce handling and cable-borne noise to the microphone. It acts as a transition connection that effectively inhibits cable vibration, preventing transmission to the microphone. The lengths of soft cable are set to work perfectly with the microphone fitted in the windshield without touching the internal surface of the basket, while the soft cable greatly reduces the transmission of cable-borne noise and rumble.

The Connbox is made of the highest quality components, using Gold pin Neutrik X-series XLR connectors, and an ultra-soft Mogami star-quad cable.

Video

Specifications

Kit name Modular Windshield WS 7 Kit
Product code 086007
Kit Components 040151 Suspension Large (XLR-3F) 72Duo
010604 Windshield WS 4
010703 Extension 3
021507 Windjammer WJ 7
016901 Connbox CB1 (XLR-3F)
Tech Specs Body Length: 500mm (WS4 + Extension 170mm)
Total Length: 610mm (includes the End Caps)
Height of Windshield 100mm
Fur Length: 40mm
Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Compatibility AKG: CK 68 ULS C460B Full
Audio-Technica:AT 815b (AT8015)
Sennheiser:ME 67 K6, MKH 8070 + MZX
Sony:C74
