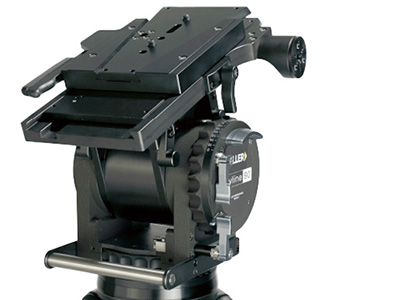

Miller Skyline 90 Fluid Head

Item Code: MIL/1085

Designed to meet the stringent and rigorous standards presented by challenging environments and condition of Outside Broadcast (OB), the Skyline 90 supports payloads of up to 75 kg. (165 lbs.) and features robust, heavy duty construction.

RRP: 0   Save:

For purchasing information

The Skyline 90 is a heavy duty head designed to meet the challenging requirements of outside broadcast productions. Reliability and ease of setup, smooth pan, tilts and diagonals and user ergonomics form the hallmark of this revolutionary head.

The Skyline 90 has continuous counterbalance control that ranges from zero to 165 lbs. (75 kg.) at 12 in. (30 cm.) above the centre tilt axis and 15+0 selectable fluid pan-tilt drag positions to ensure the optimum drag for any lens focal length. With a sliding platform featuring 300mm of sliding range that glides smoothly and effortlessly with a full payload, the Skyline 90 easily balances heavy camera loads. It also comes with an auto safety lock to ensure a secure horizontal position when loading or dismantling heavy box lenses. The floating calliper pan and tilt locks with large metal levers can be operated simultaneously with one hand without causing picture disturbance. Two bubble levels located at either side of the head allow for convenient levelling.

Miller Skyline 90 come with a three year warranty, endorsing the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

At a glance:

  • 15 selectable fluid pan-tilt drag positions + 0.
  • Continuous counterbalance control knob for perfect counterbalance adjustment.
  • Perfect for payloads up to 75kg (165lbs) at 30 cm above central tilt axis.
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
  • Two bubble levels.
  • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
  • Quick release wedge plate for sturdy camera mounting (optional).
  • Mitchell base for flat mounting.
  • Robust all-alloy construction.

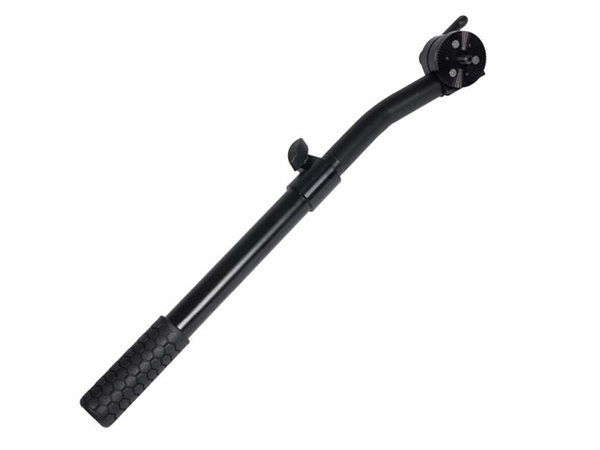

  • Heavy duty, industry standard telescopic pan handles (optional).
  • 3 year warranty.
Payload Range 0-75.0kg (0-165.4lbs) @ 300mm above pivotal centre
Weight 23.0kg (50.7lbs)
Counterbalance Positions Continuous adjustment (0 - 100%)
Pan Tilt Drag 15 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range +60° / -60°
Pan Range 360°
Camera Platform Quick release wedge plate
Sliding Range 300mm (11.8”)
Mounting Base Mitchell base
Height Above Bowl 332mm (13.1”)
Illuminated Controls N/A
Safety Lock Quick release tilt lock pin
Pan Handle 2 x HD telescopic
Temperature Range -40° to +65° C (-40° to +150° F)
