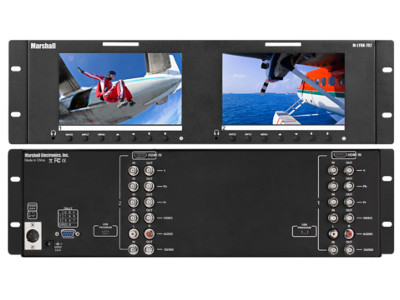

Marshall M-LYNX-702 Dual LCD

Marshall

7" Rackmountable 1024 x 600 LCD Display
For purchasing information

The M-LYNX-702 Dual 7" LCD display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Multiple video inputs set this product apart from similar-looking products. With the M-LYNX-702, you are not limited to the single SDI connector you may find on competitor models. With a full complement of digital and analog connections for each screen, when the unexpected happens, you will be ready. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

  • High resolution 1024 x 600, bright, colorful display with no-compromise input selections for each screen
  • Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)
  • Analog inputs: Component and Composite with loop-through
  • Special features: Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, P-P, View individual colors
  • Audio de-embedding and monitoring via front panel headphone jacks
  • Built-in LED tally indicators (Red, Green, Yellow)
  • Slim design and 3RU size
  • Power using included 12-volt supply or use standard 4-pin XLR
  • Selectable English and Spanish on-screen displays

Click here for a full list of specifications and features.
