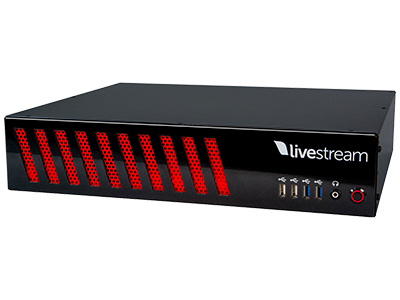

Livestream Studio HD51 - 4K Edition

Item Code: COR/LS-HD51-4K

With five HD-SDI or HDMI inputs, all the Studio Software features, and a high performance system, Studio HD51 is the perfect combination of powerful, simple and affordable.

Simply plug in a screen and go. Now available in this 4K edition

RRP: 0   Save:

For purchasing information

Livestream Studio™ HD51 is an all-in-one live production switcher from the makers of the world’s leading live video platform. Connect up to 5 HDMI cameras or professional HD-SDI cameras and stream live to in-venue screens or to the web using the built-in HD multi-bitrate encoder. Includes a high performance, 1TB hard drive that can record up to 4 simultaneous isolated (ISO) recordings or 20 hours of broadcast quality program output. Livestream™ Studio HD51 can be rack-mounted using the provided accessories; ideal for studios, facilities, and live production trucks.

Facebook Live Compatibility

Previously open only to mobile devices, Livestream's HD51 can broadcast professional productions straight to Facebook. Log-in and go live.

Chrome Browser-Based Control

Open up Google's Chrome browser (available free for Windows, OSX, Chromebook, and Android devices) to control Livestream's studio software remotely.

Bonded Streaming

By leveraging multiple connections, including Ethernet, WiFi, and 3G/4G LTE, you can spread your stream bandwidth for a more reliable connection. You can also set up alternate backup connections in case your primary connection fails or becomes too slow.

Virtual Camera Crop

Use a single 4K input to generate multiple camera angles. A simple interface lets you divide up the master source into several 1080p or 720p "virtual cameras" that can be panned and tilted in the virtual space. Cuts and transition presets are also supported for extra production value.

Built-In Multiview

Monitor all your cameras in real-time thanks to the built-in multiviewer. The multiviewer features on-screen full field rate multiview of all live inputs, Preview, Program Out, two GFX and two DDR, and Audio PPM overlay with peak hold feature on all inputs and outputs. The layout is resizeable to allow for hiding of all controls to maximize multiview screens.

Monitor on External Screens

The built-in NVIDIA GeForce GT 520 Commercial Series graphics card lets you extend the multiview to two additional screens via DVI and HDMI connectors.

Live Transitions

Cut, dissolve, or select from a collection of SMPTE wipes, with feathering and positioning control. Fade time durations can be manually adjusted in frames via the on-screen T-BAR or keyboard shortcuts.

Built-In Audio Mixer

The integrated multi-channel audio mixer features mix automation, SDI and HDMI embedded audio, level monitoring, peak warnings, as well as channel grouping. The incorporated video switcher follow feature supports audio crossfade when fading between two video sources. The HD51 also supports the use of external audio mixers.

Audio Input Options

The HD51 supports embedded audio via SDI or HDMI inputs. You can also bring in separate analog audio using the 1/8" input, or from any USB audio device.

Built-In Graphics Editor

The 2-channel graphics generator is built-in the GUI and allows you add text, transparent images, live picture-in-picture video, countdowns, and a range of graphic effects including drop shadows, borders, crops, and more. Create templates to quickly change sport scores, lower third text, or other graphic elements on-the-fly.

Downstream Key Overlays

Overlays graphics as layers on top of your program mix with transparency. This is ideal for adding corner bugs, sport cording, lower thirds, picture-in-picture, and other broadcast graphics.

Picture-In-Picture

Composite up to five live audio/video sources together within the graphics editor. Add a simple second camera angle, a scoreboard cam, or even a broadcast network 4-person live chat over an animated background video.

Media Recording (With ISO Recording)

Record your program output in broadcast quality MJPEG to an AVI file for archive and editing later in your NLE software, or for playback directly within one of the Livestream Studio media players. The HD51 supports up to four simultaneous isolated recordings (ISO). Choose from clean graphics-free video, video with graphics, as well as any live camera input. You can also open the files being recorded in the media players to trim and replay segments from your live show without stopping the recording.

Livestream Studio Media Player

Add recorded material to your program quickly and easily with the two media players built-in to Livestream Studio. You can import popular media formats such as H.264 video, MP3 and WAV audio), build playlists, loop clips, and auto-play on transition. You can also scrub through footage and trim clips down for broadcast. When working with clips that do not match your project settings, the built-in transcoder is available for file conversion. You can even get basic instant-replay functionality by loading an ISO recording into the media player.

Recording

The HD51 supports four simultaneous recordings. Record up to 40 hours of 1080i video at 100 Mbps in AVI MJPEG with uncompressed audio to the internal 2TB SSD. Interlacing and "Time of Day" timecode are supported. Recording is fully compatible with Blackmagic Design Media Express and Adobe Premiere.

Remote Camera

Desktop: Broadcast a remote computer desktop video and audio as a Livestream Studio input via your local Wi-Fi or Ethernet network. Full motion and audio are supported.

Cloud: Downlink live feeds from your Livestream accounts and use it as a remote live source in your program mix.

Integrated Live Streaming Encoder

Livestream Studio comes with a built-in H.264/AAC multi-bitrate live streaming encoder. You can stream HD video directly to Livestream, UStream, YouTube Live, or any RTMP-compatible server or CDN (Wowza Media Server, Akami, Flash Media Server). Also supported is the ZiXi streaming protocol and 1080p streaming when using custom quality settings.

Stream to Any Device

Livestream supports simultaneous output to desktop browsers, Roku connected TVs, and iOS/Android devices through a combination of Flash, adaptive bitrate HLS, and RTSP streaming protocols.

Live Video Output

Output your live program via SDI or HDMI to large format in-venue screens, broadcast networks, or complement your workflow using external video hardware such as graphics generators, encoders, and recorders.

Tally Light

Use the tally light integration to let your talent and camera operators know which source is live and which source is coming next. The HD51 supports tally devices from MetaSETZ.

Mid-Roll Ad Insertion

With an optional Livestream Platform Enterprise account, you can add your Google DFP ID to add mid-roll advertising to your live streams. Simply press the "Insert Advertisement" button.

Livestream Keyboard and Mouse Included

Use the included Livestream keyboard to quickly access essential functions and features. The keyboard works with all Livestream Studio products. A Livestream mouse and mousepad are also included.

Phone Support

Twelve months of free telephone support is included. Phone support is available seven days a week.

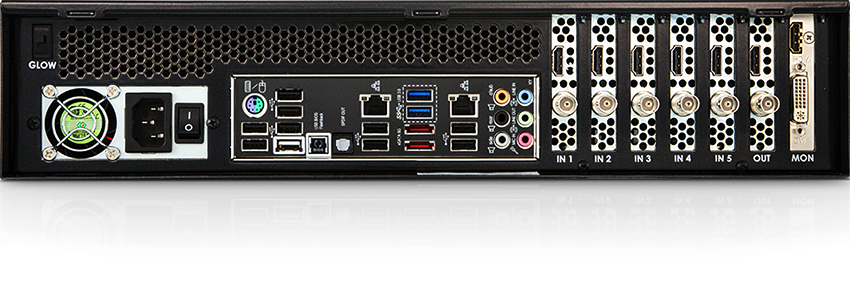

Built-In Video Input/Output Cards 4 x Blackmagic Design DeckLink Mini Recorder 4K
1 x Blackmagic Design DeckLink Mini Monitor 4K
Input 5 x HDMI
5 x SDI
2 x Remote cameras (desktop capture or live feeds)
1 x 1/8" analog audio
Output 1 x SDI
1 x HDMI
1 x 1/8" analog audio

Graphics card:
1 x DVI
1 x HDMI
Embedded Audio Input 6 stereo or 48 mono inputs
Media Sources 2 x DDRs (video clip playback with built-in transcoder)
3 x GFX (graphics)
2 x Color bars / background color
Video Switcher/Mixer 1 x M/E with no upstream keyer
Resolution Support 4096 x 2160 23.98/24/25
3840 x 2160 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL
Recording Format AVI MJPEG with uncompressed audio
Recording Capacity Approx. 40 hours at 1080i with recorder set at 100 Mbps MJPEG AVI (using 2TB built-in SSD)
Playback Media Formats GFX: JPEG or PNG image files (PNG images fully adjustable in transparency)

DDR: AVI MJPEG with uncompressed audio, DV video, WMV (7/8/9), H.264 (.mov and .avi), MPEG4 Part 2 (.mov and .avi), MPEG4 V1/V2 (.mov and .avi), AAC, MP3
Live Streaming Live HD streaming via Gigabit/100/10 built-in Ethernet
Presets in up to HD 720p
Multiple simultaneous bitrates
Mobile quality for playback over 3G on mobile devices (iPhone / Android)
Integrated live streaming to RTMP compatible servers/services
Operating System Windows 7 Professional (64-bit)
CPU Intel Broadwell-E Core i7 6900K 3.2 GHz 8-Core processor
20MB cache, 140 W, Socket LGA 2011-v4
Graphics Card NVIDIA GeForce GT 730
Storage 2 TB Samsung EVO SSD
RAM 64 GB DDR4 2133 MHz RAM
Processing Video: 4:2:2, 10-bit color (REC 601, REC 709)
Audio: 48 kHz, 24-bit REF IN/Genlock (Requires genlocking the two Blackmagic Design cards via two separate connectors)
Rack Height 2 RU
Dimensions (DxWxH) 14.0 x 17.0 x 3.5" / 35.6 x 43.2 x 8.9 cm
Weight 13.2 lb / 6 kg
