Flowcine Gravity One Stabilisation System

Flowcine

The Gravity One (G-1) is a 2-axis gimbal camera mount allowing for smooth movements when working with Easyrig systems or when handheld and shoulder mounted.
  • Qty:
  • Price:
    $5,134.39
    inc. GST

Gravity One – The small lightweight external two axis gimbal rig

The Gravity One (G-1), is a two axis gimbal camera support. It’s built entirely in the highest grade aluminium which makes it very light and extremely strong. The main purpose of the G-1 is to provide stabilisation, while simplifying camera handling when working with a body mount such as the Easyrig. It also stabilises handheld camera work and greatly reduces motion artefacts and unwanted motion in shots where the photographer is walking or running.

For complete camera set-ups

Unlike many other rigs on the market you can mount cameras weighing up to 17 kg (38 lbs) on the G-1, giving you the opportunity to rig your camera the way you want and with the accessories you need. Two knobs on the mount plate allow you to easily adjust the rig’s centre of gravity.

Upgrade Ready

Flowcine has designed the G-1 to be future proof. With future upgrades already planned - including an upgrade to the G-1E which will feature automated controls and gyro stabilised roll/tilt axis - the G-1 will be upgradeable by the user, unlocking new features whilst avoiding the need to send the unit back to Flowcine.

Features

  • Small, lightweight external 2 axis Gimbal (pan axis is the EasyRig Cord).
  • Allows use of the camera from shoulder to low mode with the unti still attached.
  • Includes x/y positioning stages that enables perfect balancing of the camera in 3 axis.
  • Free floating full bearing pivot supports the gimbal in all crucial axis points.
  • Weights approx. 2.075 kg and can fully support cameras up to 17 kg or around 38 pounds.
  • Eliminates the pendulum effect created by the cord in all Easyrig style body mounts.
  • Allows the operator to tilt freely and effortlessly approx +/- 60 degrees..
  • Allows the operator to freely roll the camera 30 degrees CCW, and 60 degrees CW.
  • When correctly tuned, the camera will remain at all given tilting angles or rolling angles effortlessly, and the drag pendulum effect will completely be eliminated.
  • Provides smooth motion even when camera moves are performed "hands free".

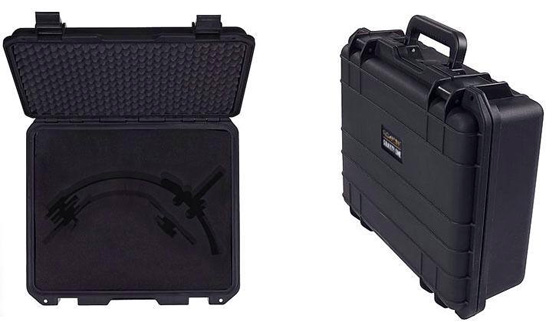

Includes Travel Case

When purchasing a Gravity One you will also receive a purpose built hard case with foam cutouts to suit the Gravity One system.

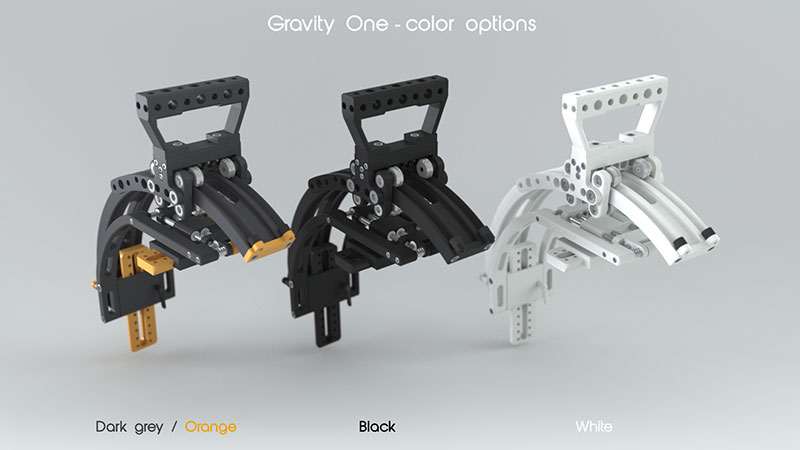

Colour Options (Black standard, other colours available by special order)

Video

Specifications

  • Width: 355 mm
  • Height: 310 mm
  • Depth: 135 mm
  • Weight: 2.075 kg
