DJI Ronin Handheld Gimbal System

Item Code: BLO/DJI-RONIN

The Ronin puts world-class, industry leading technology into your hands and creates unparalleled picture and video stabilisation.

RRP: 0   Save:

  • Qty:
  • Price:
    $3,395.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Book a demo today

If you would like to organise a demonstration of the DJI Ronin, please click the button below, fill out your details and one of our sales staff will be in contact shortly.

3-Axis Stabilised Handheld Gimbal System

The DJI Ronin has been developed for the filmmaking professional. High build quality standards ensure that it keeps up with the demands of rigorous handheld use in trying environments. Simply hold it in your hands to create smooth and stable footage. Custom built ultra-fast processors, extremely accurate sensors, and advanced algorithms, together with fanatical attention to detail has created a system that offers remarkably precise manipulation of control angles - within the range of ±0.02°. This puts world-class, industry leading technology into your hands and creates unparalleled picture and video stabilisation.

Tool Free Adjustment

A built-in balance adjustment system means no tools are needed for setup and adjustment. Changing the setup for different camera arrangements is quick and simple.

Simple 5-Minute Setup

With a little practice, the Ronin takes less than 5 minutes to set up and balance whenever the camera configuration is changed. This saves time, making the Ronin more efficient in professional environments where every second counts. The built-in ATS (Auto Tune Stability) technology intelligently tunes the Ronin to your camera rig at the touch of a button.

Supports A Multitude Of Cameras And Lenses

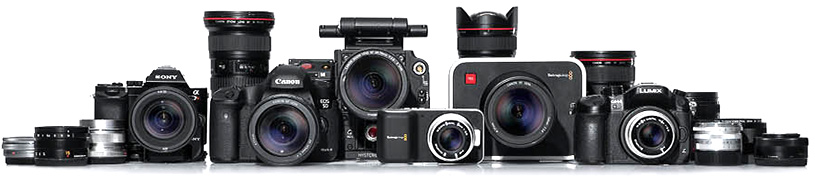

The Ronin is not customized for any specific camera. It can be easily adjusted to carry everything from small & light Micro-Four-Thirds cameras to heavier systems like the Red Epic.

Based On Zenmuse Technology

The DJI Zenmuse gimbals were the first commercially available systems in the world to utilize brushless motor technology for professional filming and aerial photography. The Zenmuse gimbal line has long been a benchmark that others have been measured against. The Ronin is based off the same technology and also offers multiple control modes, a built-in IMU, and customized direct drive brushless motors.

Smoothtrack Control

SmoothTrack gives a single gimbal operator the ability to transform their tilt and pan movements on the gimbal into smooth and stabilized camera angle changes. This makes framing wide-angle or close scenes significantly easier for a single operator.

3 Operation Modes

3 different modes of operation allow the Ronin to be used in different scenarios, all of which can be entered without changing settings on the Ronin Assistant app or a 2nd operator remote. SmoothTrack functionality remains in all three modes.

Upright Mode

Flip the gimbal over to bring the camera closer to eye level for a higher perspective without straining to lift it. Use this mode when sticking the Ronin out of a car’s sunroof or when trying to shoot over a crowd of people.

Underslung Mode

The default gimbal operation is the Underslung mode. The camera can be comfortably held low to the ground, at chest level or anywhere in between. This mode is also used when the Ronin is suspended from a camera jib or crane.

Briefcase Mode

When a slimmer gimbal profile is needed, i.e. when moving through doorways or narrow paths, Briefcase mode is ideal. It allows the gimbal to be held to the side and close to the legs, much like a briefcase.

2nd Operator Controller

An included 2nd operator transmitter allows a 2nd operator to pan, tilt, and roll independent of the Ronin’s movement. SmoothTrack speeds and operation modes can be assigned with 2 custom toggle switches on the transmitter.

Extremely Durable, High Build Quality

Made from precision machined aircraft-grade aluminum, the Ronin offers the durability to withstand rugged use on set and meets the high demand for reliability. No loose cables or zip ties give it a clean, professional appearance.

High Torque, Precision Controlled Motors

Motors have been developed with the high performance Ronin in mind. Using FOC control, you can count on high precision, low vibration, and increased torque. Digital Absolute Positioning Encoders in each axis provide the highest levels of accuracy. This combination of custom motor modules and features is found in no other system.

High Performance Processing Power

A customized, advanced 32-bit floating point DSP processor offers more efficiency than an ARM processor, for faster processing of signals from the onboard encoders.

Built-In Receiver & Remote Control

A built-in DJI receiver allows the Ronin to be remotely controlled by a 2nd operator. The gimbal operator can focus on gimbal movement while the 2nd operator pays attention to camera movement. 2nd operator mode is also useful for gimbal control when working with flying platforms for aerial cinematography. A D-bus port is also included if a non-DJI receiver is required.

Quick Swap Smart Battery

Over 4 Hours Of Runtime

The Ronin’s customized smart battery is easy to install and simple to charge with the provided charger. Remaining power can be checked directly on the battery. Overcharge and over depletion protection is built-in, as is individual battery cell charge balancing. Expected runtime is over 4 hours, depending on the attached camera rig and gimbal usage.

Power Distribution Box

Two regulated 12V P-taps, one 500mAH full size USB connector, and also a connection point for the DJI Lightbridge Long Range HD Video Downlink are provided. This offers convenient power connection for various accessories including follow focus systems, HD video downlinks and others, all while keeping the wiring to a minimum.

Dual 15mm Rods For Follow-Focus Accessories

Follow focus systems and matte boxes can be easily mounted on the Ronin using industry standard dual 15mm segmented rods. The segmented rods allow for customization of different lengths, dependent on camera and lens setup.

Protective Carrying Case

An extremely strong, durable and water tight carrying case with rolling wheels provides easy transportation. Dense custom cut EVA foam protects the Ronin and accessories.

Mobile Bluetooth Assistant Software

The feature-rich iOS DJI Assistant software allows easy setup of all system configurations. The PC Assistant also provides control of all the Ronin’s functionalities in addition to firmware upgrades for future features.

Auto Configuration

After balancing a camera rig, simply tap the Auto Tune Stability button to tune the Ronin for use. It will intelligently adjust parameters based on your camera rig's weight and independently adjust each individual axis until an optimal setting is found. Auto Tune Stability also fine-tunes other aspects of the control system, making balancing fast and easy.

Smoothtrack Tuning

Tune each individual speed to your preferences. SmoothTrack provides movement translation based off the Ronin operator's movement. As the Ronin operator pans or tilts the gimbal, the camera orientation will pan and tilt in the direction the gimbal is moved and then ramp down in speed. This pan and tilt movement speed can be independently adjusted using software. Translated movement acceleration can also be fine tuned as well. If the Ronin operator needs to pan or tilt rapidly between two positions and the standard speed isn't sufficient, an accelerated speed can be adjusted without affecting slower movements.

Remote Operator Control

Full configuration of the transmitter can be accomplished through the DJI Assistant. Features such as control speed, remapping of what the control joysticks do, and also end-point adjustments can be configured through Assistant.

Ronin Stats

The Ronin's vital stats can also be viewed on the Assistant app. Key items such as motor power, pan-tilt-roll axis's degrees of movement, electronics' temperature monitoring, as well as remaining battery life.

Firmware Upgradeable

All units shipped will have the latest firmware, but due to our continuous drive to innovate, firmware updates will be made available online for improved performance and future features.

Video

Specifications

Supported Camera Dimensions

spec

General

Built-In Functions

  1. Three Operation Modes
    · Underslung Mode
    · Upright Mode
    · Briefcase Mode
  2. Built-in independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus/PPM Receiver Supported

Peripheral

Accessory Power Connections

12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1

GCU Input Power

4S Ronin Battery

Connections

2.4GHz Remote Control, Bluetooth, USB

PC Assistant Software Requirements

Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

Mobile Assistant Software Requirements

iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini

Mechanical & Electrical Characteristics

Working Current

Static current: 300mA (@16V)

Dynamic current: 600mA (@16V)

Locked motor current: Max 10A (@16V)

Operating Temperature

-15°C ~ 50°C (5°F ~ 120°F)

Weight

4.20kg (9.26lbs) fully loaded with handlebar

Gimbal Dimensions

620mm(W) x 280-380mm (D)x 500mm(H)

Supported Camera Dimensions

Maximum depth at center of mass on camera base plate: 140mm

Maximum height measured from top of camera base plate: 225mm

Maximum width: 195mm

Working Performance

Load Weight (Reference Value)

7.25kg (16lbs)

Controlled Angle Accuracy

0.02°

Maximum Controlled Rotation Speed

Pan axis: 90°/sec

Tilt axis: 100°/sec

Roll axis: 30° /sec

Controlled Rotation Range

Pan axis control: 360°
Tilt axis control: Up 45° to Down 120°
Roll axis control: ± 25°
