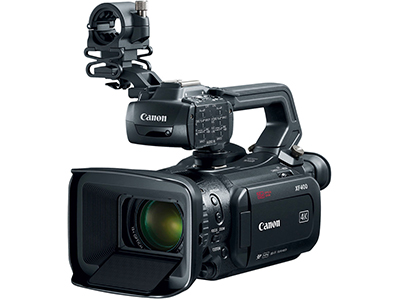

Canon XF405 4K CMOS Camera With HD-SDI

Code:

Product Replacement

Canon XF605 4K HDR Camcorder >>

NO LONGER AVAILABLE

Overview
Specifications

Versatile, Compact 4K ENG Camcorder

The XF405 feature a 1.0-Type CMOS sensor and DIGIC DV 6 image-processing platform to achieve high quality 4K/50p images. These advanced features are all integrated in a compact and lightweight body

4K UHD/50P High Frame Recording to SD Cards

The XF405 support UHD/50P MP4 and XF-AVC format (150Mbps) recording and 100fps continuous slow motion shooting. Low noise and high sensitivity are managed by a Canon CMOS sensor and dual DIGIC DV 6 image processors, which deliver high-quality footage with great clarity and detail. They also offer continuous 100fps recording in Full HD in order to deliver slow motion footage.

High-quality 4K 15x Zoom Lens

A newly developed 15x optical zoom lens (35mm film equivalent: 25.5mm - 382.5m) delivers stunning 4K images. Also, a 30x Advanced Zoom capability is offered in Full HD mode, without any image deterioration.

Dual Pixel CMAS AF fo High-Speed, Precise Autofocus

Dual Pixel CMOS AF is featured in the XF405 for fast and accurate autofocusing in approximately 80% of the image. A touch screen allows further focus control and intuitive camera operation.

4K UHD 50P

Support for UHD (3840 x 2160) 50P makes long recording times possible on versatile SD cards while maintaining high image quality.

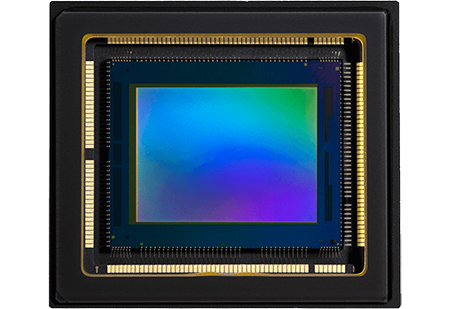

1.0-Type CMOS Sensor

Canon’s 1.0-Type CMOS enhances high sensitivity and low noise performance to increase shooting area and expressive capabilities

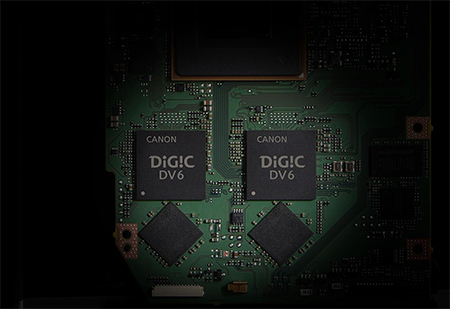

Newly-developed Dual DIGIC DV 6

Dual DIGIC DV 6 image processors give you recording ability internally 4K UHD/50P MP4, and continuous 100fps high frame rate in Full HD

FHD 100P Slow Motion Recording

You get high-speed recording with a maximum 100fps in Full HD, realising even greater emotion in visual expression

Specifications

Standard Definition or High Definition	4K Ultra High Definition
Power Supply (rated)	7.4V DC (Battery Pack), 8.4V DC (DC IN)
Video Recording system	Compression: MPEG-4 AVC/H.264 Color Sampling: 4:2:2 or 4:2:0 File Format: MP4 Recording Modes: 150 Mbps: 3840x2160 (60p/30p/24p) 35 Mbps: 1920x1080 (60p/30p/24p) 17 Mbps: 1920x1080 (60p/30p/24p) 8 Mbps: 1280x720 (60p) 4 Mbps: 1280x720 (30p)
Audio Recording system	MPEG-4 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch), 48 kHz
Image Sensor	1.0-inch CMOS
Total Pixels	Approx. 13.4 megapixels (4268 x 3148)
Effective Pixels	Approx. 8.29 megapixels (3840 x 2160)
Maximum recording Time	8GB card 150 Mbps: 5 min. 35 Mbps: 25 min. 17 Mbps: 55 min. 8 Mbps: 120 min. 4 Mbps: 245 min. 16GB card 150 Mbps: 10 min. 35 Mbps: 55 min. 17 Mbps: 120 min. 8 Mbps: 255 min. 4 Mbps: 515 min. 32GB card 150 Mbps: 25 min. 35 Mbps: 115 min. 17 Mbps: 245 min. 8 Mbps: 520 min. 4 Mbps: 1045 min. 64GB card 150 Mbps: 55 min. 35 Mbps: 240 min. 17 Mbps: 495 min. 8 Mbps: 1055 min. 4 Mbps: 2115 min. 128GB card 150 Mbps: 110 min. 35 Mbps: 485 min. 17 Mbps: 995 min. 8 Mbps: 2120 min. 4 Mbps: 4245 min. Recording will automatically stop when it has continued for 12 hours. A variable bit rate is applicable in each case.
Lens	Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5
Focusing System	Dual Pixel CMOS AF, Contrast AF The detection range for CMOS AF is approx. 80% (vertical) x 80% (horizontal) of the entire field of view.
Manual Exposure	Yes
Max Shutter Speed	1/2000
Minimum Focusing Distance	10mm at wide end, 60cm across entire zooming range
White Balance	Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000-15,000K), Set (1/2)
Frame Rate	60p, 30p, 24p
Minimum Illumination	P Mode: Approx. 1.7 lux (shutter speed: 1/30 sec., 60p with auto slow shutter on) Low Light Mode: Approx. 0.1 lux (shutter speed: 1/2 sec.)
Genlock Terminal	No
3G-SDI Terminal	No
Timecode Terminals	No
Image Stabilization	Optical system (lens shift) + electronic stabilization (Image rotation and camcorder movements in the yaw and pitch directions are electronically corrected.) Modes: Dynamic IS, Powered IS, Standard IS, IS Off
Filter Diameter	58mm
Viewfinder	0.24-inch TFT wide color LCD, approx. 1.56 million dots, approx. 100% field of view
LCD Screen	3.5-inch wide LCD and wide view angle, wide color range supported and AR surface treatment (Approx. 1.56 million dots)
Microphone	Stereo (using electret condenser microphone)
Recording Media	SD/SDHC/SDXC Card (2 slots): MP4 movies/photos. Menu settings can also be recorded.
USB Terminal	mini-B receptacle and Hi-Speed USB supported (output only)
Video Terminal	3.5mm stereo mini-jack, HDMI^™ mini connector
Audio Terminal	3.5mm stereo mini-jack, XLR 3-pin jack (two channels, provided on the handle unit), HDMI^™ mini connector, headphone jack
HDMI Terminal	HDMI^™ mini connector
AV Mini Terminal/Headphone Terminal	3.5mm stereo mini-jack
Ethernet Terminal	Ethernet connector (RJ-45) (supports 1000BASE-T)
Operating Temperature range	For Performance: Approx. 0-40° C, 85% (relative humidity) For Operation: Approx. -5-45° C, 60% (relative humidity)
Dimensions	Approx. 5.3 x 3.8 x 8.4 in. / 135 x 97 x 214mm (excluding lens hood, mic holder unit, handle unit and battery pack) Approx. 5.9 x 3.8 x 10.5 in. / 150 x 97 x 267mm (including lens hood and Battery Pack BP-828; excluding mic holder unit and handle unit) Approx. 5.9 x 8.5 x 10.5 in. / 150 x 216 x 267mm (including lens hood, Battery Pack BP-828, mic holder unit and handle unit) All dimensions exclude the grip belt.
Weight	Approx. 2.5 lbs. / 1145g (body only) Approx. 3.7 lbs. / 1665g (includes lens hood, mic holder unit, handle unit, Battery Pack BP-828 and 1 memory card) Grip belt included for all values.
