Canon

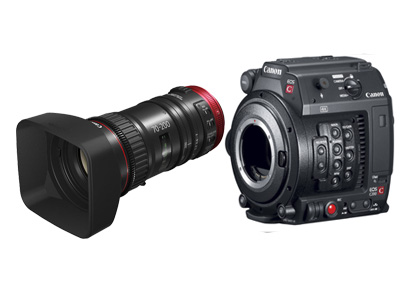

Canon EOS C200 Camera Body with CN-E 70-200mm Lens

Item Code:

The EOS C200 offers exceptional creativity and flexibilty in a compact and lightweight design, ideal for single shooters

Get a bonus ZSG-C10 Grip and BP-A30 Battery for a limited time only! Save over $650!

RRP: 0   Save:

For purchasing information

Capability Drives Creativity

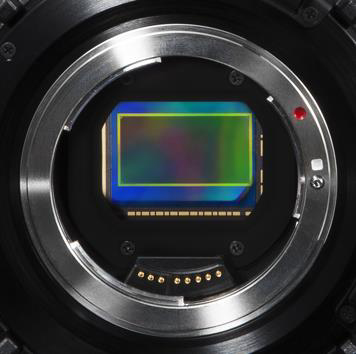

Canon's Super 35mm CMOS sensor along with newly developed Dual DIGIC DV6 image proessors deliver Cinema RAW Light recording at 4K DCI 50P internally to a CFast 2.0 card. It can also deliver 4K UHD recording at 150Mbps, and 2K or Full HD at 35Mbps to SD cards in MP4 format.

Supporting up to 15-stops of dynamic range with Cinema RAW light and 13-stops of dynamic range in MP4 9Canon Log/log 3), the camera is perfect for capturing highlight and shadow detail.

Innovative Focus Control

with Dual Pixel CMOS AF, superb tracking and smooth autofocus ideal for video capture is possible. Using the LM-V1 touch panel LCD monitor, users can intuitively select the subject they wish to focus on with simple touch operation.

Redefine What You Thought Possible

The 8.85M sensor supports 4K recording up to 4096 x 2160 for high quality images. 2K/HD recording (Over Sampling HD Processing) that takes full advantage of data from the 4K sensor.

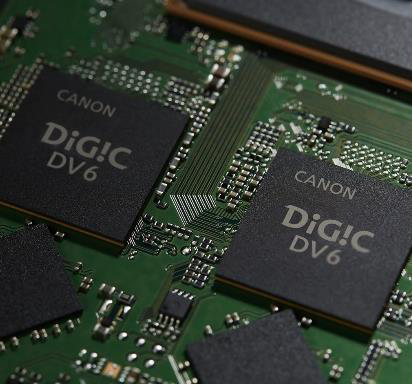

Dual DIGIC DV 6 image processors are the core technology of this 3rd generation Cinema EOS System that offers wide ranging expressive capabilities and stress-free operation in a compact body

New Cinema RAW Light format retains a high degree of post production freedom when colour grading similar to Cinema RAW while achieving between a one-third to one-fifth file size

Support for UHD (3840 x 2160) 60P/50P makes long recording times possible on versatile SD cards while maintaining high image quality

The C200 supports high-speed recording with a maximum 120fps in Full HD without cropping, realising even greater emotion in visual expression

Ground-breaking AF technology that uses a CMOS sensor with a construction that combines the functions of both imaging and phase difference AF

Features

LM-V1 LCD Monitor

Combine Dual Pixel CMOS AF with the LM-V1 LCD Monitor. With touch panel support, focusing becomes even more intuitive, with the capability to choose the subject for focusing with a touch

Dual Pixel CMOS AF

The C200 offers high-speed One-Push AF and continuous AF within a horizontal and vertical range of the screen of approx. 80%

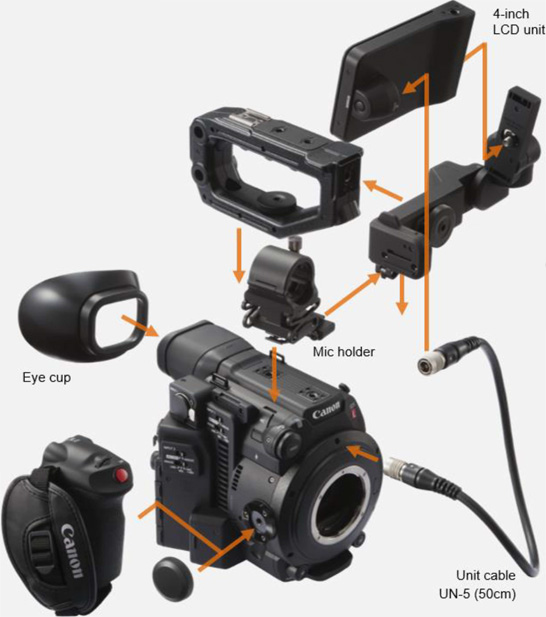

Wide Ranging Inputs & Outputs

The C200 supports a variety of output signals via HD-SDI and HDMI. High quality on-board audio is delivered via 2x XLR terminals

Support for Viewing HDR

An EVF LUT with partial HDR simulation enables a view close to an HDR display. HDR View Assist (400%/1600%) checking is also possible on the LM-V1.

Canon CN-E 70-200mm T4.4 4K Lens

Optimised for various shooting styles

The CN-E70-200mm T4.4 L IS KAS S Conpact-Servo lens delivers the perfet balance of operability with outstanding precision and quality. Out-of-the-box, the lens includes a servo engine which is powered via EF mount connectors, supporting hand-held shooting. For increased versatility, the ZSG-C10, an optional dedicated zoom grip, ideal for use with hand-held rigs.

Outstanding 4K optical performance

With a powerful native optical zoom of 2.8x, precise focus and servo zoom functions, the CN-E70-200 opens up a variety of shooting opportunities. Even when the zoom is changed, the optics stay perfectlyin focus. Thanks to three Canon Image Stabilisation modes, the lens ensures complete stability even during hand-held shooting. The CN-E70-200mm also features a nine blade diaphragm, to give the much loved 'bokeh' look and is colour balanced, matching other Cinema EOS lenses

Compatibility with Cinema EOS System

Dual Pixel CMOS AF used in the Cinema EOS System cameras is supported providing smooth focusing essential for video shooting.

A zoom lens for incredible 4K image quality

4K image quality is guaranteed with stabilizing technology, exceptional zoom, iris and focus control and options to explore cinematic bokeh effects.

Your zoom lens that's optimised for video acquisition

This affordable lens comes with precise zoom and focus functions for smooth professional video production plus 9-leaf iris to create cinematic effects.

Selectable image stabilization

Achieve professional crisp, clear video every time with Canon Image Stabilization modes ensuring absolute stability even with hand-held shooting.

A zoom lens that's always on target

Working with your Canon Cinema EOS camera and powerful Dual Pixel CMOS autofocus, the touch of a button will quickly and accurately focus your Cine Servo Lens.

Maintain control with the new Servo Drive Unit

Canon's Servo drive controls zoom, focus and iris, while the optional ZSG-10 grip allows shoulder shooting, smooth remote activation and one-shot AF.

A compact body for flexible operation

This 1.25kg Cine Servo Lens is optimised for single use operation, with its compact, light-weight design delivering uncompromising optical performance.

Image Sensor

Sensor

Super 35mm type CMOS

System

RGB primary colour filter (Bayer array)

Total pixels per sensor

Approx. 9.84 megapixels (4206 x 2340)

Effective pixels per sensor

Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution

Signal-to Noise Ratio

50.00 Hz mode: 53 dB (Typical) [3840x2160/25.00P, Canon Log 3 Base sensitivity ISO800 (Dynamic range 1600%),HDMI OUT]

Dynamic Range

15 Stops (CinemaRAW Light)13 Stops (MP4/Canon Log3)

Image Processor

Type

Dual DIGIC DV6

Lens

Lens Mount

Canon EF Mount

Lens Magnification Factor (for EF Mount lenses, including Cinema Primes)

At 4096 x 2160 or 2048 x 1080 resolution: Actual focal length x approx. 1.460 At 3840 x 2160 or 1920 x 1080 resolution: Actual focal length x approx. 1.534

Changeable Lens Mount

Yes, mount change to PL mount possible via Canon Service centre (Paid for service)

Peripheral illumination correction

Yes with compatible lenses

ND filter

Clear,2,4,6,8,10-stop

Focus control

Manual via lens, manual via RC-V100 Auto Focus (Dual Pixel AF Approximately 80%(vert.),80%(horiz.))

Iris control

Manual Via camera body or RC-V100, fine, 1/2 or 1/3 step increments, Auto (with compatible lenses), Push Auto Iris

Image stabilization system

Depends on lens used

Recording

RAW Recording options

RAW (Cinema RAW Light)

Internal Recording

Cinema RAW Light, MP4

Recording time (CFast 2.0™card)

128GB card 15 Mins (4K Cinema RAW Light 1Gbps VBR)

Recording time (SD Card)

128GB card 110 mins (MP4, 150Mbps) 485Mins (MP4, 35Mbps)

Recording Formats

Cinema RAW Light, (CFast 2.0™¹) MP4 XF-AVC (SD card. XF-AVC²)

Recording Frame Rate

(1) 59.94 Hz mode (59.94P/29.97P/23.98P) (2) 50.00 Hz mode (50.00P/25.00P) (3) 24.00 Hz mode (24.00P)

Slow/Fast motion

YES

Interval Record

YES

Frame Record

YES

Pre Record (cache record)

YES, 3 seconds

Relay Recording

YES, SD Card recording only

Double Slot (simultaneous) Recording

YES, SD Card recording only

Scan Reverse

NO

HD->SD conversion

NO

Photo storage media

SD Card

Photo Recording Size

2048x1080 (when video image resolution is 4096x2160/2048x1080) 3840x2160 (when video image resolution is 3840x2160) 1920x1080 (when video image resolution is 1920x1080)

System

Wave Form Monitor

YES

Colour Bars

YES, SMPTE / EBU / ARIB

Peaking

YES

Zebra

YES. Zebra 1 Level 5 ±5% to 95 ±5% in 5 percentage point intervals (70 ±5%) Zebra 2 Level: 0% to 100% in 5 percentage point intervals (100%)

Markers

YES, Centre, Horizontal, Grid Aspect Ratio(4:3 / 13:9 / 14:9 / 16:9 / 1.375:1 / 1.66:1 / 1.75:1/1.85:1 / 1.90:1 / 2.35:1 / 2.39:1 / Custom), Safe Area (80% / 90% / 92.5% / 95%)

EVF

Built- In EVF

YES. 1.77M dots

Optional EVF Accessory

Canon EVF-V70 (Also requires CL-V2 bracket)

Display Panel

Display Panel

4 inch/10.1cm diagonal LCD Monitor. Touch panel. Approx., 1.23M dots

Canon CN-E 70-200mm T4.4 4K Lens Specifications

Mount EF
Image Coverage Super 35
Built-in extender None
Focal Length 70-200mm
Maximum Relative Aperture (T No.) 1:4.4 at 70-200mm (F No.) 1:4 at 70-200mm
Angular Field of View Aspect Ratio 1.78:1, Dimensions 24.6 x 13.8mm 19.9° x 11.3° at 70mm / 7.0° x 4.0° at 200mm Aspect Ratio 1.9:1, Dimensions 26.2 x 13.8mm 21.2° x 11.3° at 70mm / 7.5° x 4.0° at 200mm
M.O.D (from Image Plane ) 1.2m (4ft)
Object Dimensions at M.O.D. 31.3×17.5cm [at 70mm] 11.5×6.4cm [at 200mm] *1 33.3×17.5cm [at 70mm] 12.2×6.4cm [at 200mm] *2
Approx. Size (W×H×L) 93.4 × 107.2 × 182.3mm
Approx. Mass 1.25kg
