Canon DP-V2410 4K Reference Display

Item Code: TBA

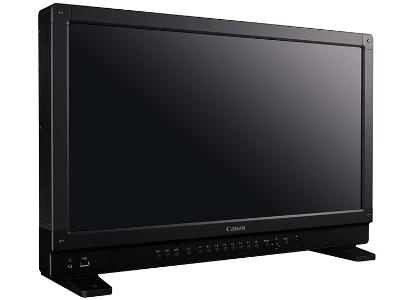

The Canon DP-V2410 4K Reference Display was designed with digital cinema production workflow and television broadcasting in mind. It's rugged construction & portable 24-inch size make it ideal for use as an on-set reference display.

RRP: 0   Save:

For purchasing information

The Canon DP-V2410 4K Reference Display was designed with digital cinema production workflow and television broadcasting in mind. This portable 24-inch reference display can be ideal for use as an on-set reference display in 4K cinema locations, and can be used for 4K-UHD television and commercial productions. The DP-V2410 display utilizes the same high image quality technology as the DP-V3010 display to deliver a consistent look throughout the entire workflow.

Featuring a Canon designed RGB LED backlight with a 10bit IPS panel for a wide-viewing angle; the DP-V2410 4K Reference Display also has an anti-glare coating. Utilizing a specially developed image-processing engine to help produce uniform brightness, the DP-V2410 4K Reference Display supports the cinema-standard 4096 x 2160 resolution and 17:9 aspect ratio while delivering accurate color, smooth gradation reproduction and deep blacks with DCI compliant contrast ratio of 2,000:1. Supporting Cinema EOS System Canon log/Canon Log2 gamma (log data) and HDR EOTF(Electro-Optical Transfer Function) recommended by the SMTPE 2084, the DP-V2410 can display high contrast and rich-mid tones of HDR (High Dynamic Range) content ordinary not visible to SDR (Standard Dynamic Range).

The DP-V2410 4K Reference Display’s advanced gamut mapping technology supports the next-generation ITU-R BT.2020, and ACESproxy (ACES 1.0) as well as accurate color reproduction of DCI- P3 (SMPTE PR 431-2) digital cinema standard the ITU-R BT.709, EBU, and SMPTE-C broadcast standards. The display can also de-bayer live 4K RAW video from the EOS C500 and EOS C300 Mark II Digital Cinema cameras, and supports 4K ACESproxy (ACES 1.0) to help maintain desired "looks" throughout the entire workflow process. Convenient on-screen display functions provide a range of shooting assistance tools, including Cinema EOS camera information, a waveform monitor, a vector scope, audio-level metering, and more.

Weighing just 26.4 lbs. and featuring a built-in easy set-up transport handle, integrated control panel, solid metal frame and inputs for 24V DC battery power or 100-240V AC, the DP-V2410 4K Reference Display offers high portability and multi-purpose use, whether for on-set live "video village" monitoring and color grading, for viewing dailies, or for use in post suites or mobile 4K UHD broadcast production-control rooms.

Specifications

PANEL
Panel Type IPS LCD Panel
SCREEN SIZE 24 inch (61.1 cm)
ASPECT RATIO 17:9
RESOLUTION 4096 x 2160 (8.8 megapixels)
ACTIVE DISPLAY AREA Approximately 21.2 x 11.2 in. (540.7 x 285.1 mm)
PIXEL PITCH 132 μm/193 ppi
PANEL DRIVER 1024 Gradations (10 bits for each color)
IMAGE QUALITY
BRIGHTNESS (STANDARD) 100 cd/m2
VIEWING ANGLE (UP, DOWN, LEFT, RIGHT) 89° (Contrast ratio 10:1 or higher)
SURFACE TREATMENT Anti-Glare
GENERAL
BACKLIGHT TYPE RGB LED, Direct Down Type
POWER Rated Voltage: 100 to 240V AC, 24V DC
Rated Frequency: 50/60 Hz
POWER CONSUMPTION At Maximum Load (including change in brightness through aging): 210 W
At Factory Shipment: Approx. 160 W
Temperature Range
(Operational)
32 - 104 °F (0 - 40 °C)
Recommended: 59 - 86 °F (15 - 30 °C)
Humidity Range
(Operational)
20 - 85% (no condensation)
Temperature Range
(Storage/Transport)
-4 - 104 °F (-20 - 40 °C)
105 - 140 °F (41 - 60 °C)
Humidity Range
(Storage/Transport)
10 - 85% (RH no condensation)
10 - 30% (RH no condensation)
Dimensions (W x H x D) Approx. 23.4 x 15.7 x 7.4 in. (594 x 399 x 187 mm)
Weight Approx. 26.4 lb. (12 kg)
Mounting Hole Pitch VESA Standard 3.9 x 3.9 in. (100 x 100 mm)

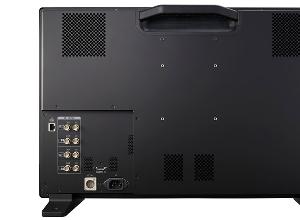

INTERFACE
INPUT
3G/HD - SDI 4 (1 system)
BNC (75Ω) Receptacle Connector
3G-SDI: SMPTE 2048-2/274M/296/372/425-1/428-19/428-9 compliant
HD-SDI: SMPTE 2048-2/274M/292-1/296/428-19/428-9compliant
HD-SDI Dual: SMPTE 2048-2/274M/372/428-19/428-9compliant
HDMI 1 (1 system)
HDMI 2.0 Type B Terminal
Copy protection: HDCP 2.2
OUTPUT
3G/HD - SDI 4 (pass-thru 1 system)
Headphone 1 Stereo Mini-Jack
USB 1
USB A Receptacle Terminal
Universal Serial Bus Specification Revision 2.0 Compliant LS (Low Speed)/FS (Full Speed)/HS (High Speed) Mode Compatible
Enhanced Host Controller Interface Specification Revision 1.0 compliant
LAN 1 RJ-45 Terminal
IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant
