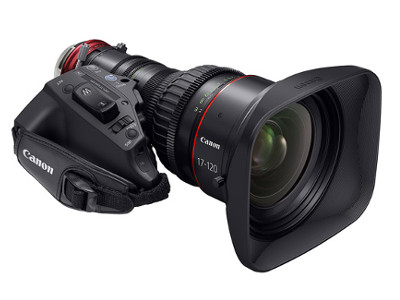

Canon CINE-SERVO 17-120mm T2.95 4K Zoom Lens

Item Code: CAN/CN7X17PL

The CINE-SERVO 17-120mm T2.95 lens provides cinematographers and broadcast operations with a compact, lightweight design (only 2.9kg) using Canon optical elements, while offering outstanding performance and reliability in professional shooting environments.

RRP: 0   Save:

For purchasing information

The CINE-SERVO 17-120mm T2.95 lens provides cinematographers and broadcast operations with a compact, lightweight design (only 2.9kg) using Canon optical elements, while offering outstanding performance and reliability in professional shooting environments.

The new lens is fully 4K-ready, with a high optical resolution and support for Super35mm large-format cameras. An 11-blade aperture diaphragm helps ensure an artistic and beautiful representation of out-of-focus areas (or “Bokeh”).

Lemac Tested & Approved

Lemac lens technician Neil O'Donnell was the first in Australia to lay hands on Canon’s highly anticipated new Cine-Servo 17-120mm T2.95 Zoom Lens, and it’s received the big tick of approval with stunning resolution - in our service department projection room, the lens delivered the highest resolution 200 line cycle meaning it is future proofed beyond 4k. This adds to Canon's very high quality range of cinema-capable zoom lenses designed for the age of digital cinematography, but with the ease of use and operational feel usually only associated with video zoom lenses.

Book a demo today

If you would like to organise a demonstration of the Canon CINE-SERVO 17-120, please click the button below, fill out your details and one of our sales staff will be in contact shortly.

The lens also features a high 7x zoom magnification, wide focal length range of 17mm to 120mm, and a 180º smooth rotating focus ring. Acknowledging that broadcasters often need to control zoom, focus and iris/aperture in different ways than filmmakers, Canon has developed this zoom lens with full external servo control for drama, documentary and other broadcast productions.

The servo drive unit is compatible with industry-standard protocols for control from a number of lens controllers including Canon’s standard broadcast lens controllers (ZSD-300D/FPD-400D) and multiple industry standard cinema lens controllers. The drive unit can be easily removed for cinema-style shoots and can be easily re-attached without any manual re-alignment. A 16-bit metadata output enables connection to virtual studio systems.

Available in Canon EF or PL mount, the lens can be converted at an authorized Canon service facility.

To enquire about rental of this item, click here.

Model Name CN7x17 KAS S/E1 17-120mm T2.95 EL-MOUNT
Mount EF / PL
Zoom Ratio 7x
Focal Length 17-120mm
Maximum Aperture T2.95 at 17-91mm / T3.9 at 120mm
Iris Blade 11
M.O.D (from Image Plane) 0.85m / 2.8'
Front Diameter Φ114mm
Approx. Size (WxHxL) 125.0 x 174.2 x 254.9mm
Approx. Mass 2.9kg
Pitch of Focus/Zoom/Iris Gear Focus: 0.8/0.5 Zoom: 0.5 Iris: 0.4
