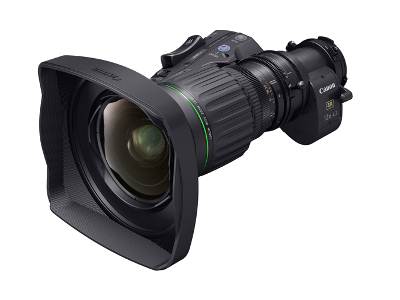

http://www.lemac.com.au/site/DefaultSite/filesystem/images/Canon/lenses/cj12ex43b-1b.jpg CJ12ex4.3B

This 4K portable wide-angle lens combines the ability to provide superb optical performance that supports 4K UHD broadcast production with an amazing 4.3mm wide angle capability that is ideally suited to creating panoramic 4K imagery.

SEARCH SHOP

Canon

Canon 4.3-52mm 4K UHD Lens

Item Code: TBC

CJ12ex4.3B

This 4K portable wide-angle lens combines the ability to provide superb optical performance that supports 4K UHD broadcast production with an amazing 4.3mm wide angle capability that is ideally suited to creating panoramic 4K imagery.

RRP: 0   Save:

For purchasing information

World's First 2/3-inch 4K Wide-Angle Portable Lens

The portable CJ12ex4.3B 4K UHD wide-angle lens offers the world's shortest focal length* of 4.3mm and the world's shortest minimum object distance (MOD)* of 30cm. This makes it possible to create images with extreme wide angles of view, with the shortest focal length for a 2/3" 4K lens. As such, this lens supports subsequent 1920 x 1080 cropping from the 3840 x 2160 camera output providing full HDTV quality. Alternatively, the camera output can be down sampled to provide an even higher HDTV image sharpness.

* Among compatible 2/3-inch 4K broadcast lenses available as of August 25th, 2015.

4K Optical Performance

The portable CJ12ex4.3B 4K UHD wide-angle lens was developed with high index optical glass materials, each having unique dispersion characteristics, helping to minimize chromatic aberrations and geometric distortion. Lens element surface accuracy has been improved significantly over HDTV lenses contributing to the enhanced Modulation Transfer Function (MTF) performance required of 4K imagery.

New multi-layer optical coatings combined with new deposition processes produce an outstandingly pristine optical imaging system. Aspheric lens elements are deployed to a greater extent in the larger diameter elements, contributing to far greater control over geometric distortion and aberrations - especially at the very wide angle settings. Three-part internal focus helps reduce changes in aberrations when focusing to different object distances, while also exercising tight control over any tendency for focus breathing. New, more powerful computer design tools facilitated a greater degree of optimization of multiple optical variables in the lens design.

4K Optical Performance with the Built-In 2x Extender

A particular challenge the portable CJ12ex4.3B 4K UHD wide-angle lens design is the built-in 2x optical extender. The insertion of that additional optical subsystem tends to exacerbate optical aberrations. Accordingly, Canon paid the highest attention to the optical design of this unit and as a consequence full 4K optical specifications are protected when the extender is switched in.

Applicability and Ease of Operation Ideal for 4K Shooting

Extensive use of 3D CAD-CAM design facilitated an innovative ergonomic design of the portable CJ12ex4.3B 4K UHD wide-angle lens that paid high attention to operator comfort and lessening of fatigue during protracted shooting. The Digital Drive Unit design takes into account the curved human hand that encompasses the unit, with a view of shaping the unit for greater comfort and to better facilitate the actuation of lens controls. The unit shape also provides a wider separation that allows the other hand to more easily adjust the focus control. The drive unit was narrowed and the mounting angle on the lens is set to allow the operator's elbow to settle close to the body, providing an important reduction in fatigue when operating a shoulder mounted lens-camera system.

The special magnesium alloy body was optimized for light weight (a mere 2.1kg) and exceptional durability. Computer simulation of the optomechanical design allowed examination of optimized anti-reflection internal barrel coatings, and structural techniques (light blocking grooves and knife edges) that produced greater control over harmful light reflections within the lens barrel that can be stimulated by strong light sources.

Compatible with HD Lens Systems

The portable CJ12ex4.3B 4K UHD wide-angle lens utilizes the same standard controllers for zoom and focus operations that have been optimized over decades of Canon HDTV lens developments. The lens also uses the standard Canon 20-pin connector that provides an interface for the digital precision positional information of the zoom, focus, and iris operations required by many external virtual systems

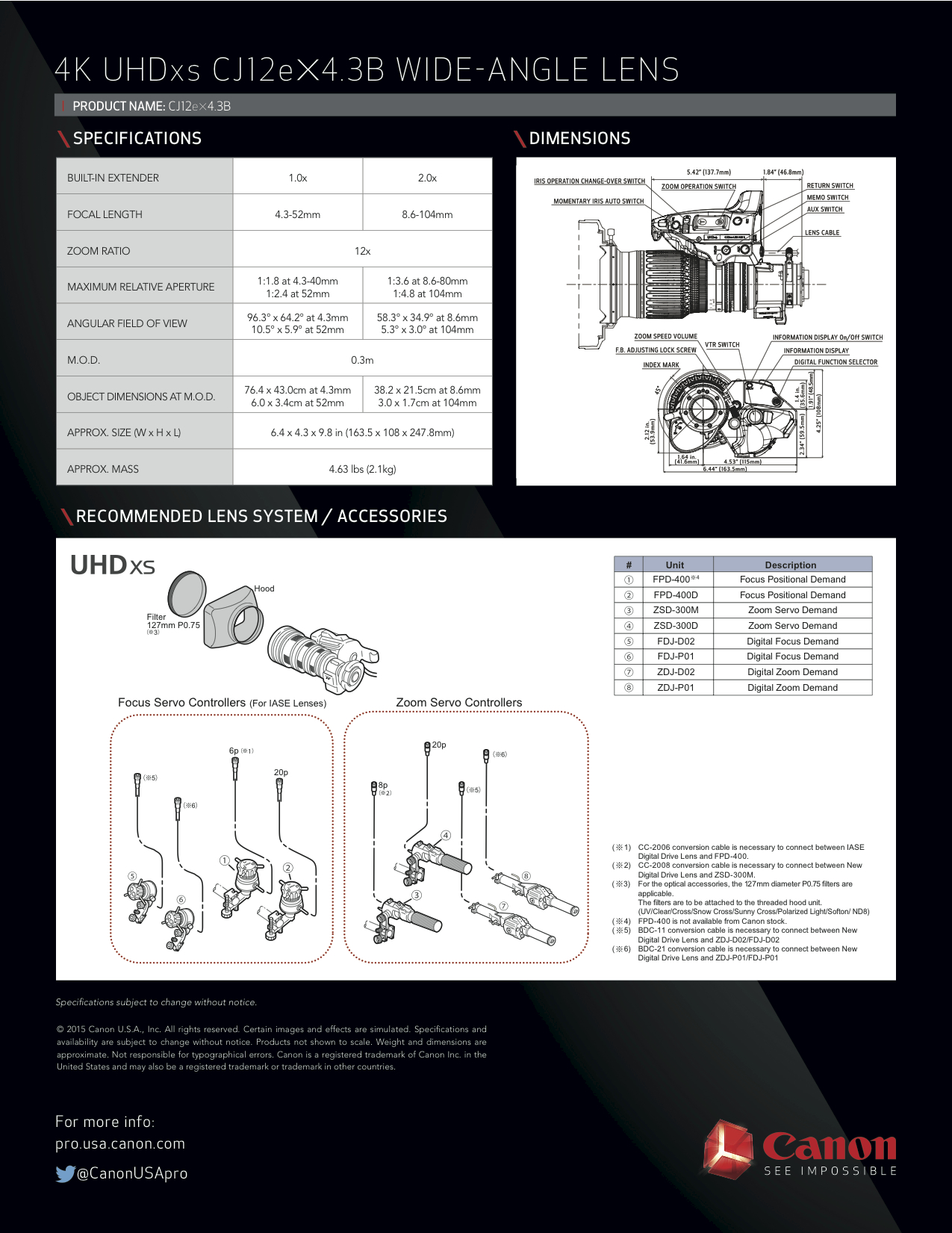

Brochure available here

Product

Product Category ENG Lens
Product Series CJ12ex4.3B

Image Composition

Object Image Format 2/3 inch
Aspect Ratio 16:9
Zoom Ratio 12X
Focal Length Range 4.3 ~ 52mm
Focal Length Range with Extender 8.6 ~ 104mm (with 2x Extender)
Angular Field of View 96.3° × 64.2° at 4.3mm10.5° × 5.9° at 52mm
Angular Field of View with Extender 58.3° × 34.9° at 8.6mm (with 2x Extender)
5.3° × 3.0° at 104mm (with 2x Extender)

Optical Brightness

Maximum Relative Aperture (F-Number) 1:1.8 at 4.3 ~ 40mm1:2.4 at 52mm
Maximum Relative Aperture (F-Number) with Extender 1:3.6 at 8.6 ~ 80mm (with 2x Extender) 1:4.8 at 104mm (with 2x Extender)

Scene Composition

MOD From Front of Lens 0.3 Meter
Scene Object Dimensions at MOD 76.4 × 43.0cm at 4.3mm6.0 × 3.4cm at 52mm
Scene Object Dimensions at MOD with Extender 38.2 × 21.5cm at 8.6mm (with 2x Extender)3.0 × 1.7cm at 104mm (with 2x Extender)

Physical Attributes

Width 163.5mm (6.4in)
Height 108mm (4.3in)
Dimensions 247.8mm (9.8in) = length
Weight 2.1kg (4.63lbs)
