The Zenith wireless system is designed for wireless ENG and HD live productions where range and signal reliability are essential. The Zenith Portable Transmitter is designed to mount on the back of a camera using either a V-mount or Anton Bauer battery plate.

SEARCH SHOP

Boxx

Boxx Zenith Transmitter

Item Code:

The Zenith wireless system is designed for wireless ENG and HD live productions where range and signal reliability are essential. The Zenith Portable Transmitter is designed to mount on the back of a camera using either a V-mount or Anton Bauer battery plate.

RRP: 0   Save:

For purchasing information

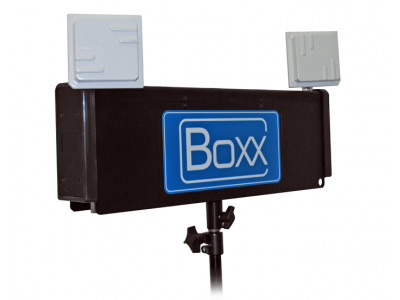

The Zenith wireless system is designed for wireless ENG and HD live productions where range and signal reliability are essential. The unique network capability of the system allows for an almost infinite shooting area by deploying inexpensive receiver nodes wired with Category-5 cabling.

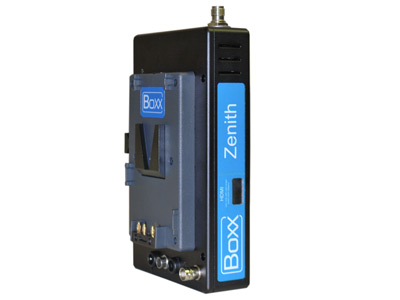

The Zenith Portable Transmitter is designed to mount on the back of a camera using either a V-mount or Anton Bauer battery plate. The transmitter comes complete with a variety of accessories allowing for either a roaming camera configuration or a fixed point-to-point transmission.

The bandwith is adjustable (between 5-40MHz) and one of the strengths of the Zenith system is its ability to navigate around interference when operating in “wide-bandwith mode” making the link robust and extremely stable.

Zenith is fully configurable via a Web interface and statistics can be monitored on portable devices (such as an iPhone©) allowing the operator the flexibility to configure the system for optimal HD wireless transmission within any environment.

Zenith provides a scalable modular solution allowing trade offs between budget and performance.

Key Features

  • 90 milliseconds latency
  • 5.1 - 5.9GHz licence-exempt band
  • Range from camera back transmitter up to 1km
  • Range (point-to-point) up to 20km
  • 2 - 14Mb encoding bitrate
  • Configure and monitor statistics via web page using a laptop or other popular portable device
  • Secure encrypted transmission
  • Dimensions: 100mm x 30mm x 190mm
  • Weight: 0.8 kg approx
