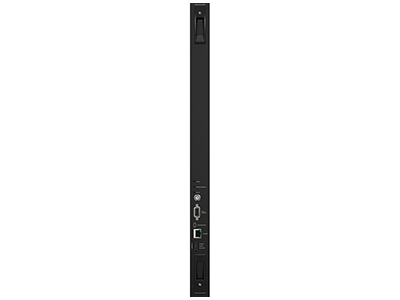

Blackmagic Universal Videohub 288 Crosspoint

Item Code: NMA/VHUBUV/72CH

Compatible with the Blackmagic Universal Videohub 288 customisable rack frame, the Blackmagic Universal Videohub 288 Crosspoint supports up to 288 x 288 SDI and 288 x 288 deck control, ethernet/serial router crosspoint control, genlock, alarm GPI and alarm indictors.

RRP: 0   Save:

  • Qty:
  • Price:
    $12,680.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Compatible with the Blackmagic Universal Videohub 288 customisable rack frame, the Blackmagic Universal Videohub 288 Crosspoint supports up to 288 x 288 SDI and 288 x 288 deck control, ethernet/serial router crosspoint control, genlock, alarm GPI and alarm indictors.

Key Features

  • Tri-Sync or Blackburst, for external reference (BNC)
  • RS-422 port for connecting to third-party control systems
  • USB 2.0 for connecting to a host Windows or Mac OS X computer
  • Ethernet connection to your local network and Videohub Smart Control
  • GPI Alarm connector

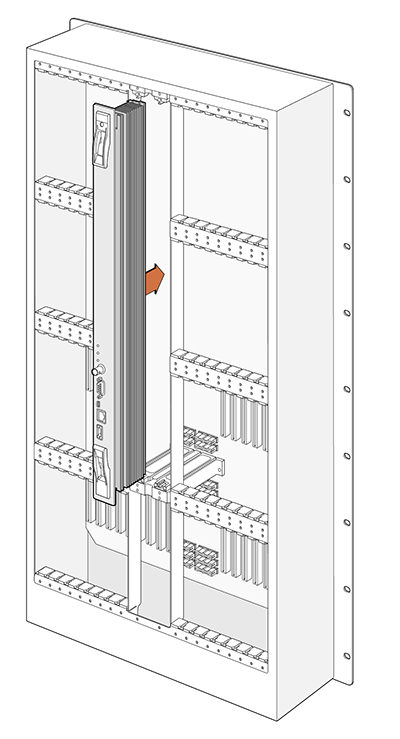

  • Easy to use handles for removal and insertion of the card module

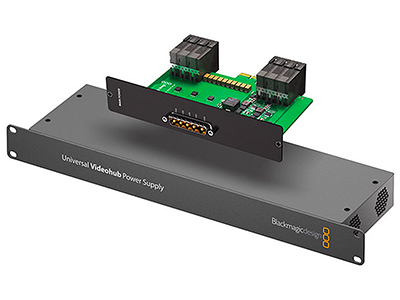

  • 800W main and backup power supply connections

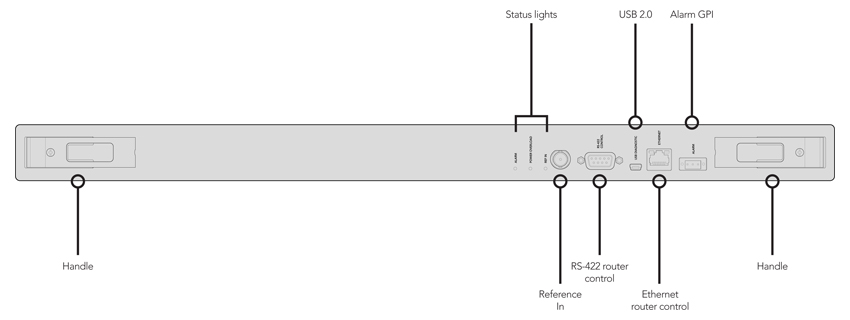

Connection Diagram
