Blackmagic UltraStudio SDI

Item Code: NMA/BDLKULSASDI

Get an attractive, portable and fully machined aluminum design that looks great on your desktop or on location shoots. UltraStudio SDI includes SDI capture and playback, as well as a built in HDMI output for affordable local monitoring using a low cost television as a broadcast monitor.

RRP: 0   Save:

  • Qty:
  • Price:
    $510.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Get an attractive, portable and fully machined aluminum design that looks great on your desktop or on location shoots. UltraStudio SDI includes SDI capture and playback, as well as a built in HDMI output for affordable local monitoring using a low cost television as a broadcast monitor. It also includes genlock and RS-422 deck control. UltraStudio SDI powers from the USB 3.0 connection so it is an extremely easy to install and very portable solution.

UltraStudio for USB 3.0

Get incredible quality capture and playback for your USB 3.0 computer!

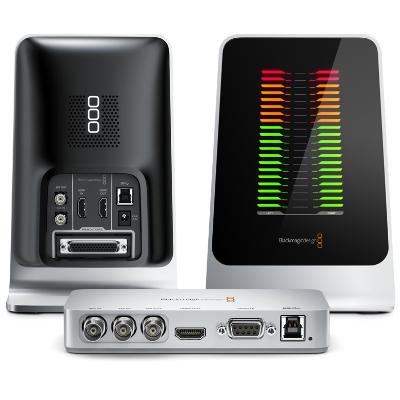

UltraStudio Pro and UltraStudio SDI are the world’s first capture and playback solutions for USB 3.0. Get all the advantages of   USB plug and play connectivity and the highest quality SDI connections that instantly switch between all SD and HD video formats. Work with full broadcast quality 10-bit video in compressed and uncompressed quality, perfect for editing, design and visual effects in the most demanding broadcast and post production environments.

Capture Video Anywhere!

UltraStudio is perfect where you need to capture and play back the highest quality uncompressed and compressed video. With support for all the major SD/HD video standards, UltraStudio is a true broadcast performance editing solution that is miniaturized into a choice of two incredibly small designs. Capture from video cameras, live video feeds, decks and more! With UltraStudio’s built in HDMI output you can monitor in full resolution on LCD and plasma displays, or even with a HD projector.

Professional Video Connections

Connect to virtually any video device

With the highest quality 10-bit SDI video connections, UltraStudio SDI is perfect when all you need is capture and playback with professional SDI equipment. The HDMI output lets you connect to low cost monitors and the unit is powered by the USB 3.0 connection for true portability. UltraStudio Pro lets you connect to virtually any video device. Built-in SDI and HDMI input and outputs are combined with a long 7 foot breakout cable for analog component YUV, S-Video and composite video plus 2 channel AES/EBU, 4 channel XLR analog audio, down converted SD-SDI output, blackburst/tri-sync reference and deck control. Perfect for connecting to cameras, monitors, televisions, video projectors or broadcast decks such as HDCAM, HD-D5, HDCAM SR, Betacam SP, Digital Betacam, and more!

SuperSpeed USB 3.0™

4.8 Gb/s connection that is 6x faster then FireWire 800!

UltraStudio SDI and UltraStudio Pro are designed to work with high performance SuperSpeed USB 3.0 laptop and workstation computers. Get all the advantages of USB plug and play connectivity with a 4.8 Gb/s connection. USB 3.0 SuperSpeed is 10 times faster than USB 2.0 and 6 times faster than FireWire 800! Super Speed USB 3.0 has become the standard on most modern computers so there are hundreds of solutions to build your dream editing studio!

Broadcast Quality

Perfect for editing, keying, VFX and color correction.

UltraStudio features super low jitter 3G-SDI connections, so it’s become a popular choice by major broadcast networks. You get both compressed and uncompressed video capture at broadcast quality 10-bit 4:2:2 YUV. Only uncompressed video captures every bit of every pixel for an exact mirror image between capture and playback. Working with the highest quality uncompressed video is perfect for editing, sharp keying with green screens, VFX compositing and color correction!

Use your favorite software

Work with all your favorites.

For Windows you get access to a massive range of software because UltraStudio supports WDM, DirectShow and QuickTime! For editing you can use Avid Media Composer, Avid News Cutter, Adobe® Premiere Pro® CC, Sony Vegas Pro, Corel VideoStudio, CyberLink Power Director and MAGIX Video Pro. For visual effects use After Effects® CC, The Foundry Nuke and Photoshop® CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast and Livestream Procaster.

Specifications

Connections
SDI Input 1x 10-bit SD/HD switchable
SDI Output 1x 10-bit SD/HD switchable
HDMI Output Connector 1x HDMI type A
SDI Audio Input 8 channels embedded in SD and HD
SDI Audio Output 8 channels embedded in SD and HD
HDMI Audio Output 2 channels embedded in SD and HD
Computer Interface USB 3.0
Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format
Device Control Sony-compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control
Standards
SD Format Support 625/25 PAL, 525/29.97 NTSC, and 525/23.98 NTSC
HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, and 1080i60
SDI Compliance SMPTE 259M and SMPTE 292M
SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning
Video Sampling 4:2:2
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Color Precision 10-bit
Color Space REC 601, REC 709
HDMI Color Precision 10-bit
HDMI Resolution Pixel-for-pixel HD resolution input to connected device
HDMI Configuration HDMI automatically configures to connected display
Multiple Rate Support SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI
Copy Protection For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Processing
Colorspace Conversion Hardware-based real time
HD Down Conversion Software-based down conversion during video playback
HD Up Conversion Real-time standard definition to 1080HD and 720HD during video capture
HD Cross Conversion Real time 720 HD to 1080 HD during video capture
Real-Time Effects Adobe Premiere Pro Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD, XDCAM, XDCAM HD, and uncompressed.
Extras
Software Media Express, Disk Speed Test, Blackmagic Control Panel, and Blackmagic driver on Windows
Firmware Upgrade Firmware built into software driver. Loaded at system start or via updater software
Minimum System Requirements Compatible with Microsoft Windows 7. Requires a computer with onboard USB 3.0, or a USB 3.0 PCI Express 2.0 card. Does not support USB 2.0 capture and playback
