Blackmagic

Blackmagic Mini Converter Heavy Duty Analog to SDI

Item Code: NMA/CONVMHDUTYASA

Mini Converter Heavy Duty Analog to SDI includes everything you need to convert from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video, with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes and HDV cameras to SDI video, all in a compact and super tough converter machined from a solid block of aluminum.

RRP: 0   Save:

  • Qty:
  • Price:
    $450.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Mini Converter Heavy Duty Analog to SDI includes everything you need to convert from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video, with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes and HDV cameras to SDI video, all in a compact and super tough converter machined from a solid block of aluminum.

Mini Converter Heavy Duty Family

Get a super tough SDI converter for the toughest environments. Mini Converter Heavy Duty models give you the highest quality SDI conversion in a super tough design that's perfect for use on location. Each converter is machined from a solid block of aircraft grade aluminum, and can withstand being run over by the largest OB vehicle. Heavy Duty models are built to the highest broadcast standards and automatically switch between SD, HD, 3G-SDI and up to 6G-SDI formats. With low SDI jitter and SDI re-clocking you can use the longest SDI cable lengths.

Designed For Live Production

Outside broadcast, news gathering and live events are demanding production environments where equipment gets tested to its limits. Mini Converter Heavy Duty models are packed with features to withstand daily use on location. Get a choice of models that convert between SDI and HDMI for connecting to low cost cameras and monitors, and SDI and analog when you need to connect to older decks and video equipment.

Work On Location

With low SDI jitter and SDI re-clocking you can use the longest lengths of SDI cable at live events and outside broadcasts without any loss of video quality. Relevant Heavy Duty models also feature a redundant input, so you can run a second cable as a back up. If the main SDI input is lost, the converter automatically switches over to the alternative input. This feature is great for outdoor use or in venues where working amongst large crowds may result in cable damage.

Standard Audio Connections

Mini Converter Heavy Duty uses standard 1/4” audio jacks for connecting balanced analog or AES/EBU digital audio, so you never need to buy custom audio cables! Audio from mixers and analog decks can be embedded into the SDI video signal.

Heavy Duty Design

Each heavy duty converter is precision machined from a solid block of aircraft grade aluminum, designed to resist damage caused by rough handling in live production and outdoor use. Connections are recessed and protected by the aluminum chassis.

Broadcast Quality Video

Mini Converter Heavy Duty models are ideal for all broadcast, post production and professional AV applications. You get support for a wide range of SD/HD up to Ultra HD video formats and the built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video.

Easy Settings Control

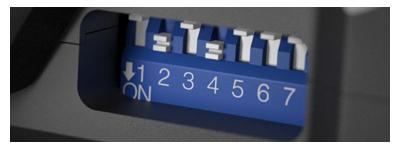

Changing Mini Converter’s built-in mini switch settings can be done with a pen, a small screwdriver or any similar object. This is great when you need to change settings quickly on location, as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software by connecting the converter to any Mac OS X or Windows computer! All models can be updated via USB 2.0 by simply downloading software upgrades from the Blackmagic Design website.

Specifications

Input 3x BNC for (1) component (HD/SD), NTSC & PAL (composite), or S-Video signal
2x 1/4" jacks for either (2) channels of balanced analog audio or (1) stereo AES/EBU connection
Output 2x BNC for (2) SDI (switchable between SD, HD & 3 Gb/s SDI)
Multi-Rate Support Auto detection of HD or SD analog input
Computer Interface USB 2.0 (480 Mb/s) for updates and configuration
Re-clocking Yes
SDI Format Support 625i25 PAL, 525i29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080Ps/F25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60 (connections automatically switch between SD, HD, and 3G)
Analog Format Support 625i25 PAL, 525i29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
Sampling SDI Video: 4:2:2
SDI Audio: Television standard sample rate of 48 kHz and 24 bit
Color Precision SDI/Analog: 4:2:2
Color Space SDI/Analog: YUV
Copy Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert, or transmit video or audio from copy-protected sources, e.g., video devices using HDCP
Software Control Mac OS X and Windows software upgrade via USB
Settings Control Mini-switches or via USB & software
Firmware Upgrade Via included firmware updater application
Power Requirement 12V DC (power supply included)
Power Consumption 110V: 67 mA
220V: 34 mA
Dimensions (HxWxD) Not specified by manufacturer
Weight Not specified by manufacturer
