Blackmagic Intensity Shuttle for USB3.0

Item Code: NMA/BINTSSHU

Intensity Shuttle for USB 3.0, the world’s first 10 bit HD/SD editing solution for USB 3.0 computers! Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback

RRP: 0   Save:

  • Qty:
  • Price:
    $255.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Intensity Shuttle for USB 3.0

Intensity Shuttle for USB 3.0, the world’s first 10 bit HD/SD editing solution for USB 3.0 computers! Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback.

Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle powers from the USB 3.0 connection so you don’t need cumbersome power supplies. Intensity Shuttle comes ready with advanced video technology such as HDMI and 1080p electronics, so it will grow as faster high performance USB 3.0 computers are released in the future!



The Intensity Range - Overview

Incredible quality HDMI capture and playback!

Intensity lets you capture and playback in the most incredible quality HDMI and component analog video in both SD and HD. Smash the quality barrier for your video work because Intensity is not only the highest quality, but also affordable! Intensity features all the video connections you need to connect to video cameras, set-top boxes, game consoles, large screen TVs and projectors. Intensity is available in a choice of models featuring PCI Express, USB 3.0 or lightning fast Thunderbolt™technology! From $199

Highest Quality Video

Most consumer video cameras compress HD video to fit longer recordings on to tape and discs. For video editing compressed media needs to be decoded to play back each frame of video and this puts additional strain on your computer's CPU and limits real time editing effects. Capturing directly with Intensity bypasses camera compression by recording directly from the camera's image sensor, so a low cost consumer camera can be used to capture full HD resolution video in broadcast quality!

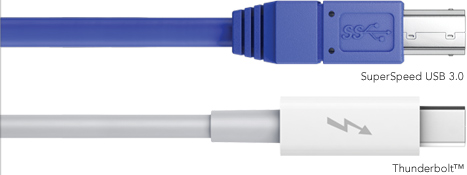

PCI Express, USB 3.0 or Thunderbolt™

It’s easy to add the amazing quality of Intensity to your laptop, desktop or computer workstation! Intensity is available in different models that connect to computers with the fastest PCIe, USB 3.0 or Thunderbolt™technology. Intensity uses the latest USB 3.0 and Thunderbolt™technology with the fastest data transfer speeds. Now you can capture the highest uncompressed 1080HD video with portable devices that are powered from the computer connection! That's truly portable!

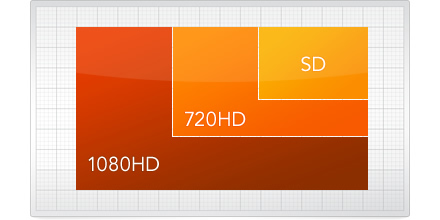

Professional Video Standards

Intensity offers the flexibility of working with compressed and uncompressed video in standard definition PAL/NTSC up to full 1080HD video. Now it’s possible to capture live game play, archive family movies and create amazing videos in full broadcast quality video! Blackmagic Design’s Media Express software is included for a complete capture and playback solution without the need for any additional software.

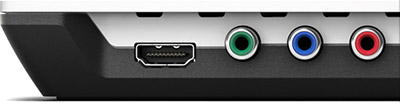

True HDMI Digital Connections

Intensity features the highest quality HDMI connections that are the worldwide standard for consumer digital video equipment. HDMI connects full HD video quality and digital audio to TVs and more.

Highest Quality Analog Connections

All Intensity models feature RCA connectors so you can use all types of analog video and audio equipment. Get full compatibility with analog component, composite and S-Video, in NTSC or PAL and with analog audio.

Use Popular Video Software

Video files are fully compatible with popular editing and design software including Apple Final Cut Pro, Adobe®Premiere Pro®CC, Avid Media Composer, Photoshop®CC and After Effects®CC.

Record your Game Play!

Connect Intensity to game consoles for amazing live action game play recording! Intensity features the same high quality electronics as Blackmagic Design’s high end broadcast capture and playback solutions! Now you can capture live game play with full quality and full motion without dropped frames. Archive your gaming forever in digital file formats that are easy to edit, store and playback.

Specifications

Connections
Analog Video Input Independent connections for component and composite and s-video.
Analog Video Output Independent connections for component and composite and s-video.
HDMI Video Input 1 x HDMI type A connector
HDMI Video Output 1 x HDMI type A connector
Analog Audio Input 2 Channel RCA HiFi audio in 24 bit.
Analog Audio Output 2 Channel RCA HiFi audio in 24 bit.
HDMI Audio Input 8 Channels.
HDMI Audio Output 8 Channels.
SPDIF Audio Output None
Dual Rate support HDMI and Analog Component switches between high definition and standard definition.
Device Control None. FireWire may be used for controlling some cameras.
Supported HDMI Formats 525 NTSC, 625 PAL, 720HD and 1080HD switchable.
Computer Interface USB 3.0
Standards
SD Format Support 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p.
HD Format Support 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94 and 720p60.
HDMI Video Sampling 4:2:2
HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Space YUV 4:2:2
HDMI Color Precision 4:2:2
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Colorspace Conversion Hardware based real time.
HD Down Conversion Software based down conversion during video playback.
HD Up Conversion Real time standard definition to 1080HD and 720HD during video capture.
Real Time Effects Adobe® Premiere Pro® CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Extras
Software Included Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver.
Internal Software Upgrade Firmware built into software driver. Loaded at system start, or via updater software.
Physical Installation USB 3.0. Requires an x58 based motherboard with onboard USB 3.0, or a USB 3.0 PCI Express card and an x58 or P55 series motherboard. Does not support USB 2.0 capture and playback. Please check the Support pages to see the full system requirements.
Operating System Compatibility Windows 7
Product Warranty 12 Months Limited Warranty.
